Transmission Fluid Cooler Tubes: Notes

Special Tools

Illustration	Tool Name	Tool Number
	Disconnect Tool, Transmission Cooler Line	307-569

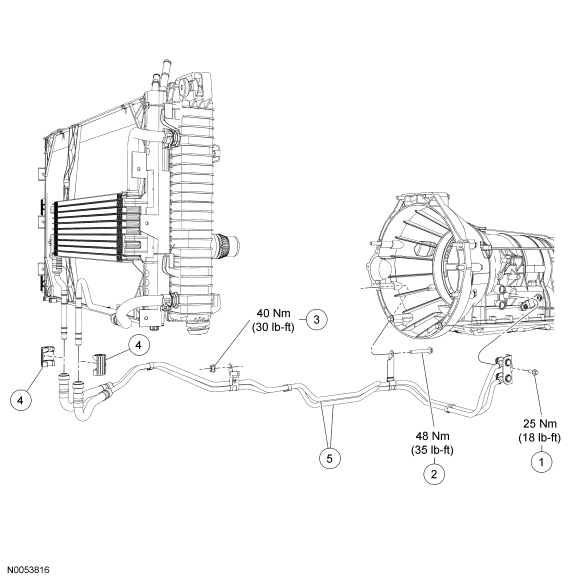

Fig 1: Exploded View Of Transmission Fluid Cooler Tubes With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W500023-S439	Transmission fluid cooler tube bracket bolt
2	-	Transmission fluid cooler tube bracket bolt at transmission
3	W707014-S441	Transmission fluid cooler tube bracket nut
4	7J081	Transmission fluid cooler inlet and outlet tube secondary latches
5	7H420	Transmission fluid cooler inlet and outlet tubes
