Crankshaft Pulley: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Installer, Crankshaft Vibration Damper | 303-102 (T74P-6316-B) | |
| Remover, Crankshaft Vibration Damper | 303-009 (T58P-6316-D) |
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |
| Motorcraft SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP (US); Motorcraft SAE 5W-20 Super Premium Motor Oil CXO-5W20-LSP12 (Canada); or equivalent |
WSS-M2C930-A |
| Silicone Gasket and Sealant TA-30 |
WSE-M4G323-A4 |
| Silicone Gasket Remover ZC-30 |
- |

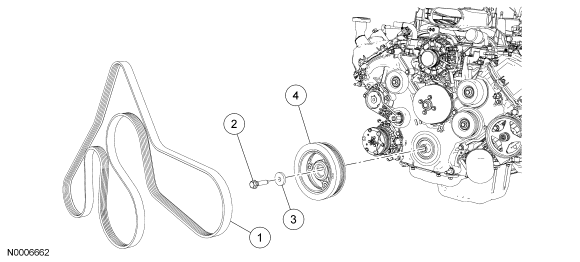

| Item | Part Number | Description |
|---|---|---|
| 1 | 8620 | Accessory drive belt |
| 2 | W701512 | Crankshaft pulley bolt |
| 3 | N806165 | Crankshaft pulley bolt washer |
| 4 | 6316 | Crankshaft pulley |
