Safety Belt Retractor - Rear: Notes

Special Tools

Illustration Tool Name Tool Number
GF0004832
 Torx Bit, Safety Belt Bolt 501-010 (T77L-2100-A)

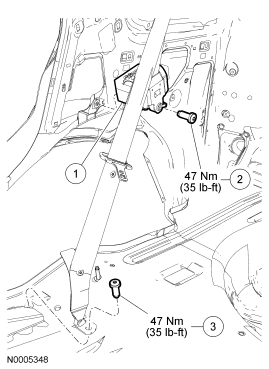

Fig 1: Exploded View Of Rear Safety Belt Retractor With Torque Specifications
GF0023920Courtesy of FORD MOTOR CO.
Item Part Number Description
1 611B68A Rear safety belt retractor
2 N807750-S190 Rear safety belt retractor bolt
3 N807750-S190 Rear safety belt retractor anchor bolt
