Safety Belt Buckle and Pretensioner: Notes

NOTE: Driver seat safety belt buckle pretensioner shown, passenger side similar.

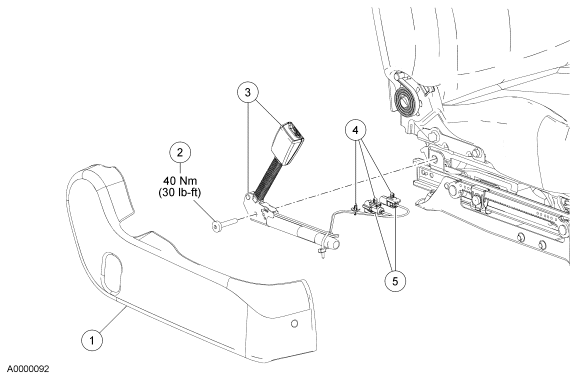

Fig 1: Exploded View Of Safety Belt Buckle & Pretensioner With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	62187B	Seat cushion side shield
2	-	Safety belt buckle and pretensioner bolt
3	61203B	Safety belt buckle and pretensioner
4	-	Pin-type retainers
5	-	Safety belt buckle and pretensioner connectors (part of 61203B)
