Function Selector Switch Assembly Connector

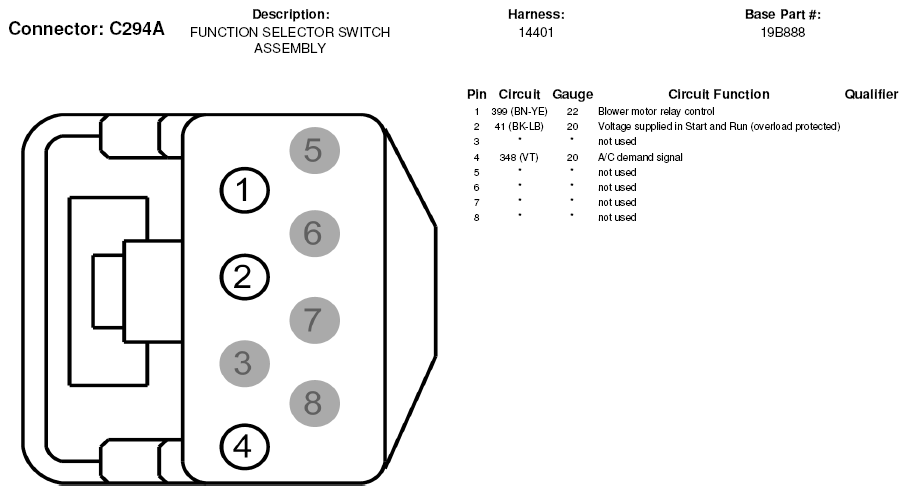

Fig 1: Function Selector Switch Assembly Connector End View (C294A)
G05178397Courtesy of FORD MOTOR CO.

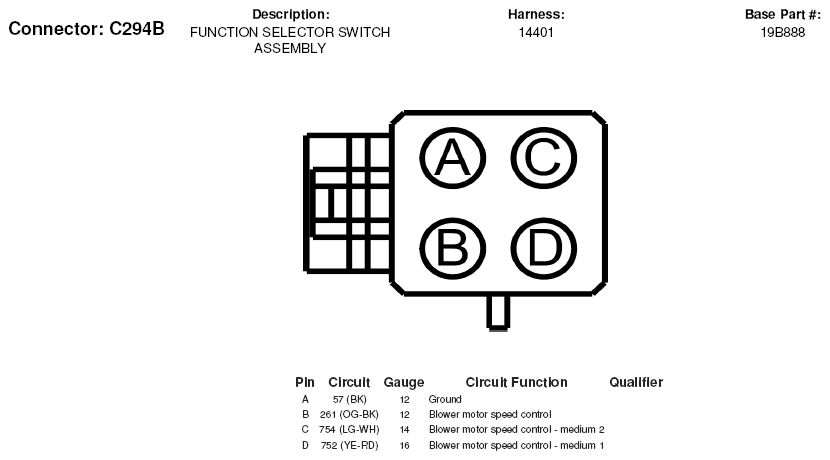

Fig 2: Function Selector Switch Assembly Connector End View (C294B)
G05178398Courtesy of FORD MOTOR CO.

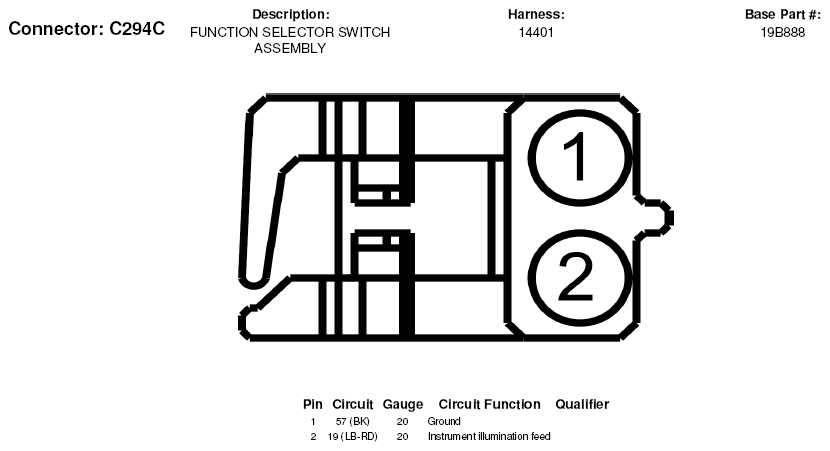

Fig 3: Function Selector Switch Assembly Connector End View (C294C)
G05178399Courtesy of FORD MOTOR CO.
