Selector Lever: Notes

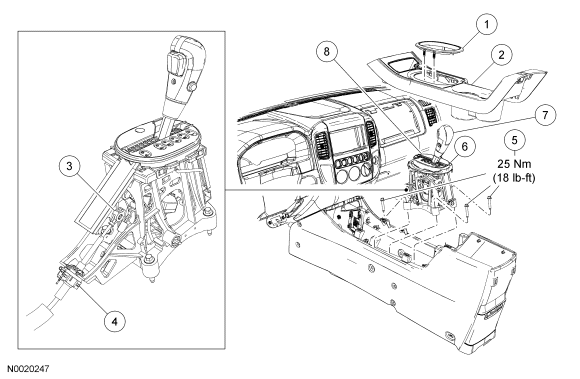

Fig 1: Exploded View Of Selector Lever Assembly With Torque Specifications
GF0025276Courtesy of FORD MOTOR CO.
Item Part Number Description
1 78061A16 Trim ring
2 78045G70 Top finish panel
3 - Selector lever cable end (part of 7E395)
4 - Selector lever cable retainer (part of 7E395)
5 W503298 Selector lever-to-floor bolt
6 7K004 Selector lever assembly
7 7L010 Knob
8 7E034 Bezel
