Automatic Transmission - Cd4E: Assembly: Transaxle: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Adapter for 307-304 | 307-304-01 (T94P-77000-R2) (17-057-01) | |
| Adapter for 307-304 | 307-304-02 (T94P-77000-R3) (17-057-02) | |
| Adapter for 307-304 | 307-304-03 (T94P-77000-R4) | |
| Air Test Plate, Transmission | 307-301 (T94P-77000-S) (17-056) | |
| Aligner, Pump Housing | 307-076 (T80L-77100-A) | |
| Alignment Gauge, TR Sensor | 307-351 (T97L-70010-A) | |
| Alignment Pins, Valve Body | 307-299 (T94P-77700-N) | |
| Depth Micrometer | 303-D026 (D80P-4201-A) | |
| End Play Gauge, Transmission | 307-519 | |
| Handle, Torque Converter | 307-091 (T81P-7902-C) | |
| Holding Fixture, Transmission | 307-003 (T57L-500-B) | |
| Holding Fixture, Transmission | 307-288 (T94P-7700-F) | |
| Installer, Halfshaft Output Fluid Seal | 307-157 (T86P-1177-B) | |
| Installer, RH Halfshaft Fluid Seal | 307-428 | |
| Installer, Shift Shaft Fluid Seal | 307-002 (TOOL-77288) | |
| Installer, Torque Converter Fluid Seal | 307-273 (T94P-77000-C) (17-052) | |
| Protector, Piston Seal | 307-280 (T94P-77000-D1) (17-060-01) | |
| Protector, Piston Seal | 307-284 (T94P-77000-D5) (17-060-05) | |
| Remover/Installer, Servo Cover | 307-295 (T94P-77000-L) | |
| Selector, Servo Piston Rod | 307-S296 (T94P-77000-M) (17-059) | |
| Shim Selection Depth Gauge | 307-300-01 (T94P-77000-T) (17-055-01) | |
| Shim Selection Gauge | 307-300 (T94P-77000-Q) (17-055) | |
| Shim Selection Preload Plate | 307-304 (T94P-77000-R1) (17-057) | |
| Test Plate Screw Set, Transmission | 307-126 (T82P-7006-C) |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |
| Multi-Purpose Grease XG-4 and/or XL-5 |
ESB-M1C93-B |

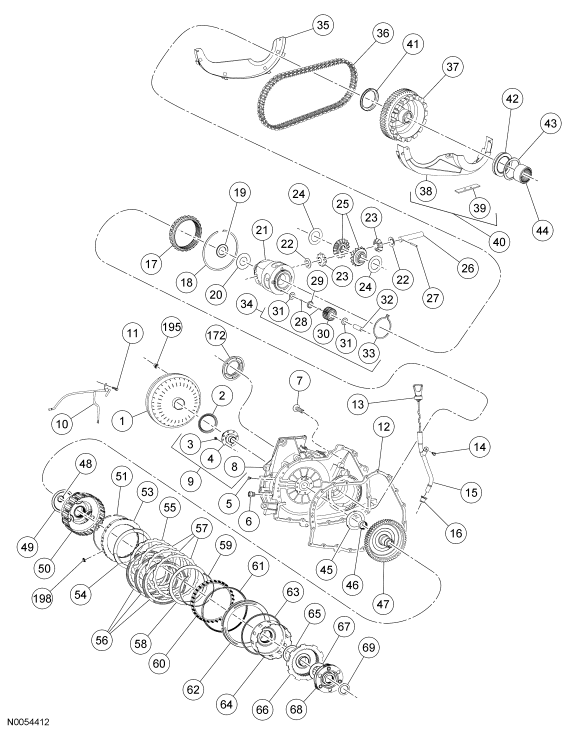

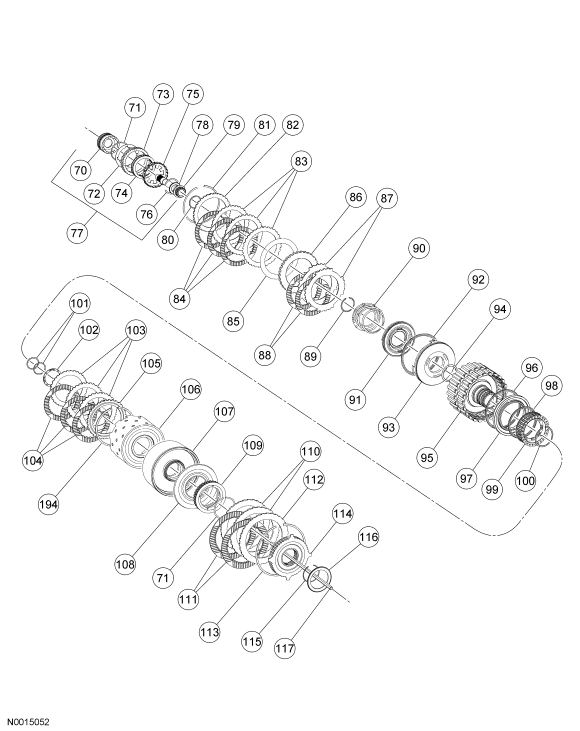

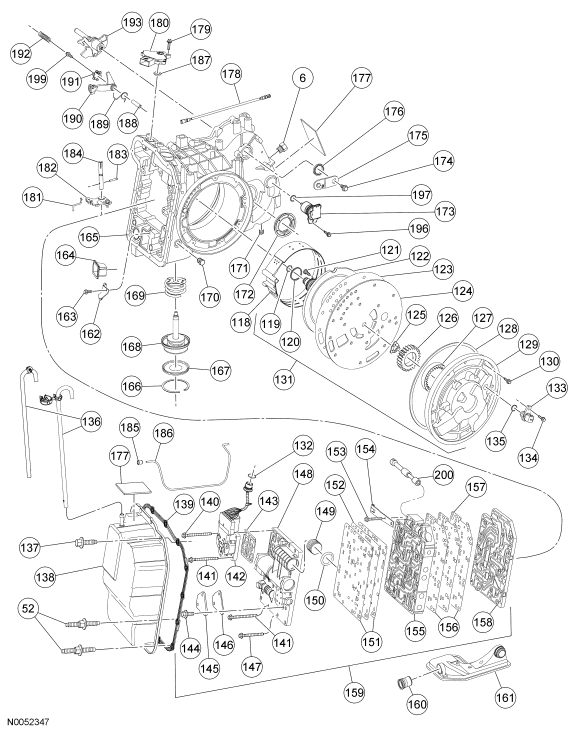

| Item | Part Number | Description |
|---|---|---|
| 1 | 7902 | Converter assembly |
| 2 | 7F401 | Seal assembly - converter impeller hub |
| 3 | N807098-S437 | Bolt - M6-1.0 x 16 pan Torx® head |
| 4 | 7F363 | Support assembly - stator |
| 5 | 7A137 | Pipe plug - 1/8-27 dry seal |
| 6 | 7D273 | Connector assembly - cooler line fitting |
| 7 | N605908-S105 | Bolt - M8-1.25 x 38 hex flange head (attaches case to converter housing) |
| 8 | 7975 | Converter housing assembly - transaxle |
| 9 | 7005 | Converter housing - case |
| 10 | 7H207 | Tube assembly - differential lube |
| 11 | N605891-S102 | Bolt - M6-1.0 x 18.5 hex flange head |
| 12 | 7B333 | Gasket - transaxle split flange |
| 13 | 7A020 | Indicator assembly - fluid level |
| 14 | W500215-S439 | Bolt - M6-1.0 x 19.25 hex flange head |
| 15 | 7A228 | Tube assembly - fluid filler |
| 16 | 7N243 | Grommet - fluid filler tube |
| 17 | 7F343 | Gear - final drive |
| 18 | 7H106 | Ring - final drive retaining |
| 19 | 4221 | Bearing assembly - differential carrier (No. 15) |
| 20 | 4067 | Shim - differential bearing (selective fit No. 14) |
| 21 | 4204 | Case assembly - differential gear |
| 22 | 4230 | Washer - rear axle differential pinion |
| 23 | 4215 | Gear - differential pinion |
| 24 | 4228 | Washer - differential side gear thrust |
| 25 | 4236 | Gear - differential side |
| 26 | 4211 | Shaft - differential pinion |
| 27 | 67847-S | Pin - coiled spring (attaches differential pinion shaft) |
| 28 | 7G216 | Bearing - final drive planet gear needle |
| 29 | 7G217 | Spacer - final drive planet gear |
| 30 | 7G214 | Gear - final drive planet |
| 31 | 7G215 | Washer - final drive planet gear |
| 32 | 7G213 | Shaft - final drive pinion |
| 33 | W706051-S | Ring - 77.3 retaining, external (retains pinion shaft in 7F465) |
| 34 | 7F465 | Planet and carrier assembly - final drive |
| 35 | 7H245 | Pan - chain cover |
| 36 | 7G249 | Chain assembly - drive |
| 37 | 7G132 | Sprocket assembly - driven |
| 38 | 7H245 | Pan - chain cover |
| 39 | 7E290 | Magnet - case |
| 40 | 7H293 | Pan assembly - chain cover |
| 41 | 7G233 | Bearing assembly - driven sprocket thrust (drive No. 13) |
| 42 | 7G247 | Bearing assembly - driven sprocket (outer No. 12) |
| 43 | 7H086 | Shim - driven sprocket (select fit No. 11) |
| 44 | 7G355 | Bearing assembly - driven sprocket (inner No. 12) |
| 45 | 7G099 | Washer - drive sprocket thrust (select fit No. 10) |
| 46 | 7H032 | Bearing assembly - stator support (No. 17) (part of 7A153) |
| 47 | 7A153 | Gear assembly - overdrive reverse ring |
| 48 | 7H029 | Bearing assembly - drive sprocket (driven No. 16) (part of 7A153) |
| 49 | 7F240 | Bearing assembly - reverse overdrive ring gear thrust (No. 9) |
| 50 | 7D006 | Planet assembly - overdrive reverse (captured No. 8 bearing) |
| 51 | 7D483 | Ring - low one-way clutch retaining |
| 52 | N811449-S437 | Stud - M6 x 1 |
| 53 | 7A089 | Clutch assembly - low one-way mechanical diode |
| 54 | 7J071 | Spring - light weight 8-wave |
| 55 | 7B066 | Plate - low/reverse clutch pressure |
| 56 | 7B164 | Plate assembly - low/reverse clutch (friction) |
| 57 | 7B442 | Plate - low/reverse clutch (steel) |
| 58 | 7B070 | Spring - low/reverse clutch wave |
| 59 | 7D483 | Ring - low/reverse clutch return spring retaining |
| 60 | 7H064 | Spring assembly - low/reverse clutch return |
| 61 | 7D403 | Seal - low/reverse clutch piston outer (large) |
| 62 | 7D402 | Piston - low/reverse clutch |
| 63 | 7D404 | Seal - low/reverse clutch piston inner (small) |
| 64 | 7A626 | Gear assembly - overdrive/reverse sun |
| 65 | 7G178 | Bearing assembly - reverse/overdrive sun gear thrust (No. 7) |
| 66 | 7A153 | Gear assembly - low/intermediate ring |
| 67 | 7H028 | Bearing assembly - low/intermediate carrier thrust (outer No. 6) |
| 68 | 7A398 | Planet assembly - low/intermediate |
| 69 | 7H027 | Bearing assembly - low/reverse sun gear thrust (inner No. 5) |
| 70 | 7H229 | Gear, race and bushing assembly - low/intermediate sun |
| 71 | 7H225 | Ring - forward one-way clutch and reverse clutch spring retaining |
| 72 | 7H219 | Retainer - forward one-way clutch |
| 73 | 7G439 | Race - forward one-way clutch outer |
| 74 | 7H218 | Clutch assembly - forward one-way sprag |
| 75 | 7H214 | Hub - coast clutch |
| 76 | 7C122 | Ring - coast clutch hub retaining |
| 77 | 7A089 | Clutch and sun gear assembly - forward one-way |
| 78 | 7H026 | Bearing assembly - turbine shaft thrust (No. 4) |
| 79 | 7F213 | Shaft assembly - turbine |
| 80 | 7C099 | Seal - forward/direct clutch hub |
| 81 | 7D483 | Ring - forward/direct clutch plate retaining |
| 82 | 7B066 | Plate - forward clutch pressure |
| 83 | 7B442 | Plate - forward clutch (steel) |
| 84 | 7B164 | Plate assembly - forward clutch (friction) |
| 85 | 7E085 | Spring - forward clutch wave |
| 86 | 7B066 | Plate - coast clutch pressure |
| 87 | 7B442 | Plate assembly - coast clutch (steel) |
| 88 | 7B164 | Plate assembly - coast clutch (friction) |
| 89 | 7N169 | Ring - forward clutch spring retaining |
| 90 | 7G299 | Spring assembly - forward coast clutch return |
| 91 | 7A262 | Piston and seal assembly - coast clutch |
| 92 | 7A548 | Seal - forward clutch piston outer lip |
| 93 | 7A262 | Piston assembly - forward clutch |
| 94 | 7A548 | Seal - forward clutch piston inner lip |
| 95 | 7G120 | Cylinder assembly - forward/direct/coast clutch |
| 96 | 7A548 | Seal - direct clutch piston outer lip |
| 97 | 7A262 | Piston and seal assembly - direct clutch |
| 98 | 7F225 | Seal - direct clutch piston inner lip |
| 99 | 7F235 | Spring assembly - direct clutch return |
| 100 | 7C122 | Ring - direct clutch spring retaining |
| 101 | 7D020 | Seal - reverse clutch cylinder |
| 102 | 7G116 | Washer - direct clutch thrust |
| 103 | 7B442 | Plate - direct clutch (steel) |
| 104 | 7B164 | Plate assembly - direct clutch (friction) |
| 105 | 7B477 | Plate - direct clutch pressure |
| 106 | 7D064 | Shell assembly - direct clutch |
| 107 | 7D044 | Drum assembly - reverse clutch |
| 108 | 7E079 | Piston assembly - reverse clutch |
| 109 | 7G335 | Spring assembly - reverse clutch return |
| 110 | 7B442 | Plate - reverse input clutch (steel) |
| 111 | 7B164 | Plate assembly - reverse input clutch (friction) |
| 112 | 7D408 | Plate - reverse input clutch pressure |
| 113 | 7D483 | Ring - reverse clutch retaining (select fit) |
| 114 | 7D391 | Hub - reverse clutch |
| 115 | 7D256 | Ring - reverse clutch hub retaining |
| 116 | 7H241 | Bearing assembly - pump support thrust (No. 1) |
| 117 | 7B328 | Shaft - pump drive |
| 118 | 7D034 | Band assembly - intermediate/overdrive |
| 119 | 7H114 | Seal - multiple clutch cooling |
| 120 | 7H114 | Seal - pump support clutch inner |
| 121 | N807099-S1000 | Bolt - M6-1.0 x 18.5 pan head Torx® (attaches pump support to pump body) |
| 122 | 7A108 | Support assembly - pump |
| 123 | 7G331 | Gasket - pump body separator |
| 124 | 7A142 | Plate - pump body separator |
| 125 | 7F402 | Insert - pump drive gear |
| 126 | 7C009 | Gear assembly - pump drive |
| 127 | 7C011 | Gear - pump driven |
| 128 | 7A248 | Seal - pump O-ring |
| 129 | 7F370 | Body - front pump |
| 130 | N605893-S437 | Bolt - M6-1.0 x 27.5 hex head (attaches pump body to case) |
| 131 | 7A103 | Pump assembly - front |
| 132 | 7B329 | Seal - solenoid valve body O-ring |
| 133 | 7M101 | Sensor assembly - transmission turbine shaft speed (TSS) |
| 134 | W500213-S439 | Bolt - M6-1.0 x 16 hex head flange (attaches TSS sensor to case) |
| 135 | 7Z101 | Seal - transmission turbine shaft speed (TSS) sensor O-ring |
| 136 | 7034 | Vent assembly - main control cover |
| 137 | N808664-S1101 | Bolt - M6-1.0 x 20.5 hex head flange (attaches main control cover to case) |
| 138 | 7G004 | Cover assembly - main control |
| 139 | 7F396 | Gasket - main control cover |
| 140 | N807073-S1100 | Bolt - M6-1.0 x 88.5 hex head flange |
| 141 | N807072-S1100 | Bolt - M6-1.0 x 74.5 hex head flange |
| 142 | 7G391 | Body assembly - transmission control solenoid (TCS) |
| 143 | 7H200 | Gasket - electronic control body |
| 144 | N807078-S100 | Bolt - M5-0.8 x 15 hex head flange |
| 145 | 7H250 | Plate - pressure tap |
| 146 | 7H251 | Gasket - pressure tap plate |
| 147 | N807077-S1100 | Bolt - M6-1.0 x 61.5 hex head flange |
| 148 | 7G422 | Body assembly - accumulator |
| 149 | 7F187 | Plug - 2/4 accumulator valve |
| 150 | 7H332 | Seal - 2/4 accumulator body |
| 151 | 7H202 | Gasket - accumulator body separator plate |
| 152 | 7H201 | Plate - accumulator body separator |
| 153 | N807076-S1100 | Bolt - M6-1.0 x 45 hex head flange |
| 154 | 7E332 | Spring assembly - manual valve detent |
| 155 | 7G423 | Body assembly - main control lower |
| 156 | 7D100 | Gasket - separator plate |
| 157 | 7A008 | Plate - control valve separator |
| 158 | 7H195 | Plate - case to main control transfer |
| 159 | 7A100 | Control and pressure tap assembly - main |
| 160 | 7H249 | Seal - recirculating regulator exhaust |
| 161 | 7A098 | Filter and seal assembly - fluid |
| 162 | 7H264 | Bracket - thermal valve |
| 163 | N605890-S2 | Bolt - M6-1.0 x 16.5 hex head flange |
| 164 | 7H237 | Valve - thermostatic fluid level assembly |
| 165 | 7005 | Case assembly - transaxle |
| 166 | 7H074 | Ring - intermediate/overdrive servo cylinder cover |
| 167 | 7D027 | Cover assembly - intermediate/overdrive servo |
| 168 | 7H188 | Piston and rod assembly - intermediate/overdrive servo |
| 169 | 7H073 | Spring assembly - intermediate overdrive servo piston return |
| 170 | 7N279 | Plug - 1/4-18 dry seal tapered thread (line pressure) |
| 171 | 7010 | Plug - 1/2-14 transaxle drain |
| 172 | 1177 | Seal assembly - differential |
| 173 | 7H103 | Sensor assembly - output shaft speed (OSS) |
| 174 | N605903-S437 | Bolt - M8-1.25 x 17 hex head flange |
| 175 | 7A256 | Lever assembly - manual control |
| 176 | 7B498 | Seal - manual control lever |
| 177 | 7B148 | Tag - transaxle identification |
| 178 | 7A232 | Rod assembly - manual valve detent lever actuating |
| 179 | N807079-S437 | Bolt and washer assembly - M6-1 x 25 hex head flange |
| 180 | 7F293 | Sensor assembly - transmission range |
| 181 | 7E335 | Rod - manual valve actuator |
| 182 | 7A115 | Lever assembly - manual valve detent inner |
| 183 | 7G100 | Pin - shaft retainer |
| 184 | 7D261 | Shaft - manual valve detent inner |
| 185 | 7H205 | Seal - final drive lube tube |
| 186 | 7H204 | Tube - final drive lube |
| 187 | 7F337 | Seal assembly - manual control |
| 188 | 7D071 | Shaft - parking pawl |
| 189 | 7D070 | Spring - parking pawl return |
| 190 | 7A441 | Pawl assembly - parking brake |
| 191 | 7D419 | Retainer and bolt assembly - parking pawl shaft |
| 192 | 7A180 | Spring - parking pawl ratchet |
| 193 | 7R392 | Lever assembly - parking brake |
| 194 | 7D483 | Ring - direct clutch plate retaining |
| 195 | 6641 | Nut - M10 x 1.0 |
| 196 | W500213-S439 | Bolt - M6 x 1.0 |
| 197 | W704804 | O-ring |
| 198 | 7J361 | Isolator - mechanical diode (3 required) |
| 199 | N807078-S100 | Bolt, park pawl retainer to case |
| 200 | 7C389 | Valve - manual control |
