Inner Tie Rod: Notes

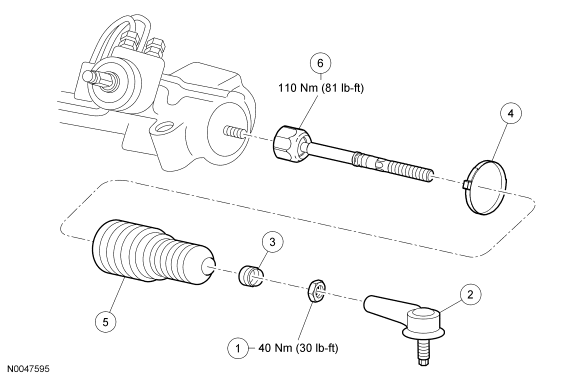

Fig 1: Exploded View Of Inner Tie Rod With Torque Specifications
GF0025604Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W700318 Tie-rod end jam nut
2 3289-GA Outer tie-rod end
3 3C650B Tie-rod boot clamp, outer
4 3C650A Tie-rod boot clamp, inner
5 3K661 Tie-rod boot
6 3280 Inner tie-rod
