Instrument Cluster: Notes

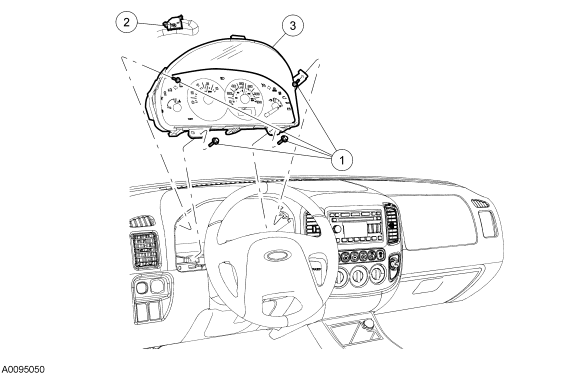

Fig 1: Exploded View Of Instrument Cluster
GF0025834Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705314 Instrument cluster screws (4 required)
2 - Electrical connector (part of 14401)
3 10849 Instrument cluster
