Audio Unit: Notes

Special Tools

Illustration Tool Name Tool Number
GF0010931
 Radio Removal Tool 415-001 (T87P-19061-A)

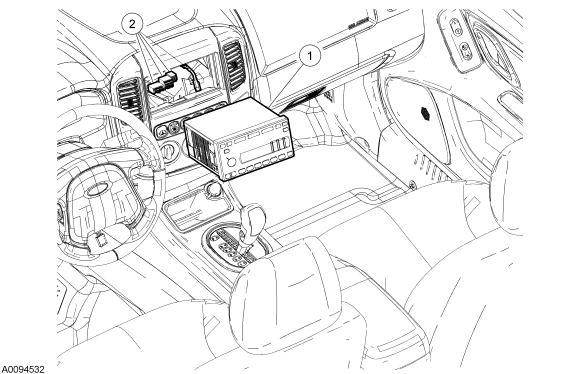

Fig 1: Exploded View Of Audio Unit
GF0025947Courtesy of FORD MOTOR CO.
Item Part Number Description
1 18C815 Audio unit
2 19B107 Electrical connectors and antenna lead-in cable
