Window Glass - Liftgate: Notes

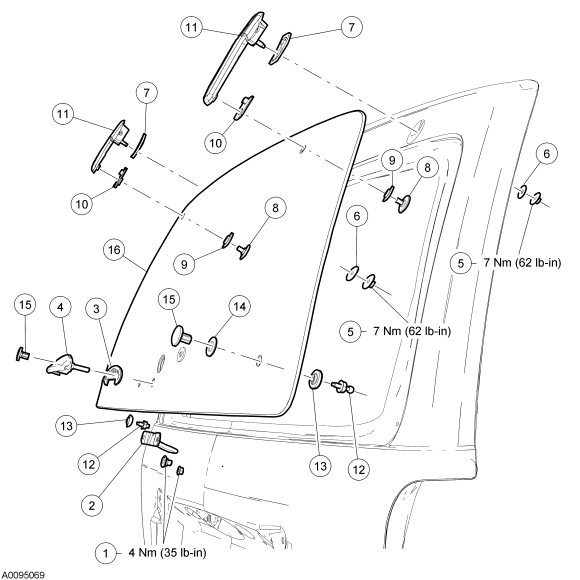

Fig 1: Exploded View Of Liftgate Window Glass With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Liftgate window glass handle nuts (part of 440A58) (2 required)
2	-	Liftgate window glass handle striker (part of 440A58)
3	-	Liftgate window glass handle seal (part of 440A58)
4	440A58	Liftgate window glass handle
5	-	Liftgate window glass hinge washer/nuts (part of 420A68/420A69) (2 required)
6	-	Liftgate window glass spacers (part of 420A68/420A69) (2 required)
7	-	Liftgate window glass seals (part of 420A68/420A69) (2 required)
8	-	Liftgate window glass hinge screws (part of 420A68/420A69) (2 required)
9	-	Liftgate window glass hinge spacers (part of 420A68/420A69) (2 required)
10	-	Liftgate window glass hinge seals (part of 420A68/420A69) (2 required)
11	420A68/420A69	Liftgate window glass hinges
12	-	Ball stud (part of 42149) (2 required)
13	-	Ball stud spacer (part of 42149) (2 required)
14	-	Ball stud seal (part of 42149) (2 required)
15	-	Ball stud nut (part of 42149) (2 required)
16	42006	Liftgate window glass
