Accelerometer - Hybrid: Notes

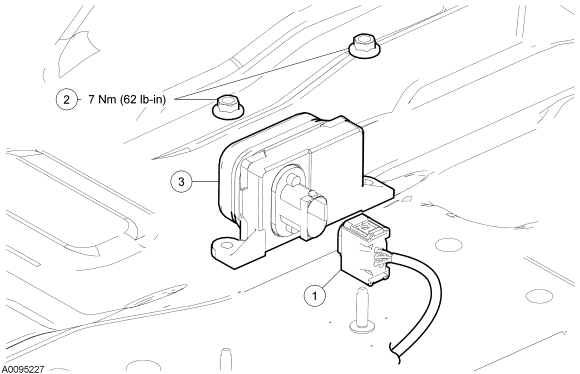

Fig 1: Exploded View Of Accelerometer - Hybrid With Torque Specifications
GF0024683Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2C011 Electrical connector
2 W700101 Accelerometer nuts (2 required)
3 3C187 Accelerometer
