Lumbar Motor Connector
Lumbar Motor Connector

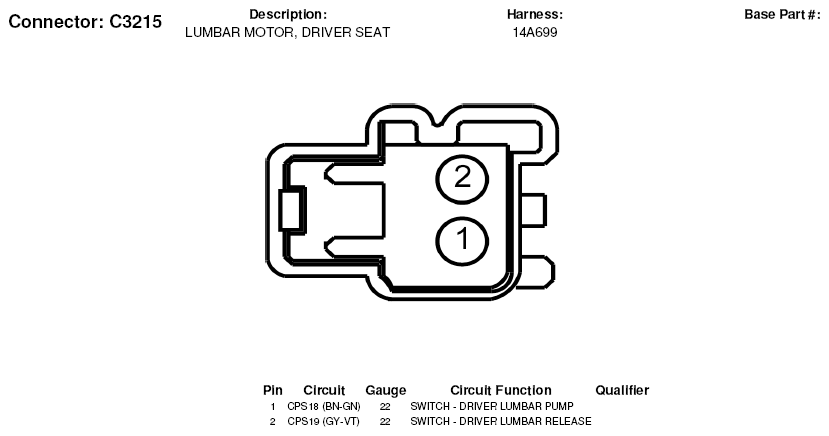

Fig 1: Lumbar Motor Connector End View (C3215)
Courtesy of FORD MOTOR CO.

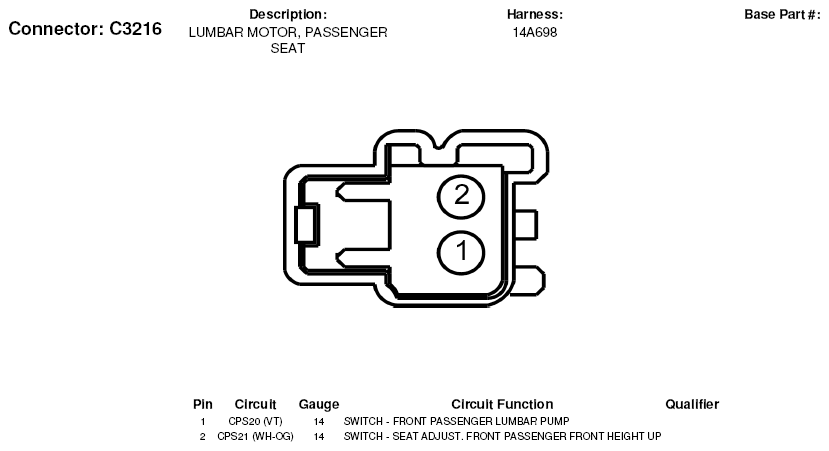

Fig 2: Lumbar Motor Connector End View (C3216)
Courtesy of FORD MOTOR CO.
