Rear Window Wiper Motor Connector
Rear Window Wiper Motor Connector

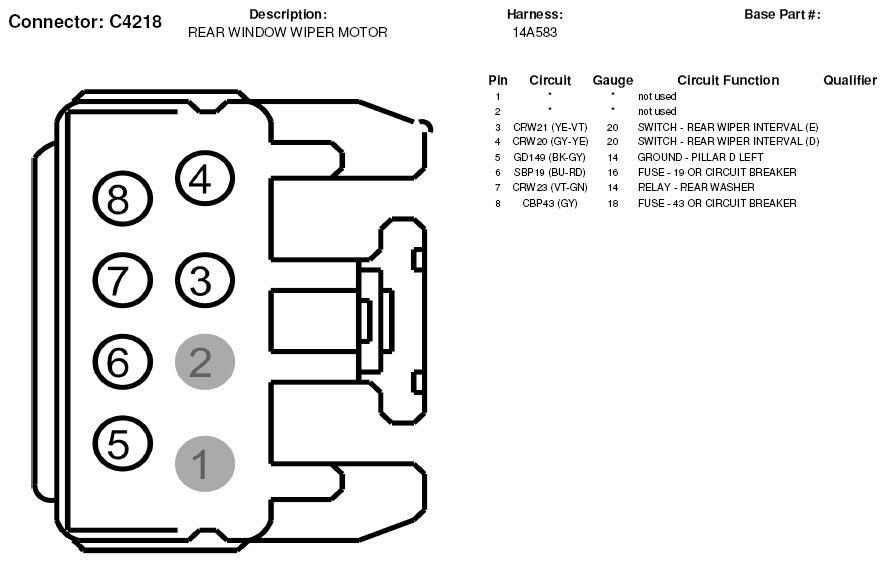

Fig 1: Rear Window Wiper Motor Connector End View (C4218)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
