Window Adjust Switch Connectors

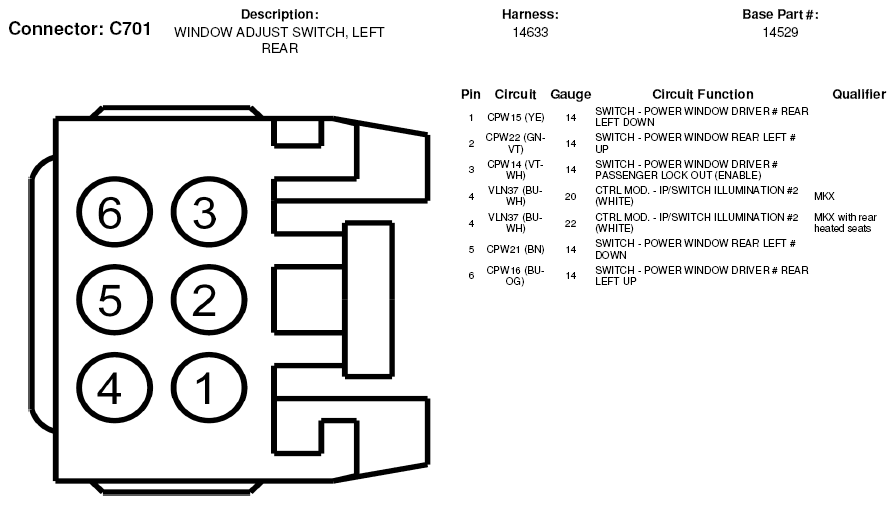

Fig 1: Window Adjust Switch Connector End View (C701)

G05182668

Courtesy of FORD MOTOR CO.

Fig 2: Window Adjust Switch Connector End View (C801)

G05182674

Courtesy of FORD MOTOR CO.
