Speaker Array Center Connector
Speaker Array Center Connector

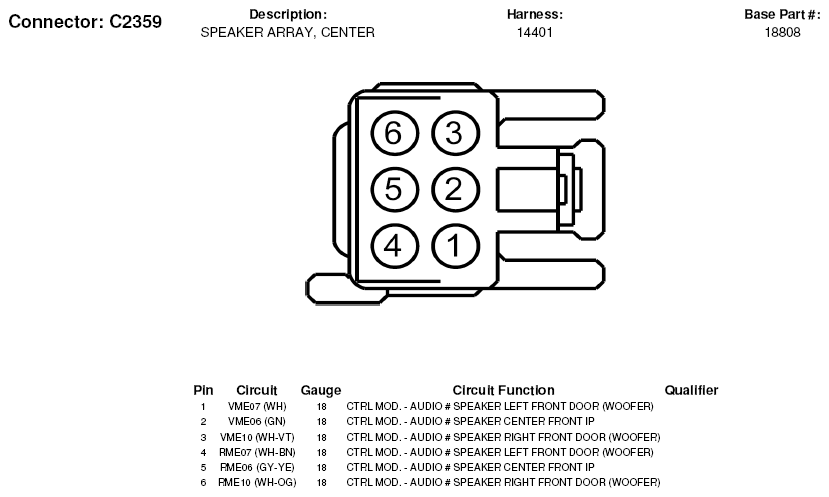

Fig 1: Speaker Array Center Connector End View (C2359)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
