Seat Track Position Sensor Connector

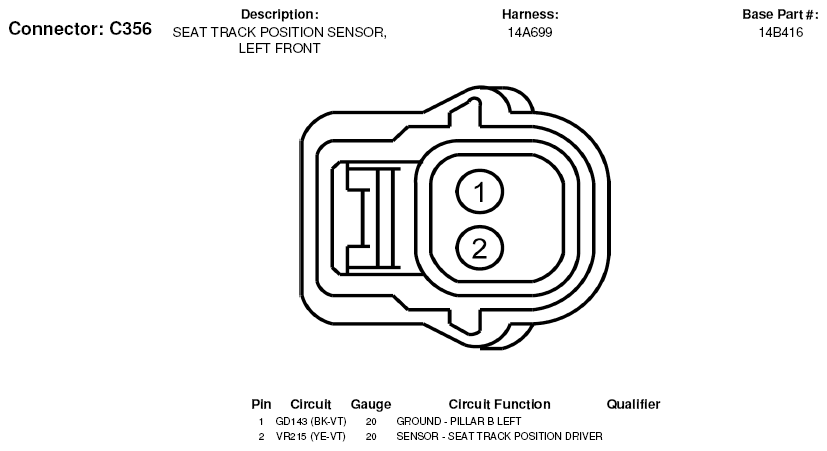

Fig 1: Seat Track Position Sensor Connector End View (C356)

G05182612

Courtesy of FORD MOTOR CO.
