Power Window Motor Connectors

Fig 1: Power Window Motor Connector End View (C518)
G05182645Courtesy of FORD MOTOR CO.
Fig 2: Power Window Motor Connector End View (C540)
G05182651Courtesy of FORD MOTOR CO.

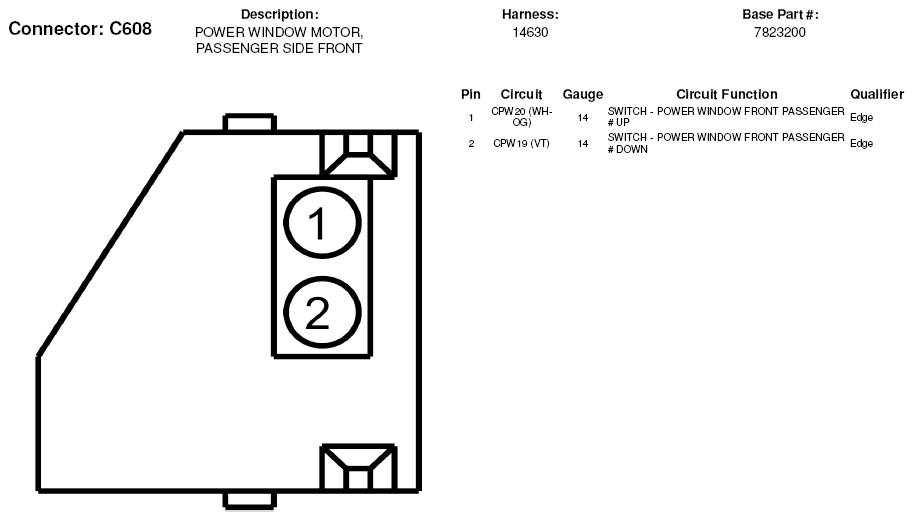

Fig 3: Power Window Motor Connector End View (C608)
G05182657Courtesy of FORD MOTOR CO.

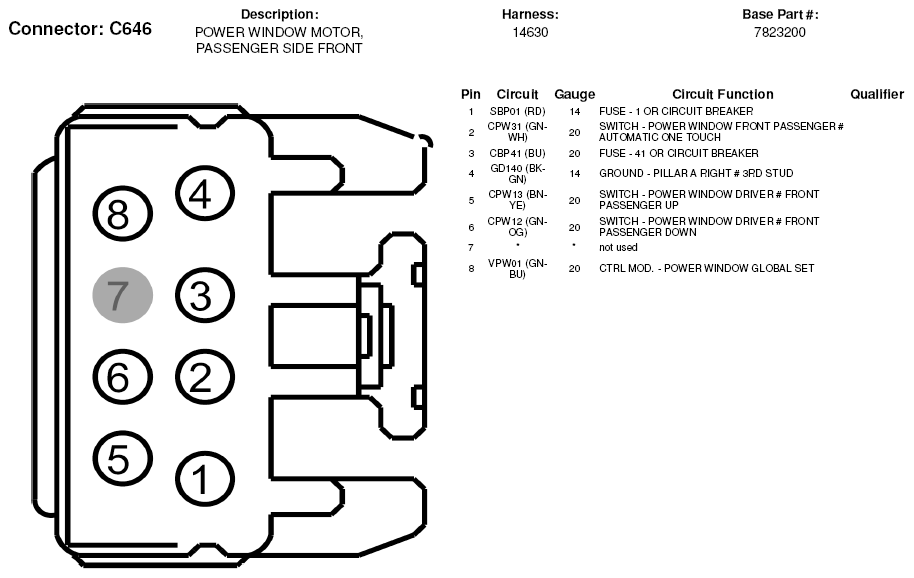

Fig 4: Power Window Motor Connector End View (C646)
G05182665Courtesy of FORD MOTOR CO.

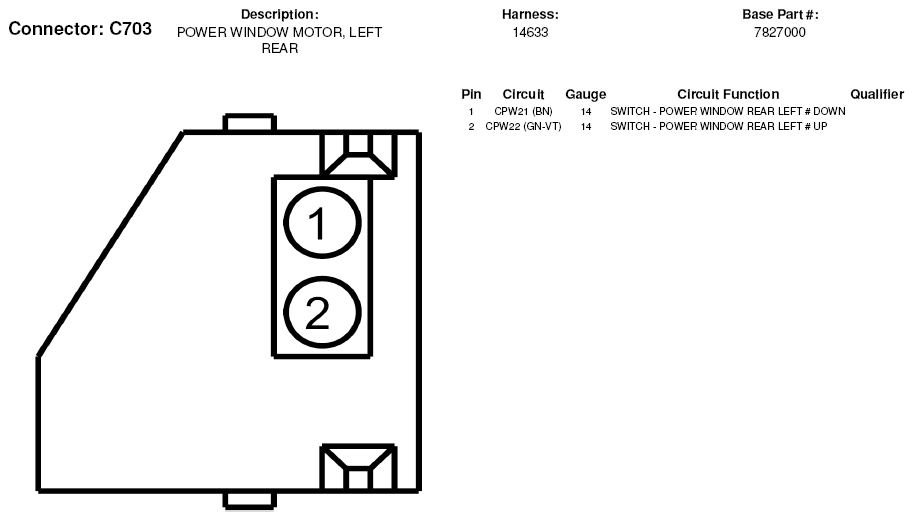

Fig 5: Power Window Motor Connector End View (C703)
G05182670Courtesy of FORD MOTOR CO.
Fig 6: Power Window Motor Connector End View (C828)
G05182678Courtesy of FORD MOTOR CO.
