Power Seat Switch Connector

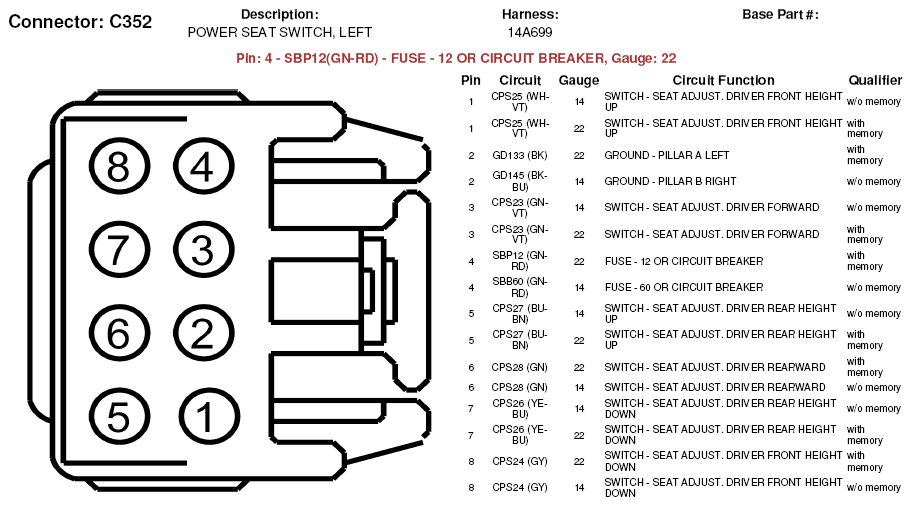

Fig 1: Power Seat Switch Connector End View (C352)
G05182610Courtesy of FORD MOTOR CO.

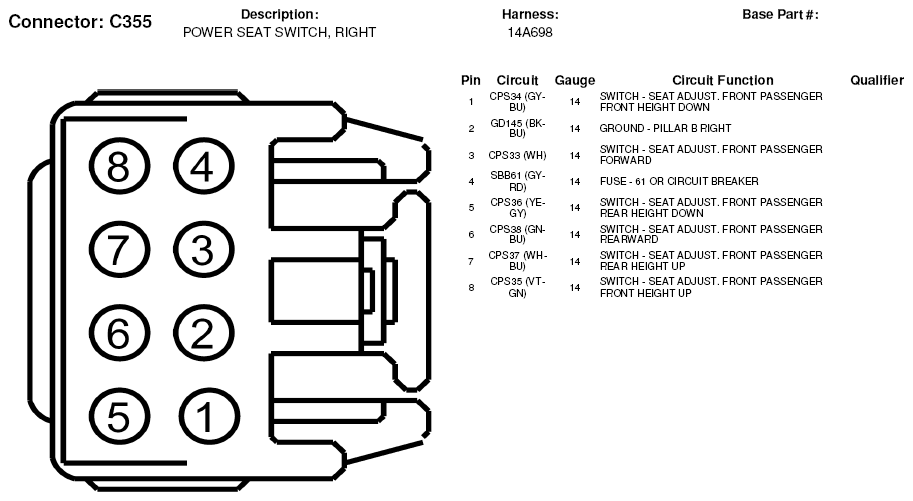

Fig 2: Power Seat Switch Connector End View (C355)
G05182611Courtesy of FORD MOTOR CO.

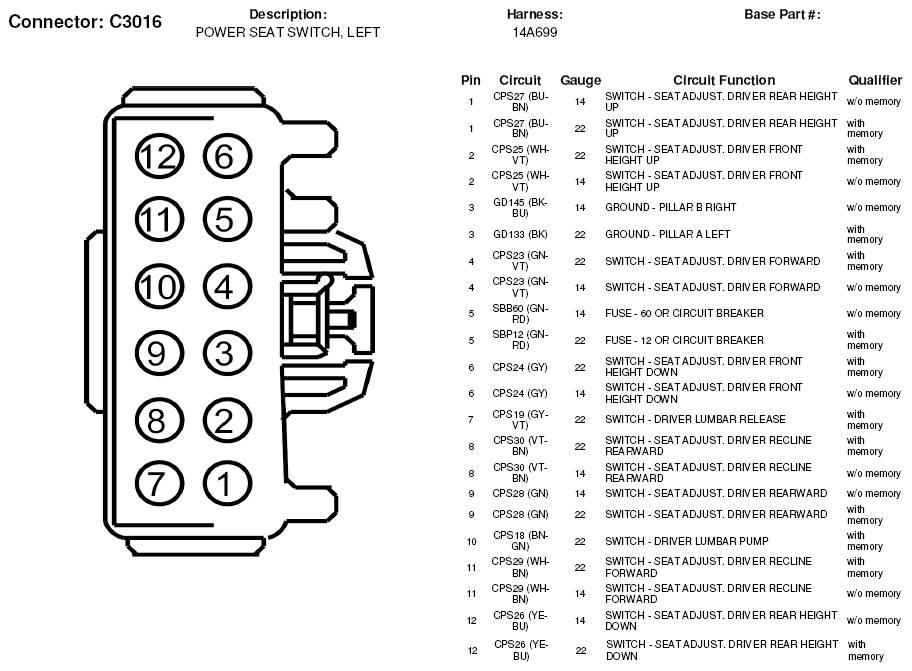

Fig 3: Power Seat Switch Connector End View (C3016)
G05182754Courtesy of FORD MOTOR CO.

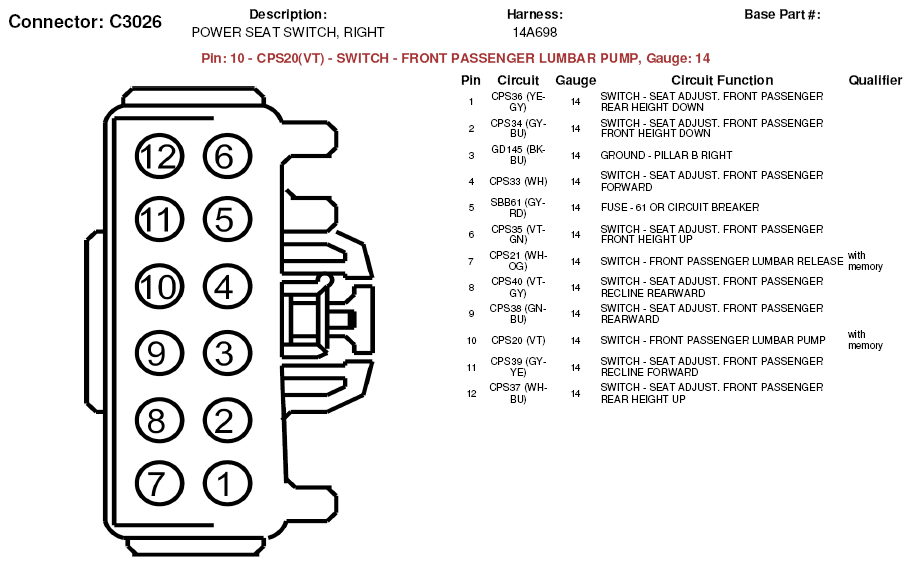

Fig 4: Power Seat Switch Connector End View (C3026)
G05182755Courtesy of FORD MOTOR CO.
