Power Point Instrument Panel Connector

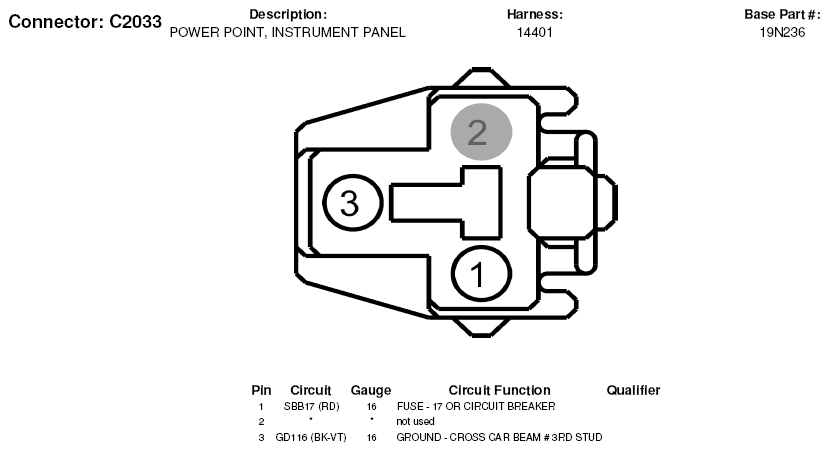

Fig 1: Power Point Instrument Panel Connector End View (C2033)

G05182725

Courtesy of FORD MOTOR CO.
