Power Point Cargo Area Connector
Power Point Cargo Area Connector

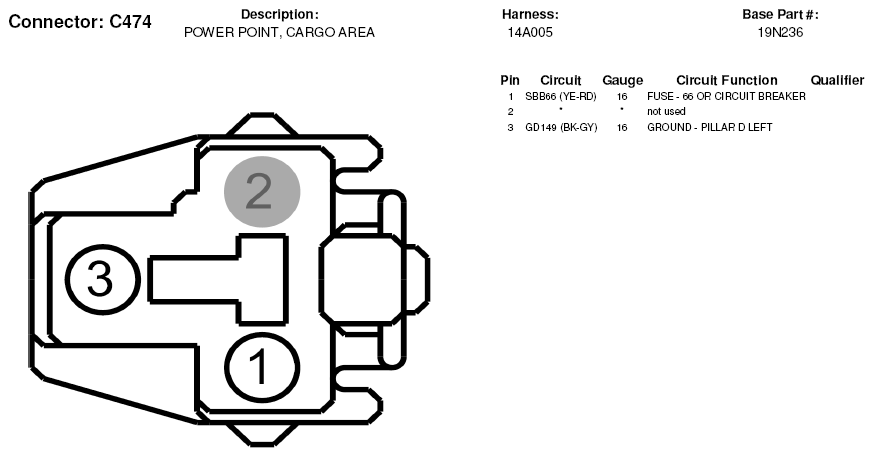

Fig 1: Power Point Cargo Area Connector End View (C474)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
