Oil Pressure Switch Connector
Oil Pressure Switch Connector

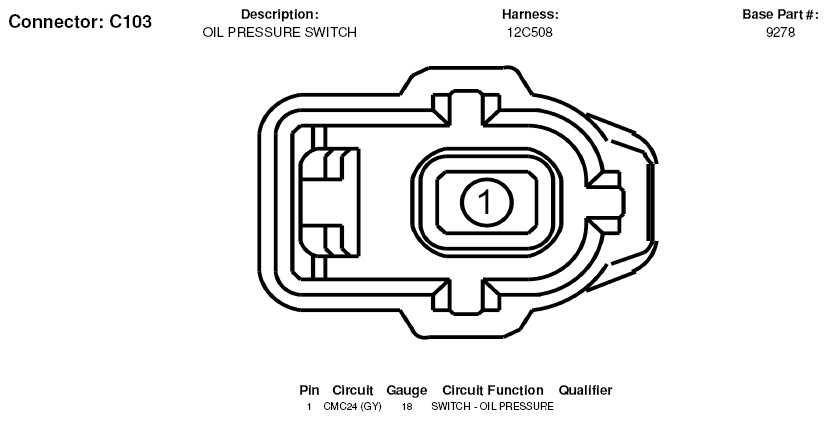

Fig 1: Oil Pressure Switch Connector End View (C103)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
