Inline Connectors

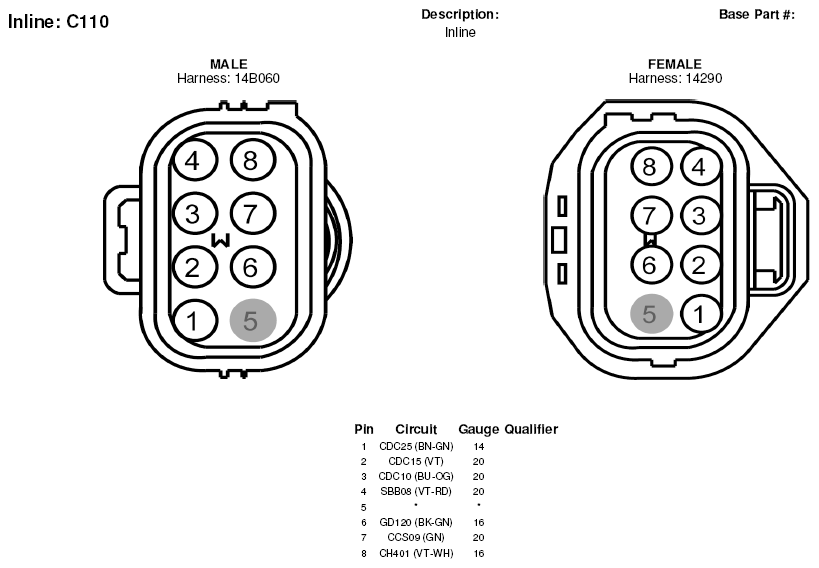

Fig 1: Inline Connector End View (C110)

G05182514

Courtesy of FORD MOTOR CO.

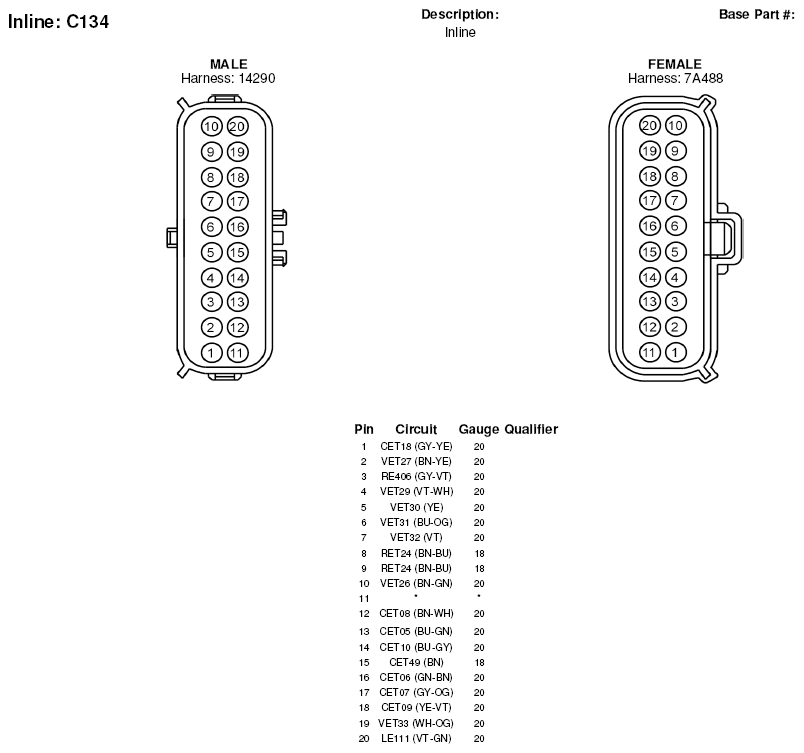

Fig 2: Inline Connector End View (C134)

G05182526

Courtesy of FORD MOTOR CO.

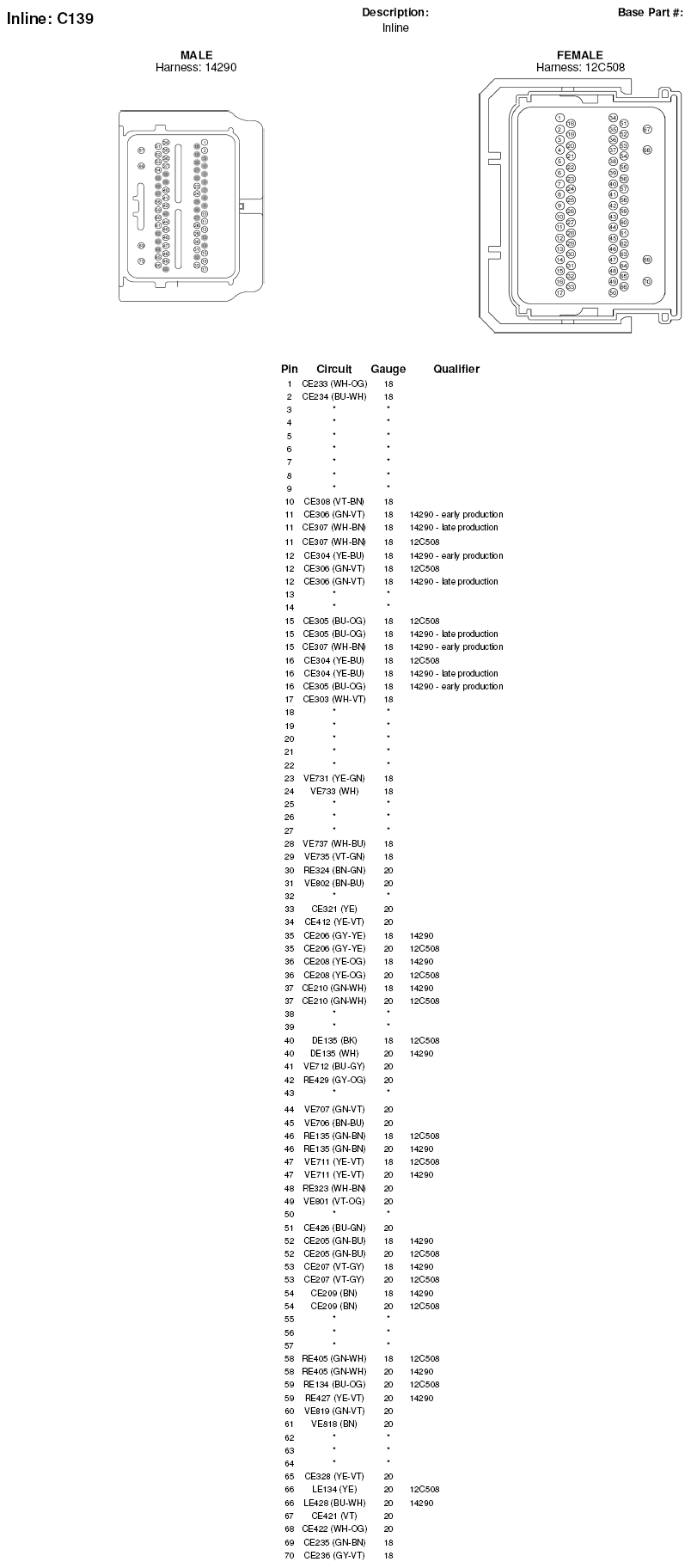

Fig 3: Inline Connector End View (C139)

G05182530

Courtesy of FORD MOTOR CO.

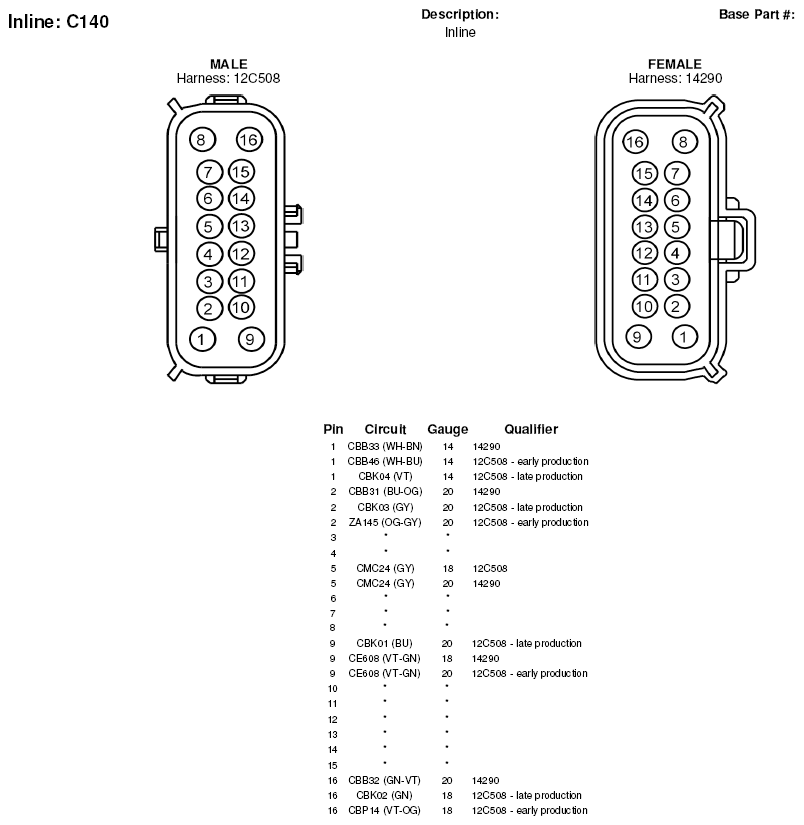

Fig 4: Inline Connector End View (C140)

G05182531

Courtesy of FORD MOTOR CO.

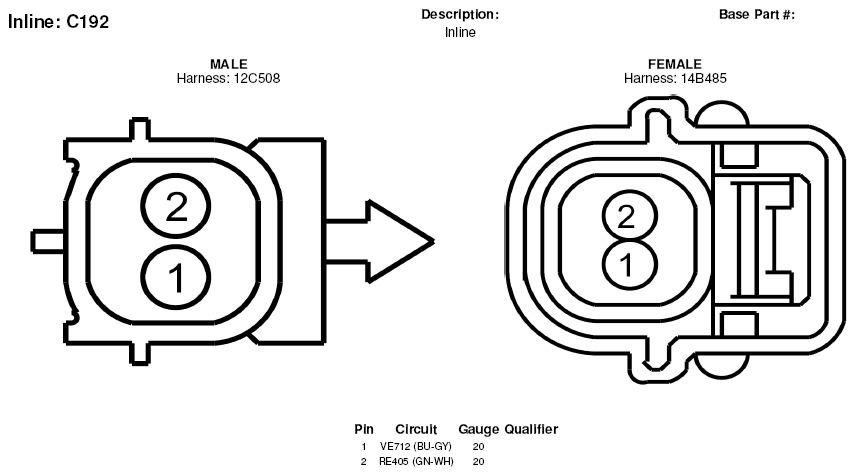

Fig 5: Inline Connector End View (C192)

G05182554

Courtesy of FORD MOTOR CO.

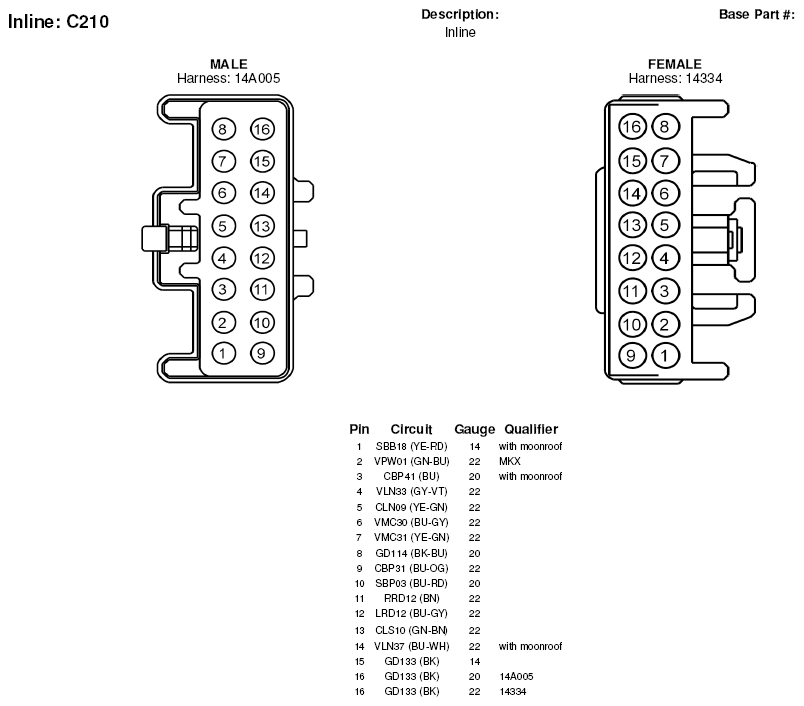

Fig 6: Inline Connector End View (C210)

G05182561

Courtesy of FORD MOTOR CO.

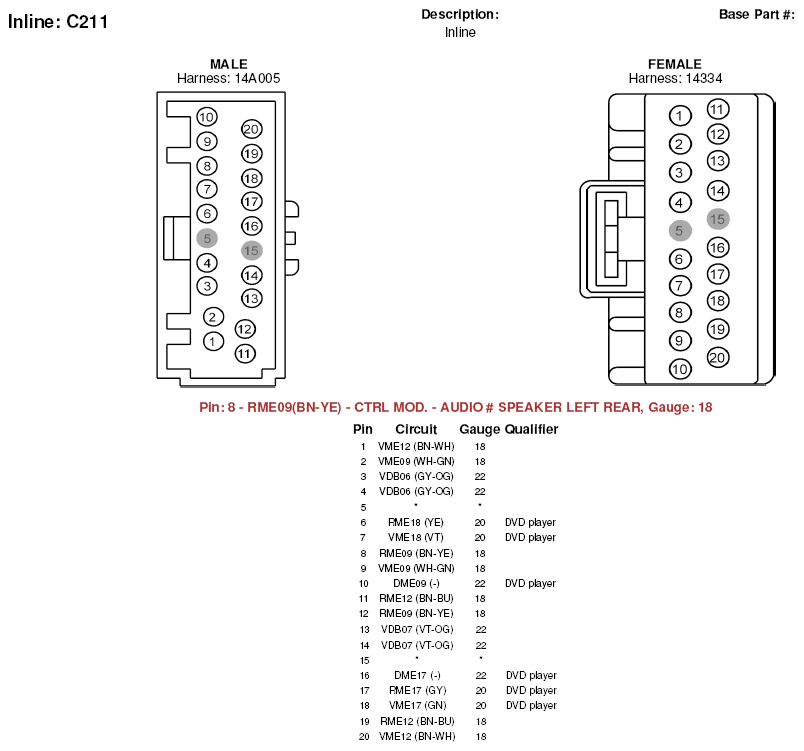

Fig 7: Inline Connector End View (C211)

G05182562

Courtesy of FORD MOTOR CO.

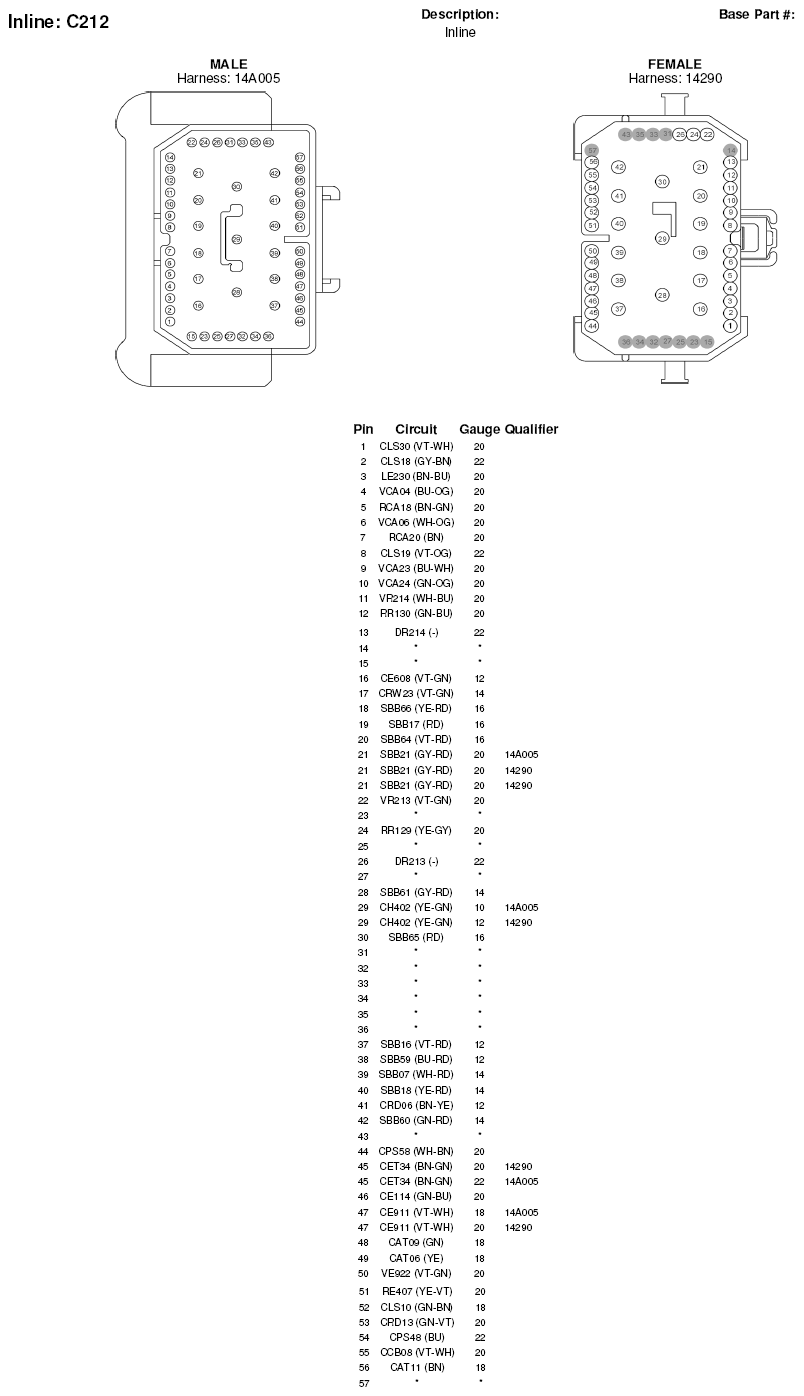

Fig 8: Inline Connector End View (C212)

G05182563

Courtesy of FORD MOTOR CO.

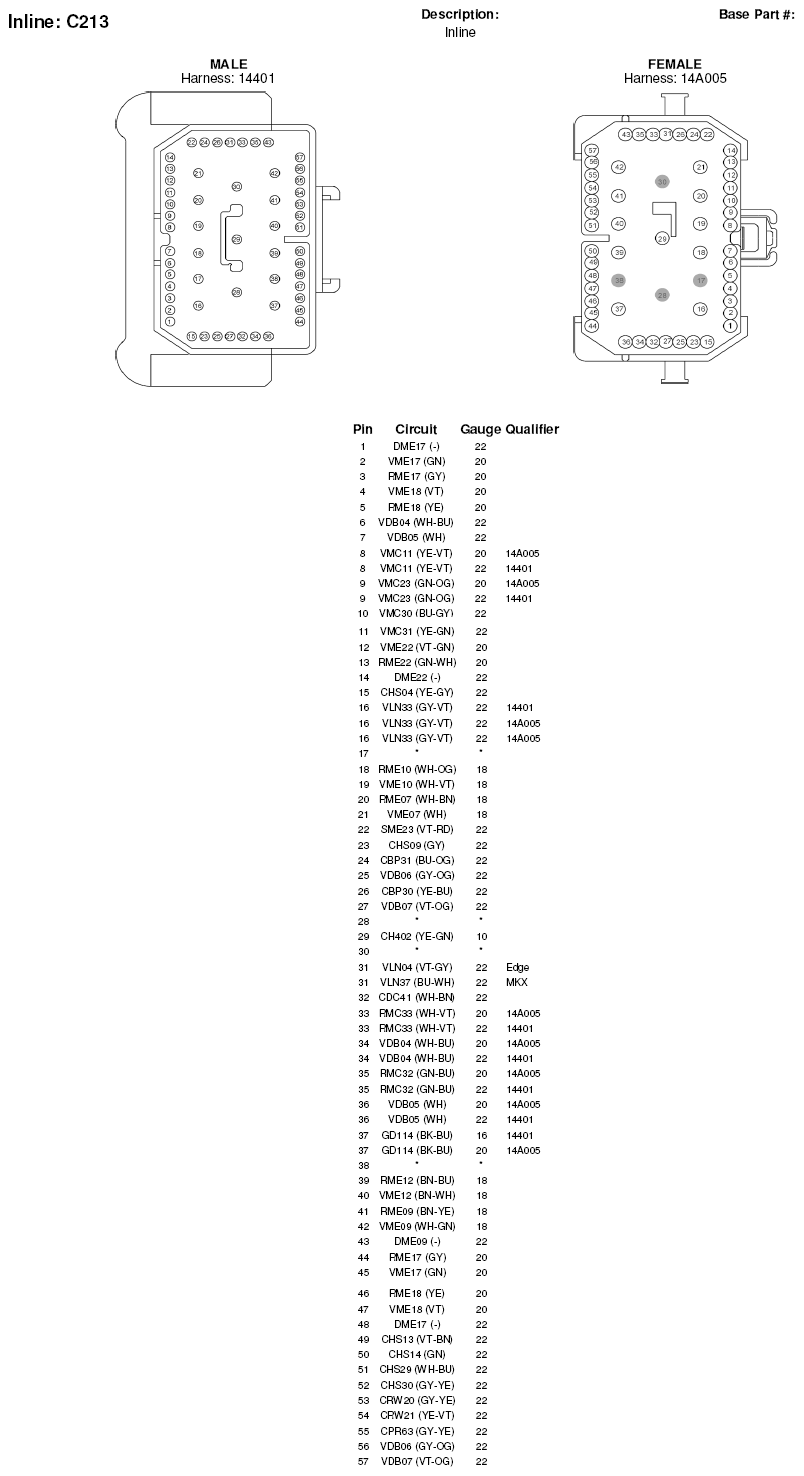

Fig 9: Inline Connector End View (C213)

G05182564

Courtesy of FORD MOTOR CO.

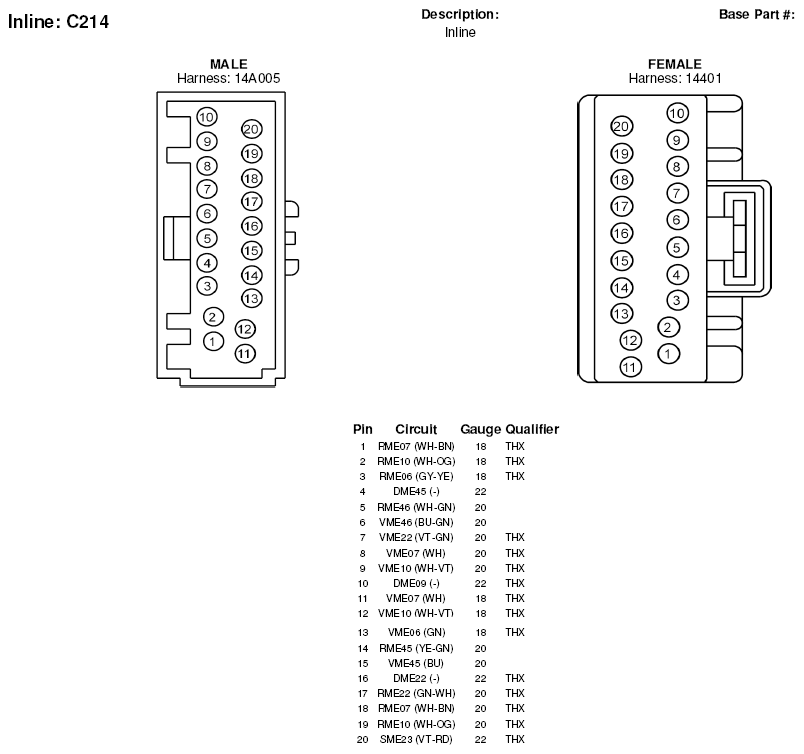

Fig 10: Inline Connector End View (C214)

G05182565

Courtesy of FORD MOTOR CO.

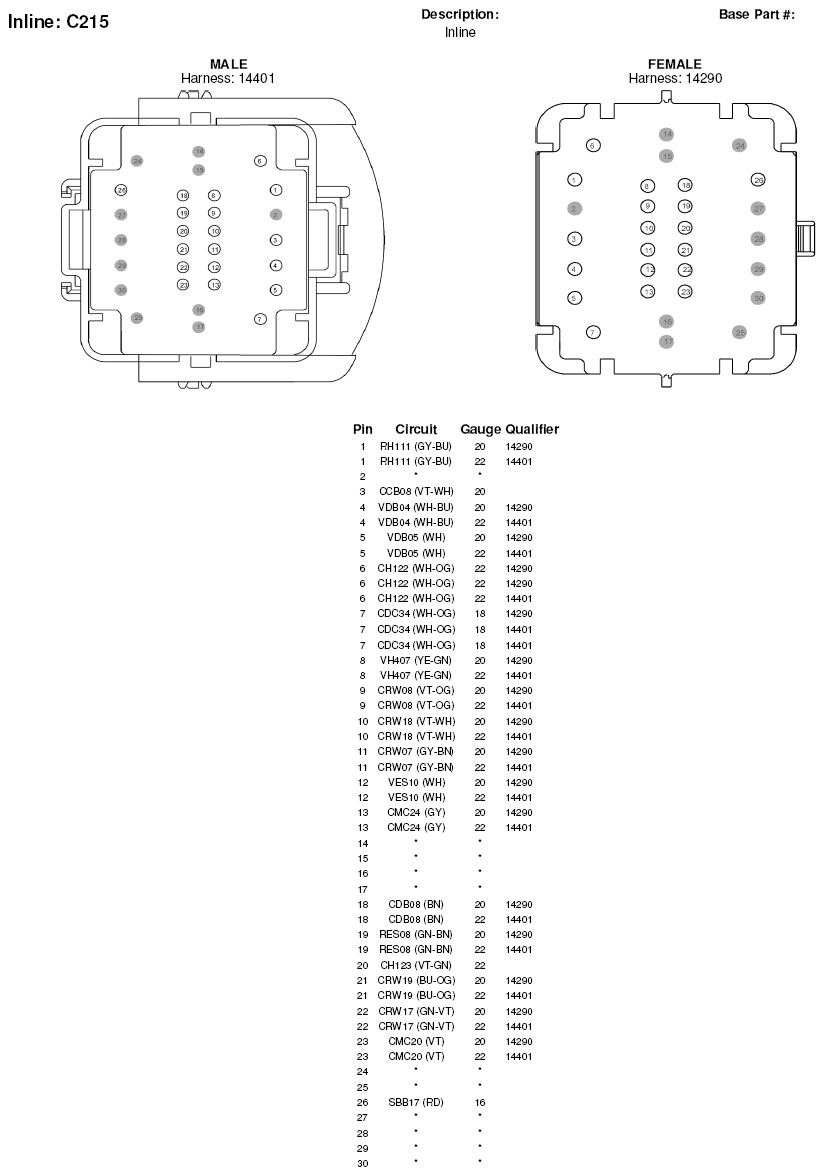

Fig 11: Inline Connector End View (C215)

G05182566

Courtesy of FORD MOTOR CO.

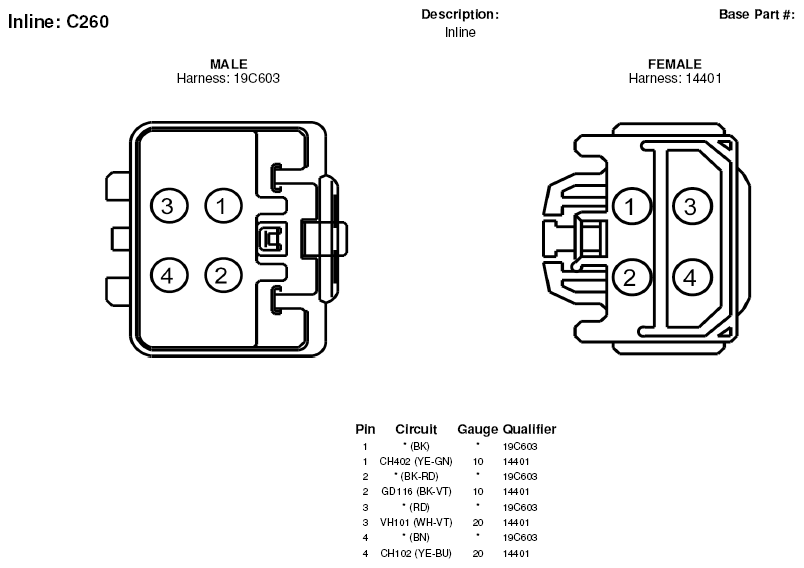

Fig 12: Inline Connector End View (C260)

G05182585

Courtesy of FORD MOTOR CO.

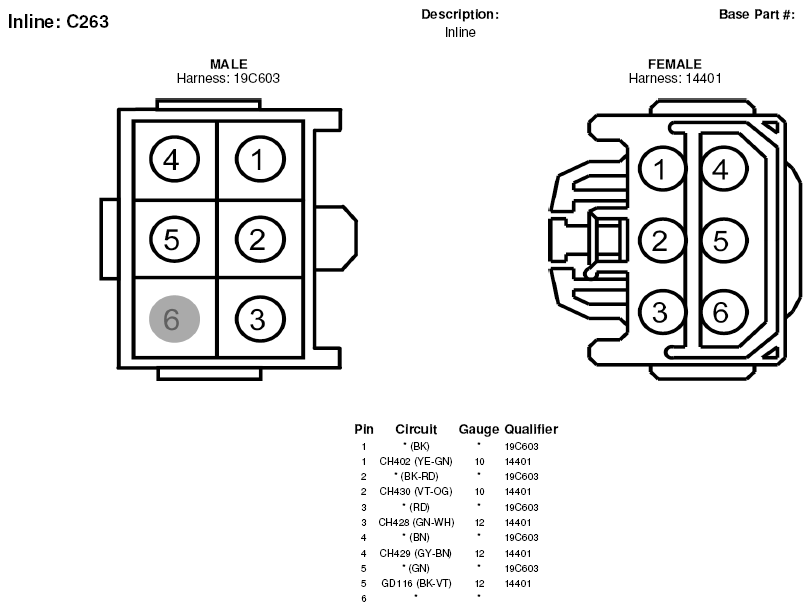

Fig 13: Inline Connector End View (C263)

G05182586

Courtesy of FORD MOTOR CO.

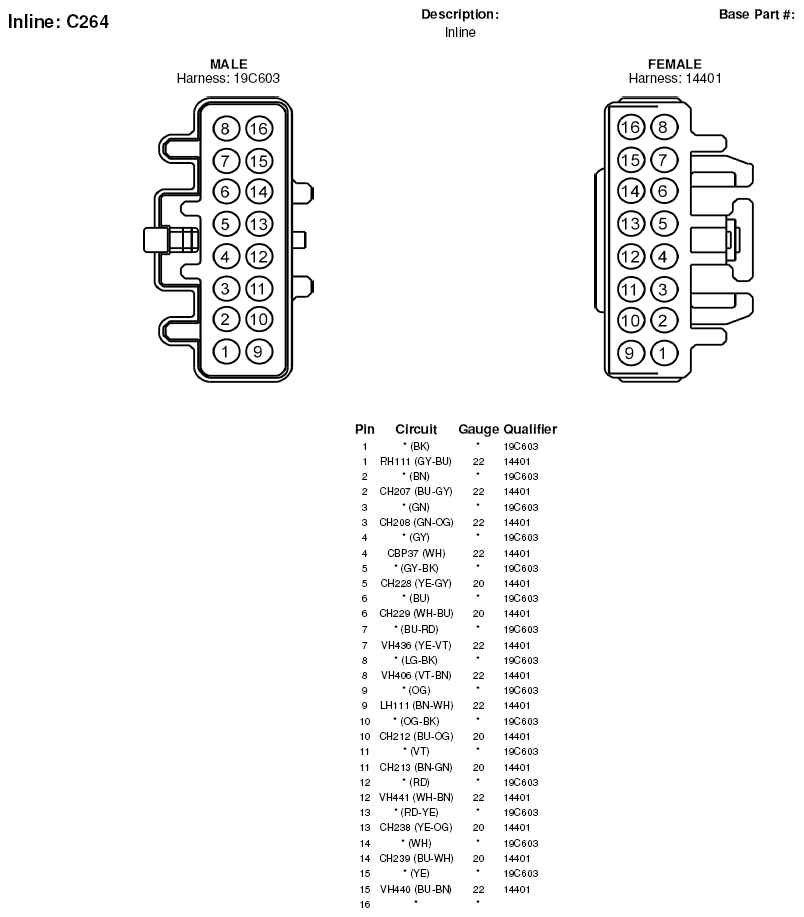

Fig 14: Inline Connector End View (C264)

G05182588

Courtesy of FORD MOTOR CO.

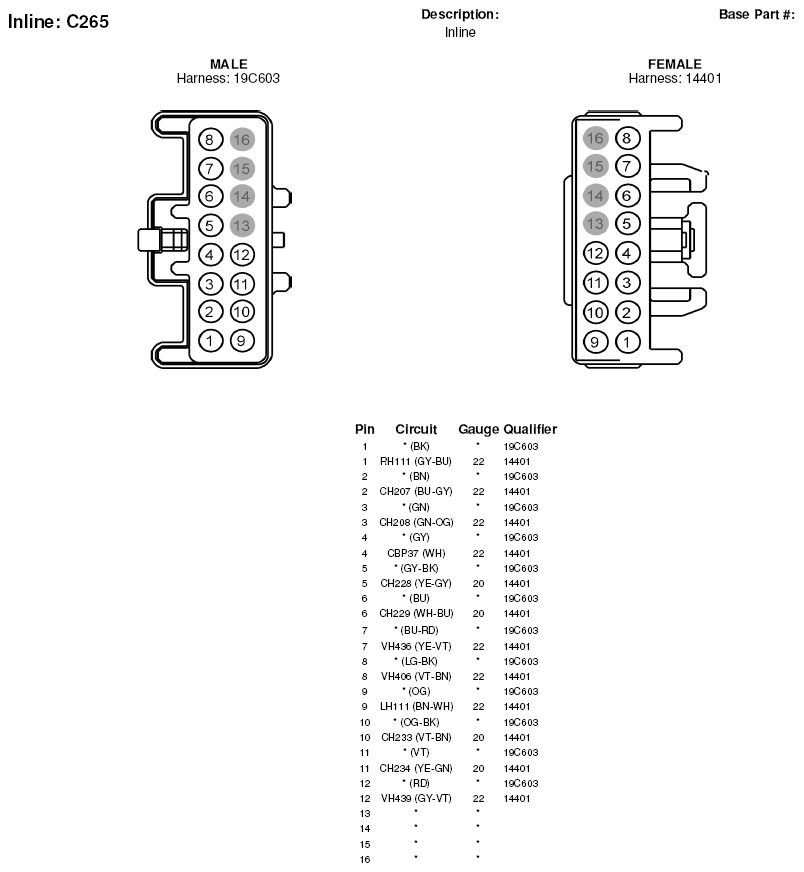

Fig 15: Inline Connector End View (C265)

G05182589

Courtesy of FORD MOTOR CO.

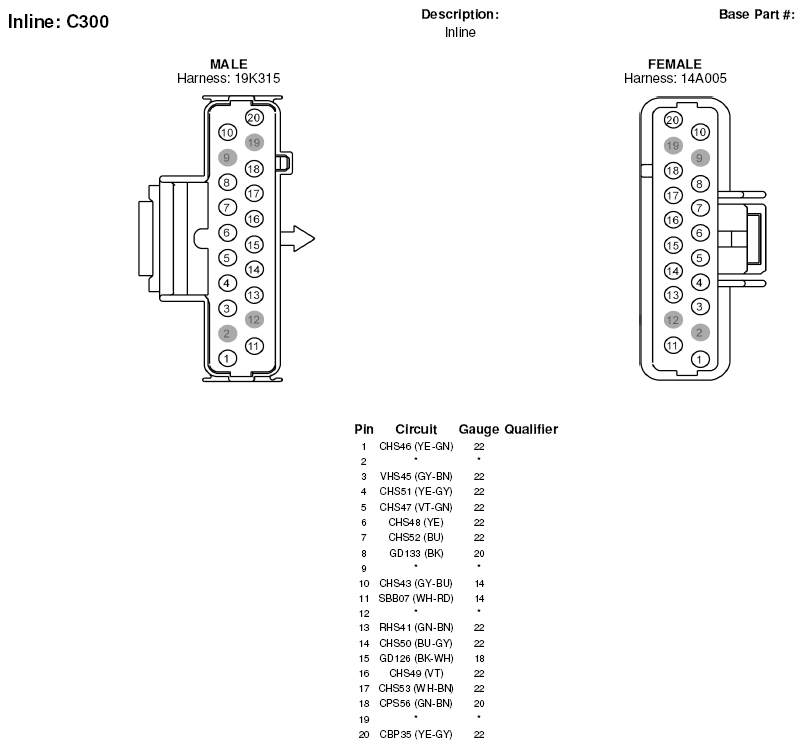

Fig 16: Inline Connector End View (C300)

G05182596

Courtesy of FORD MOTOR CO.

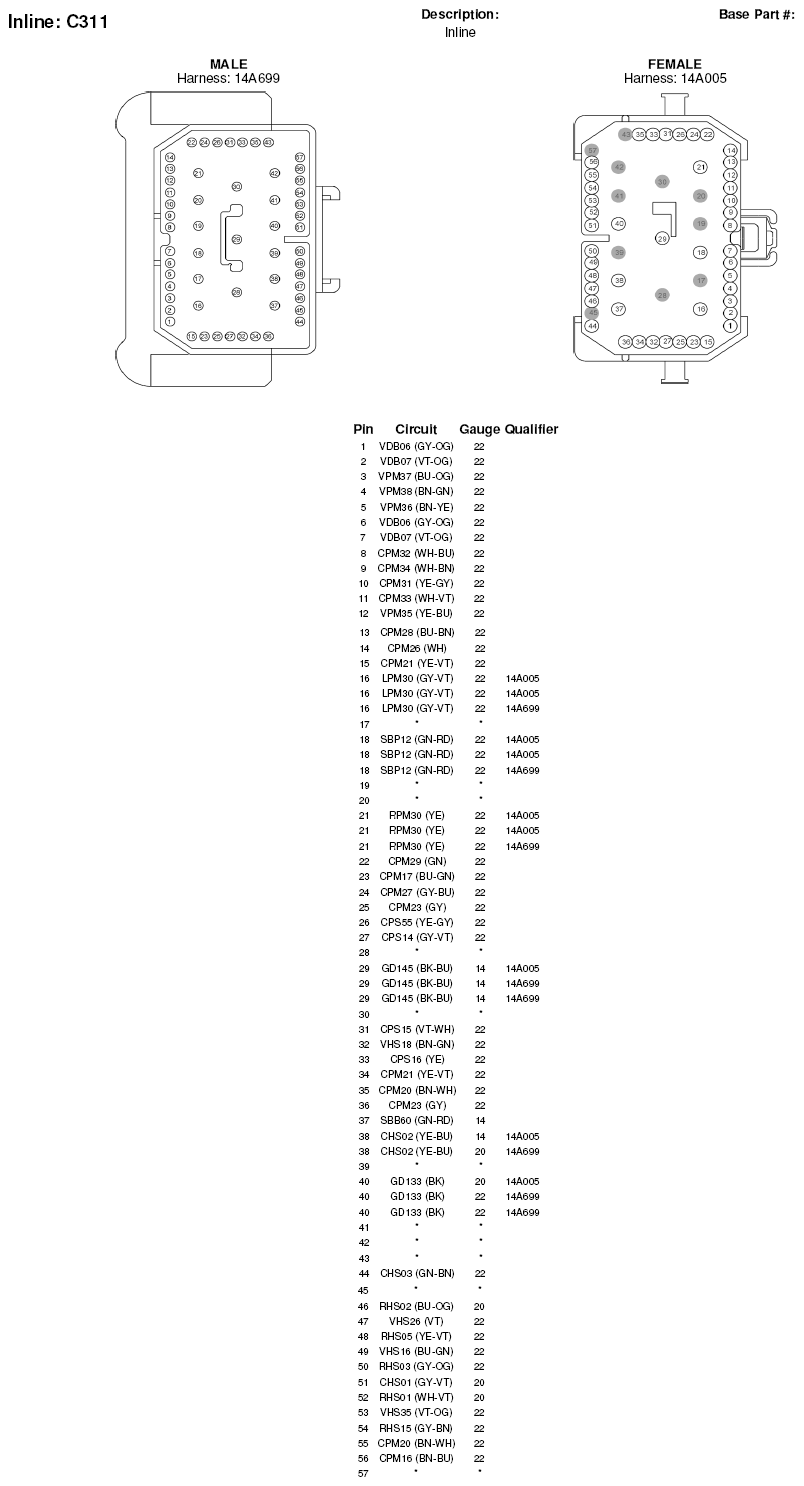

Fig 17: Inline Connector End View (C311)

G05182599

Courtesy of FORD MOTOR CO.

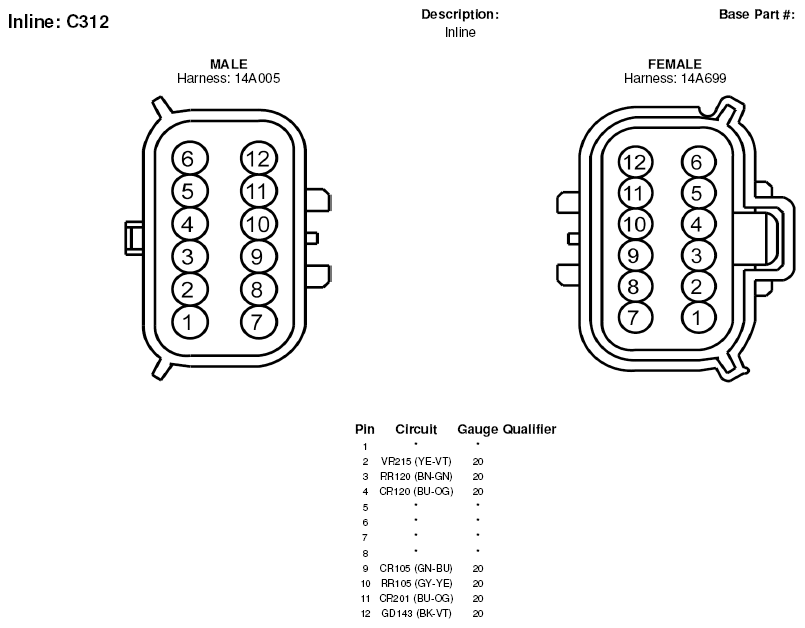

Fig 18: Inline Connector End View (C312)

G05182600

Courtesy of FORD MOTOR CO.

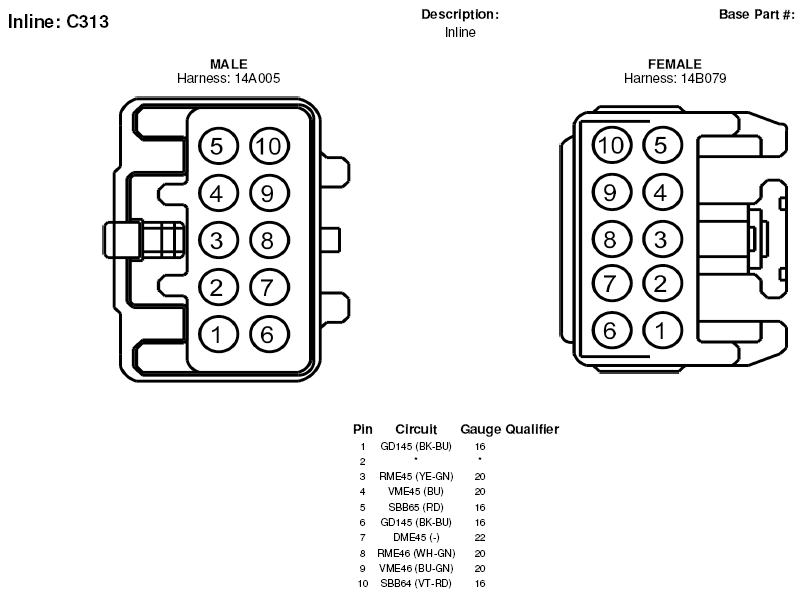

Fig 19: Inline Connector End View (C313)

G05182601

Courtesy of FORD MOTOR CO.

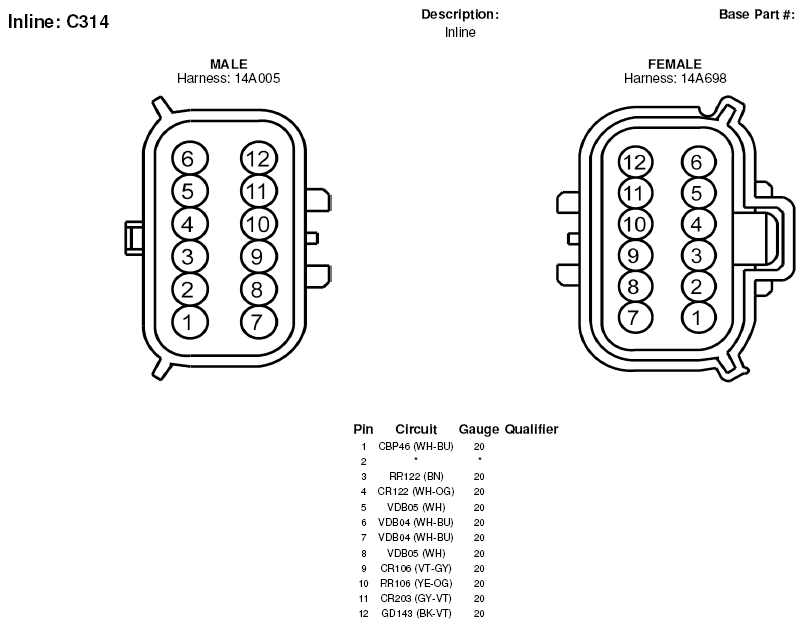

Fig 20: Inline Connector End View (C314)

G05182602

Courtesy of FORD MOTOR CO.

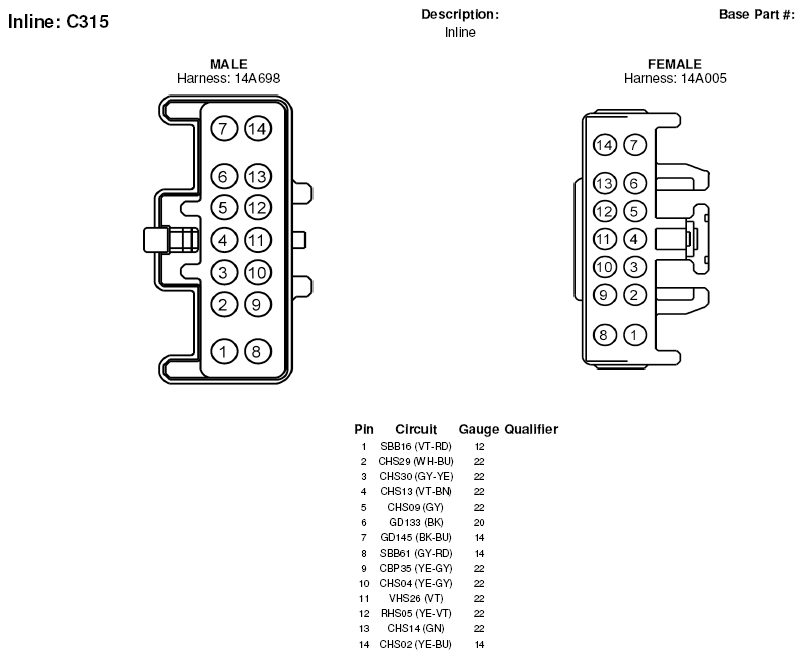

Fig 21: Inline Connector End View (C315)

G05182603

Courtesy of FORD MOTOR CO.

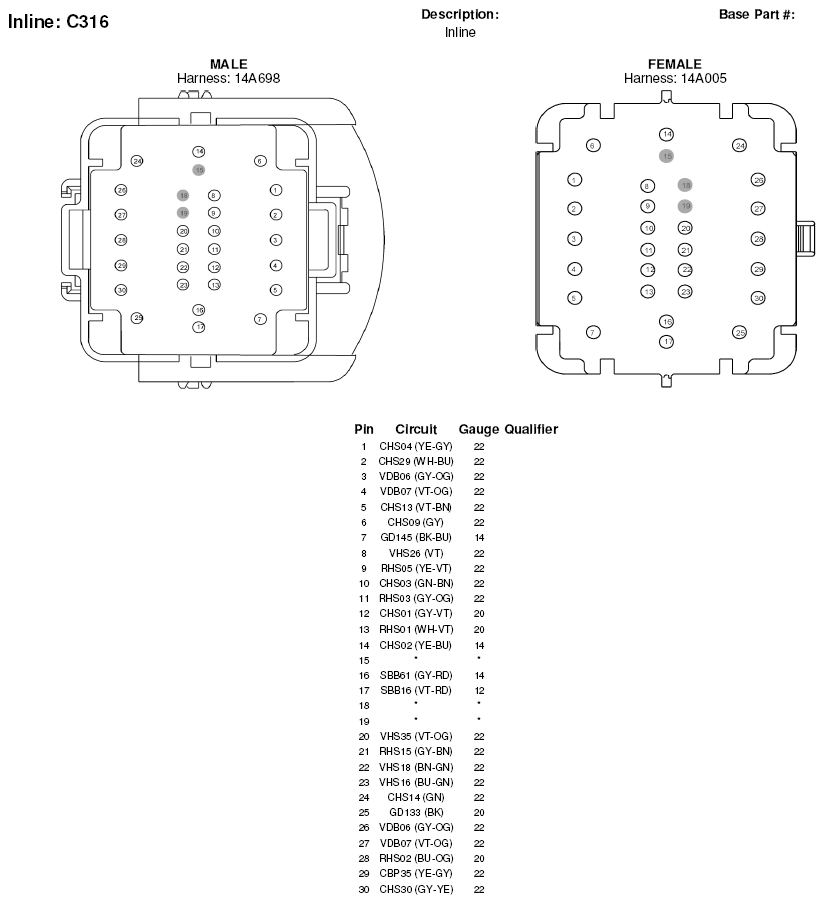

Fig 22: Inline Connector End View (C316)

G05182604

Courtesy of FORD MOTOR CO.

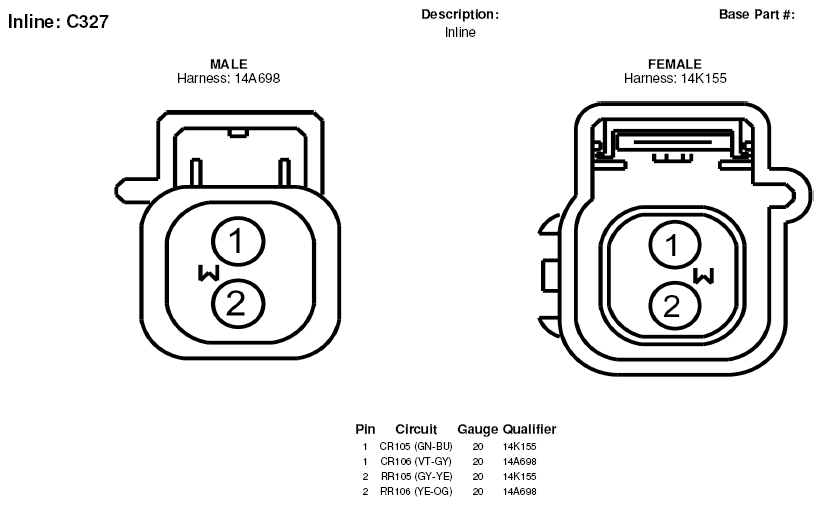

Fig 23: Inline Connector End View (C327)

G05182605

Courtesy of FORD MOTOR CO.

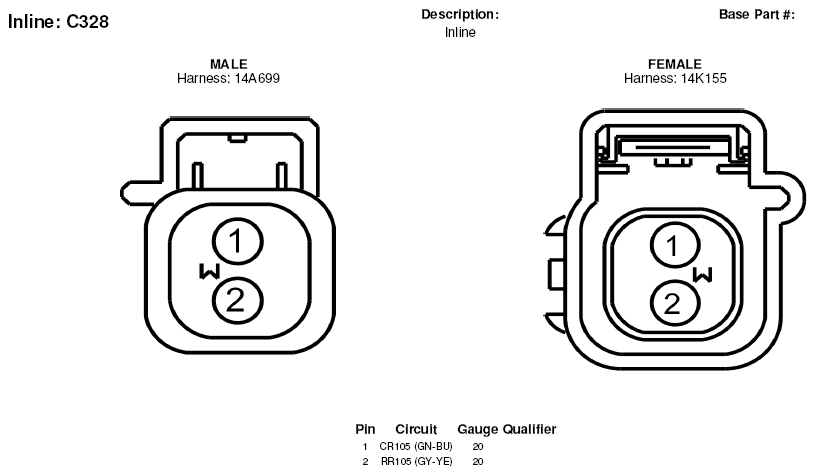

Fig 24: Inline Connector End View (C328)

G05182606

Courtesy of FORD MOTOR CO.

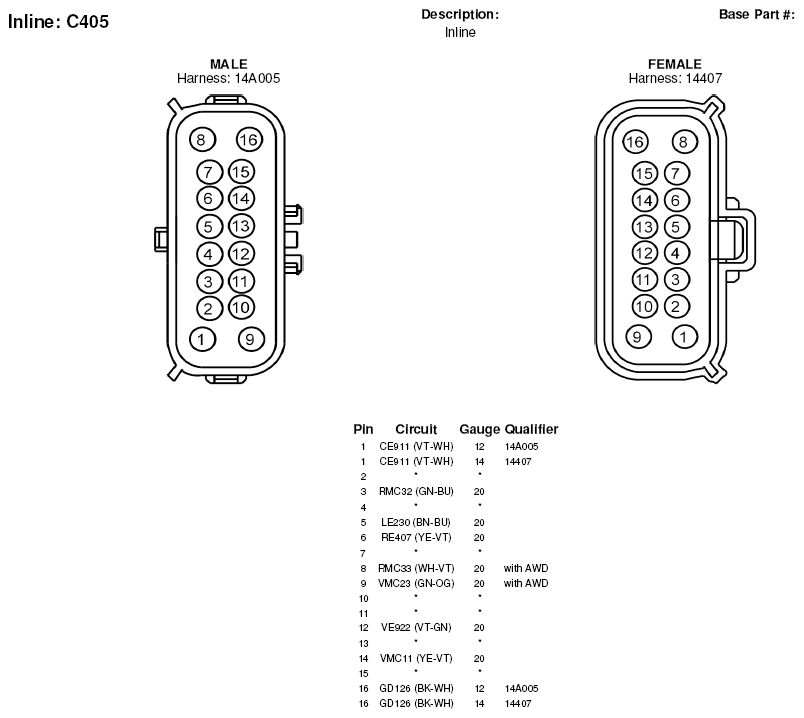

Fig 25: Inline Connector End View (C405)

G05182620

Courtesy of FORD MOTOR CO.

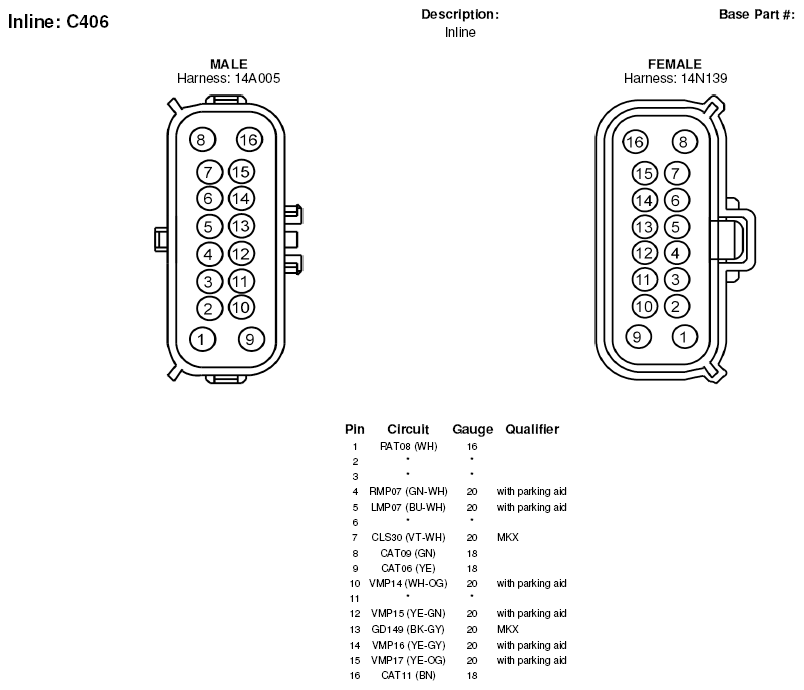

Fig 26: Inline Connector End View (C406)

G05182621

Courtesy of FORD MOTOR CO.

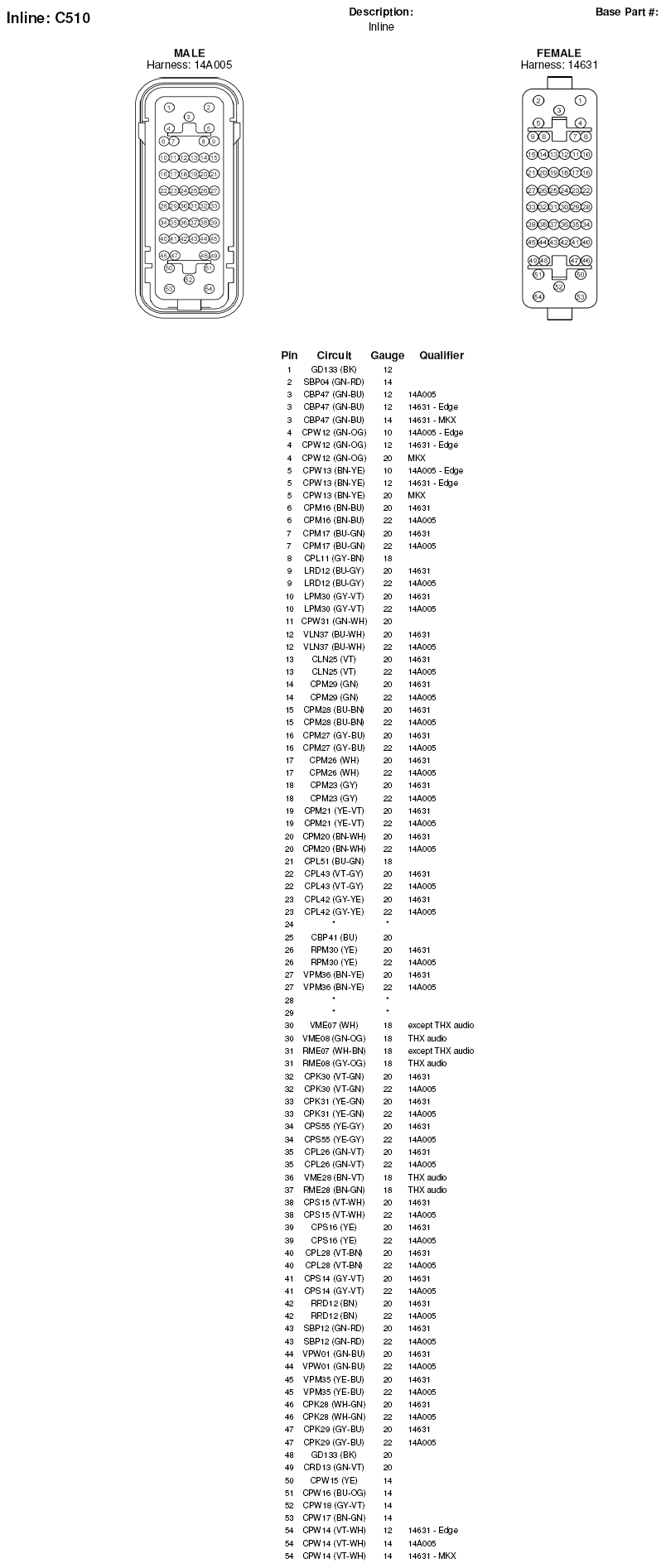

Fig 27: Inline Connector End View (C510)

G05182643

Courtesy of FORD MOTOR CO.

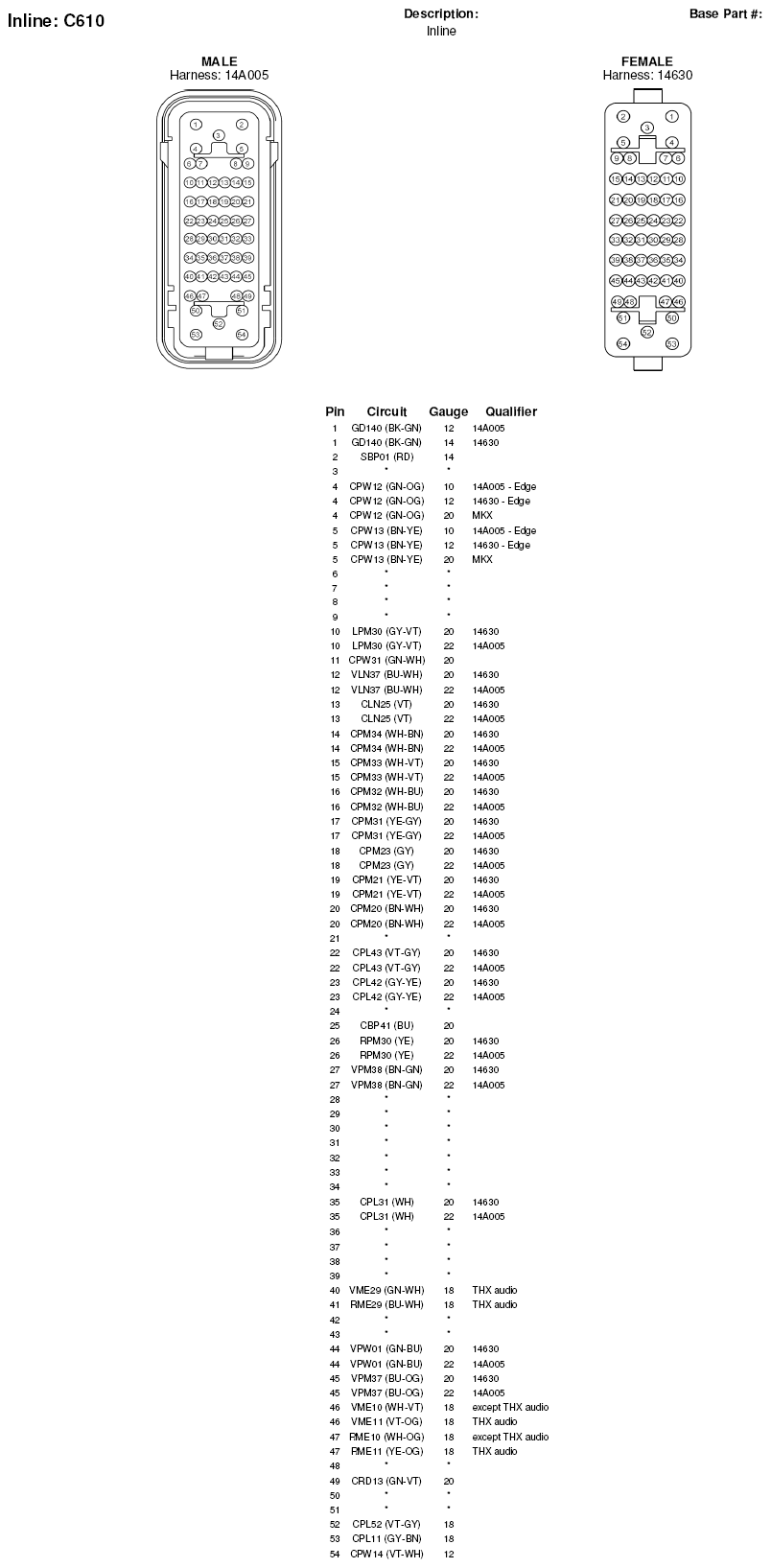

Fig 28: Inline Connector End View (C610)

G05182658

Courtesy of FORD MOTOR CO.

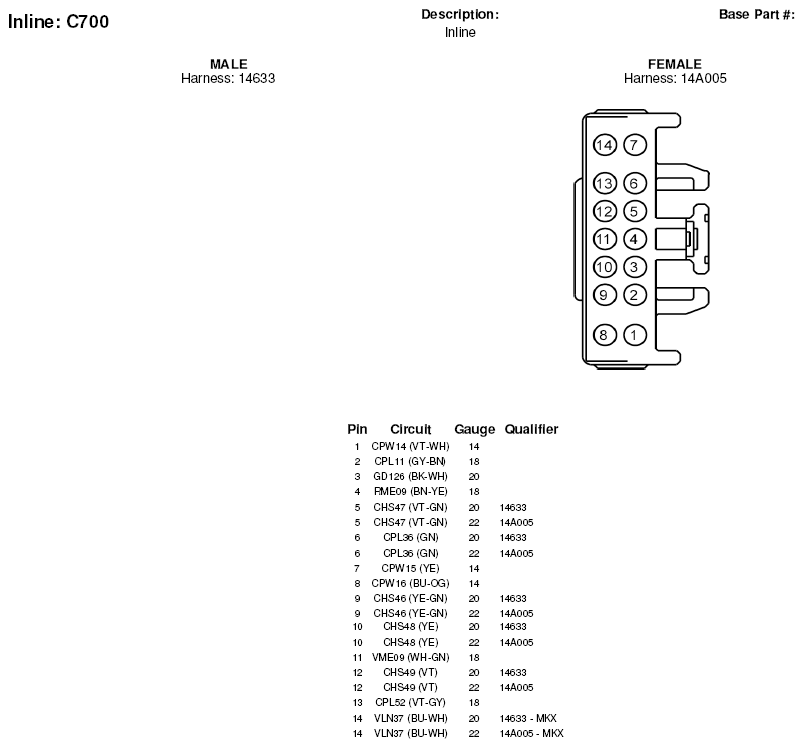

Fig 29: Inline Connector End View (C700)

G05182667

Courtesy of FORD MOTOR CO.

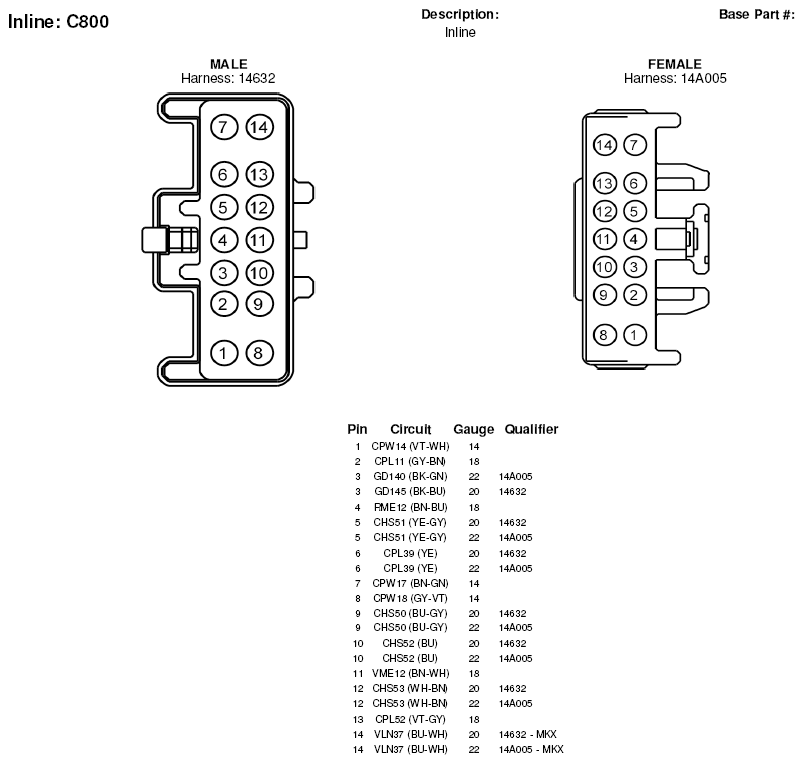

Fig 30: Inline Connector End View (C800)

G05182673

Courtesy of FORD MOTOR CO.

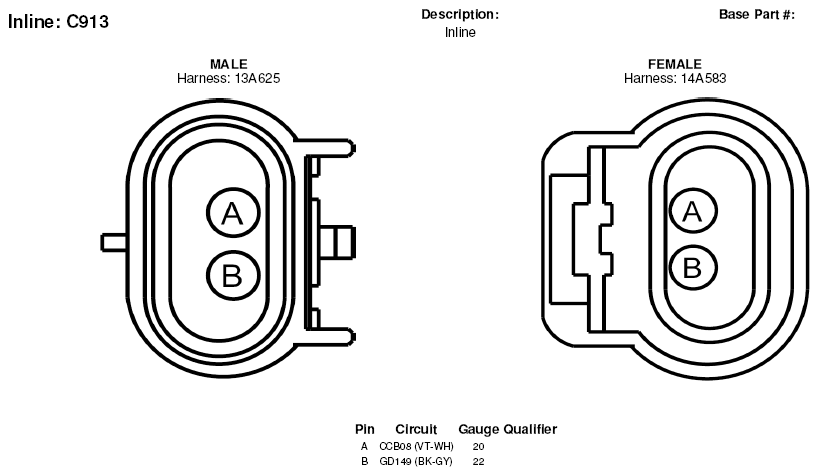

Fig 31: Inline Connector End View (C913)

G05182685

Courtesy of FORD MOTOR CO.

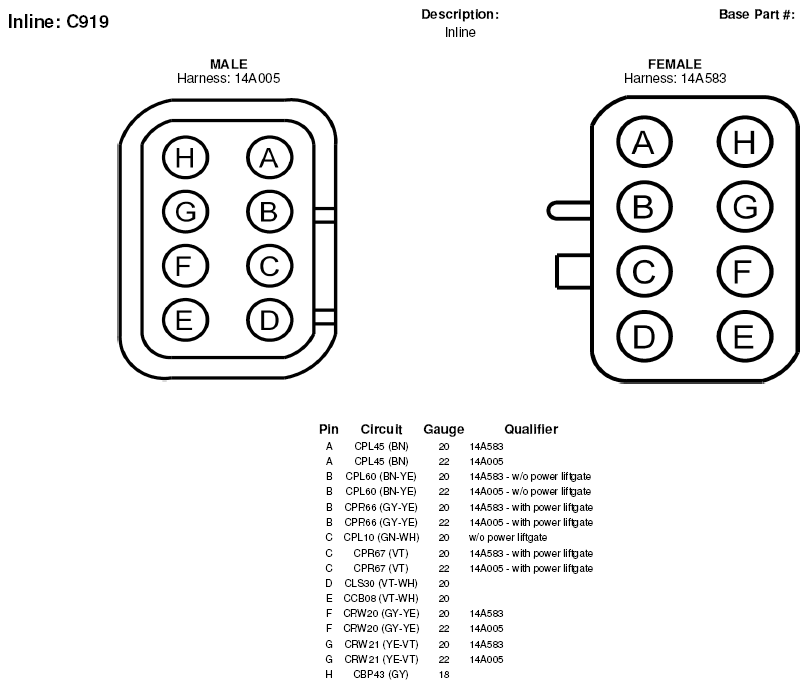

Fig 32: Inline Connector End View (C919)

G05182687

Courtesy of FORD MOTOR CO.

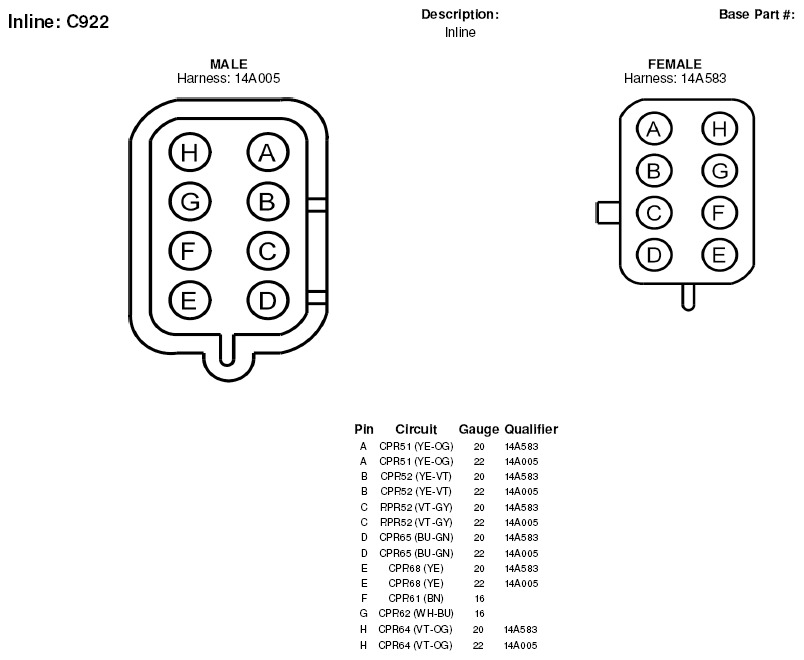

Fig 33: Inline Connector End View (C922)

G05182689

Courtesy of FORD MOTOR CO.

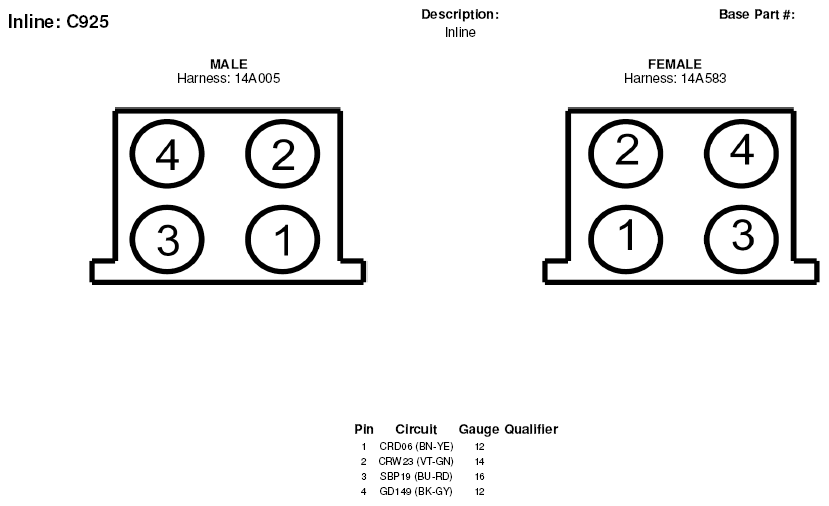

Fig 34: Inline Connector End View (C925)

G05182691

Courtesy of FORD MOTOR CO.

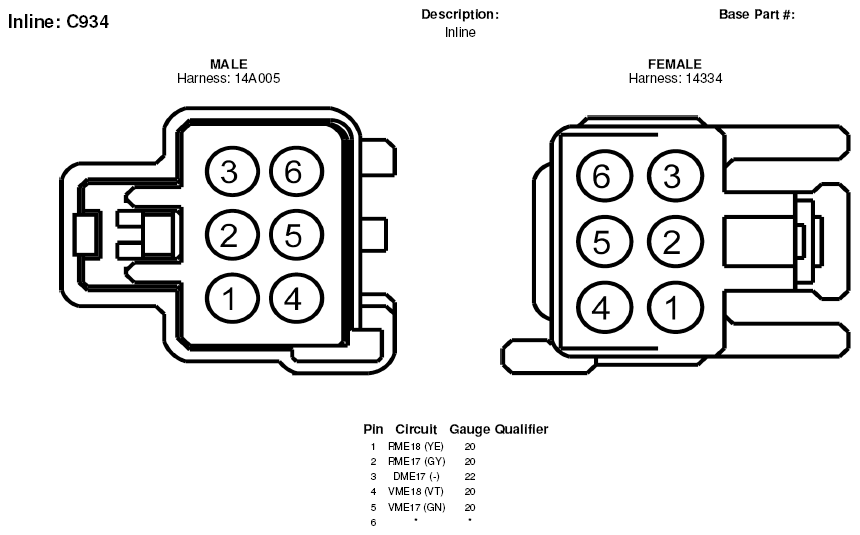

Fig 35: Inline Connector End View (C934)

G05182694

Courtesy of FORD MOTOR CO.
