In-Vehicle Temperature Sensor Connector

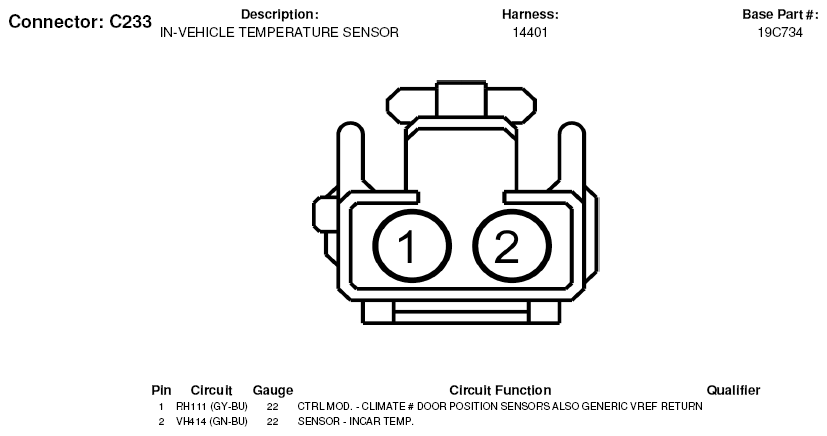

Fig 1: In-Vehicle Temperature Sensor Connector End View (C233)

G05182575

Courtesy of FORD MOTOR CO.
