Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector Views
>>
Generator Connectors
Generator Connectors

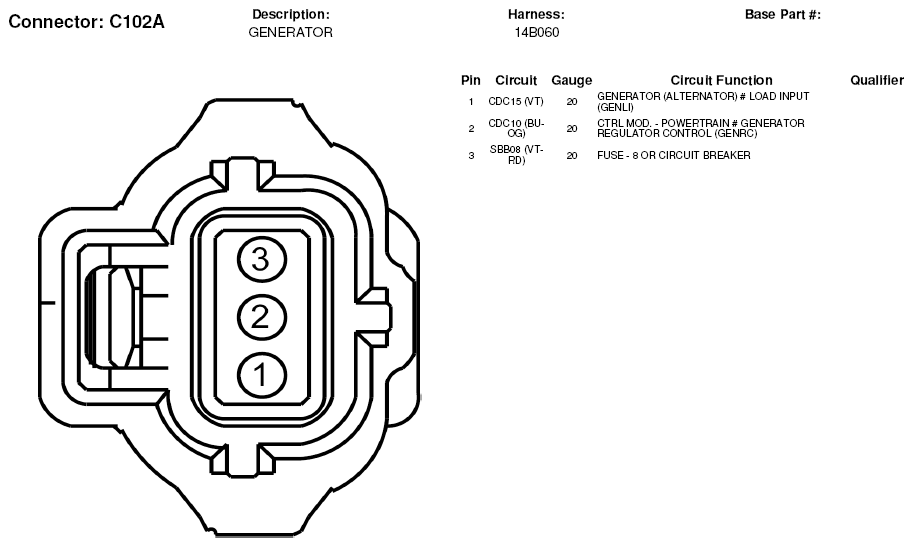

Fig 1: Generator Connector End View (C102A)
Courtesy of FORD MOTOR CO.
Fig 2: Generator Connector End View (C102B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
