Parking Aid Module Connector
Parking Aid Module Connector

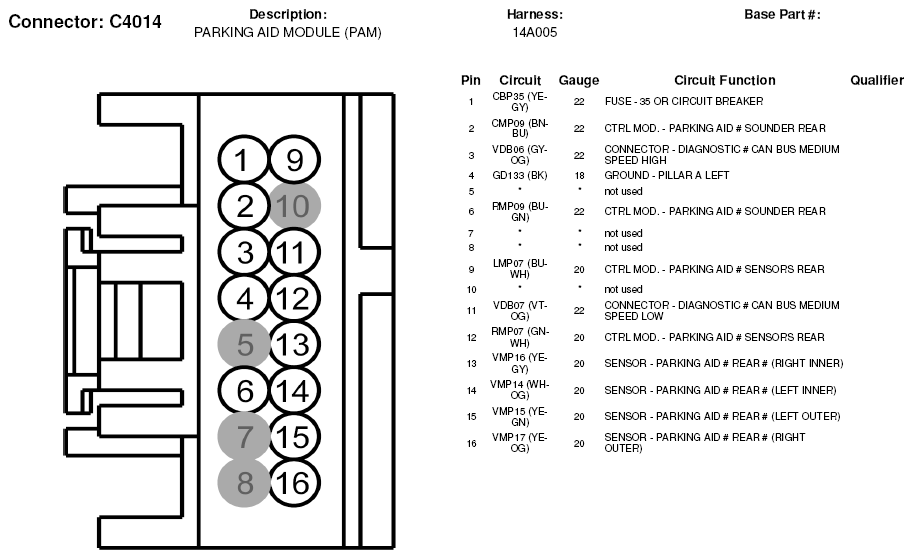

Fig 1: Parking Aid Module Connector End View (C4014)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
