Liftgate Rear Control Switch Connector

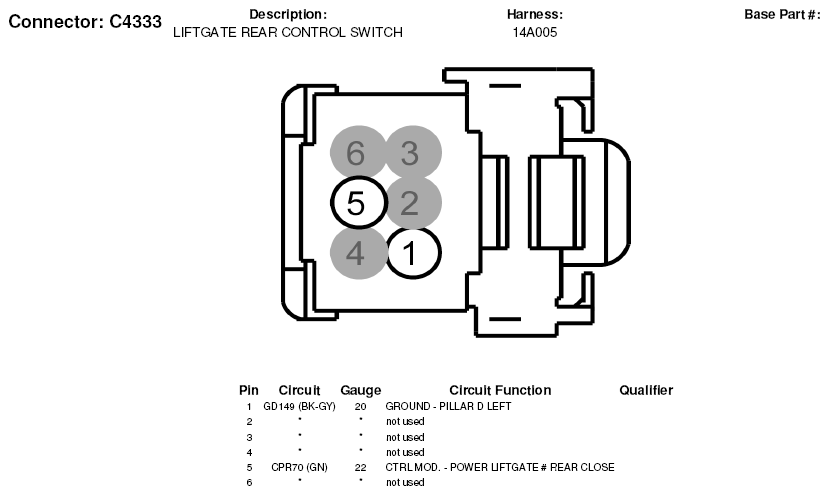

Fig 1: Liftgate Rear Control Switch Connector End View (C4333)

G05182821

Courtesy of FORD MOTOR CO.
