Ford
>>
2007
>>
Edge SEL Plus, AWD
>>
Repair and Diagnosis (Single Page)
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
Connector Views
>>
Keyless Entry Keypad Connector
Keyless Entry Keypad Connector

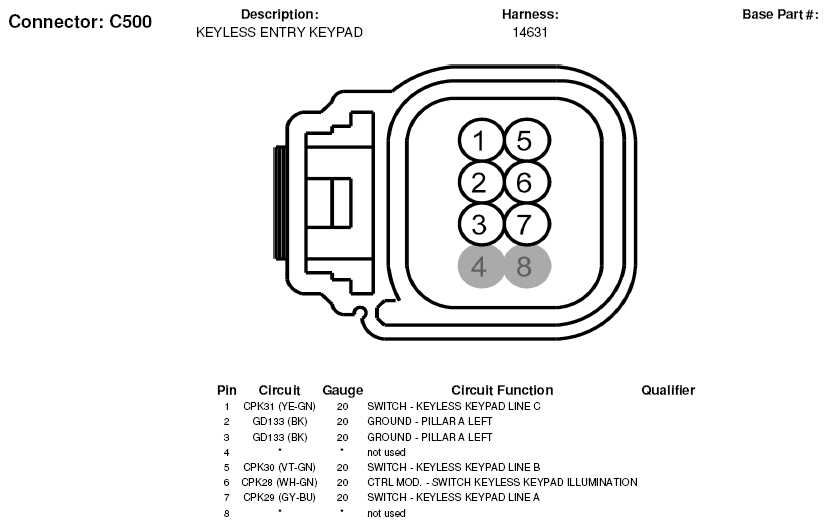

Fig 1: Keyless Entry Keypad Connector End View (C500)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
