Stability Control Sensor Cluster Connector

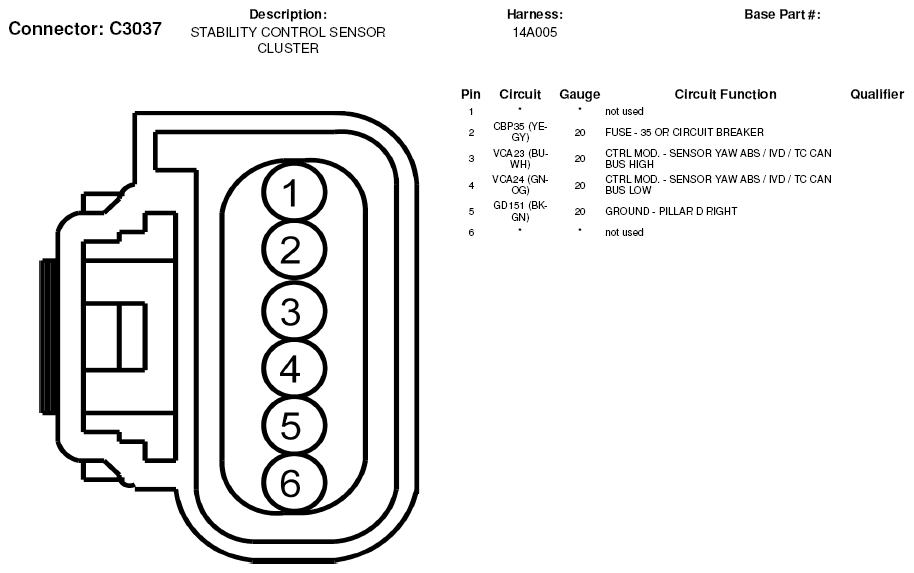

Fig 1: Stability Control Sensor Cluster Connector End View (C3037)

G05182759

Courtesy of FORD MOTOR CO.
