Fuel Injector Connectors

Fig 1: Fuel Injector 1 Connector End View (C181)
G05182547Courtesy of FORD MOTOR CO.

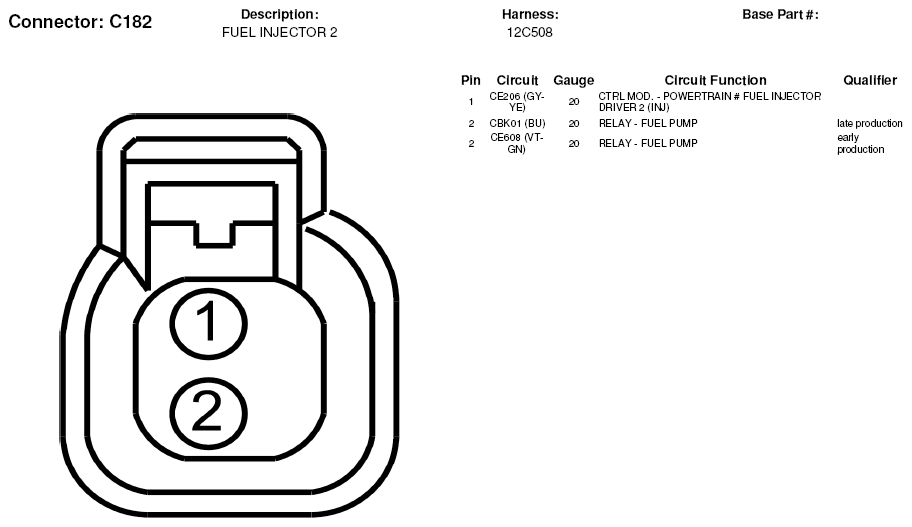

Fig 2: Fuel Injector 2 Connector End View (C182)
G05182548Courtesy of FORD MOTOR CO.

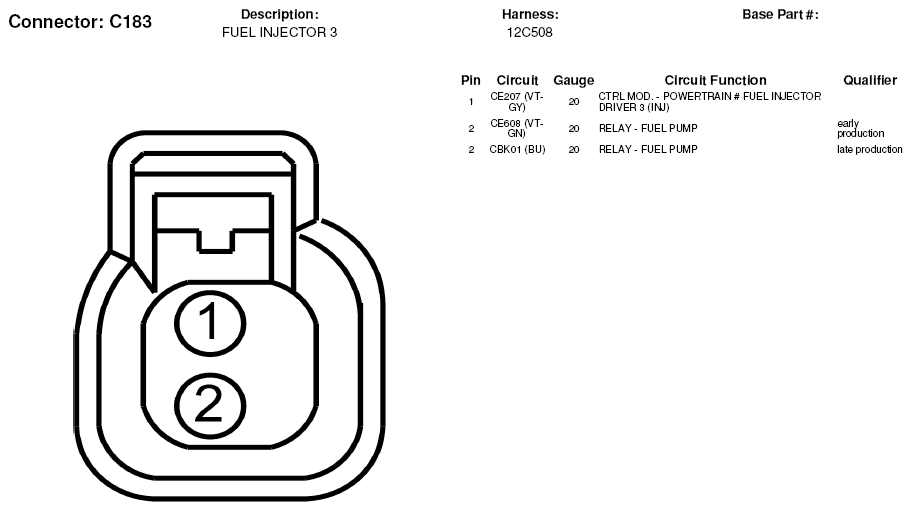

Fig 3: Fuel Injector 3 Connector End View (C183)
G05182549Courtesy of FORD MOTOR CO.
Fig 4: Fuel Injector 4 Connector End View (C184)
G05182550Courtesy of FORD MOTOR CO.
Fig 5: Fuel Injector 5 Connector End View (C185)
G05182551Courtesy of FORD MOTOR CO.

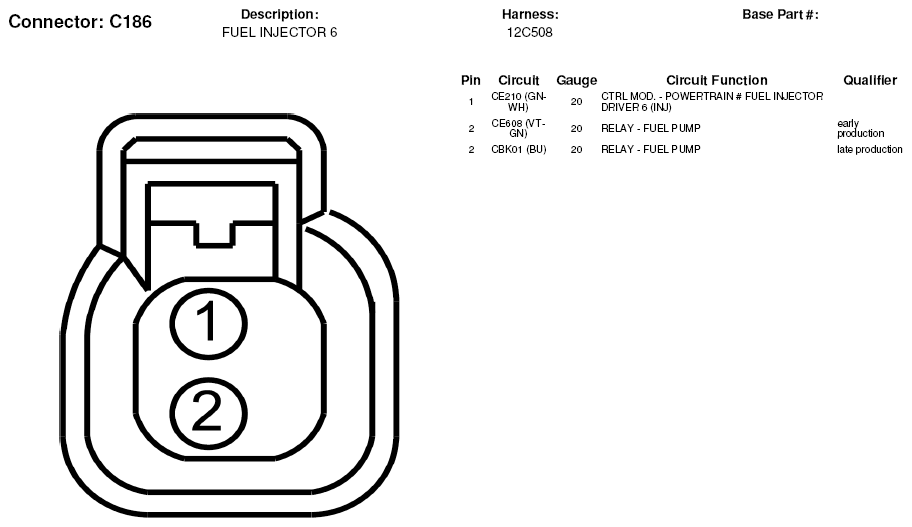

Fig 6: Fuel Injector 6 Connector End View (C186)
G05182552Courtesy of FORD MOTOR CO.
