Side Air Curtain Module Connector

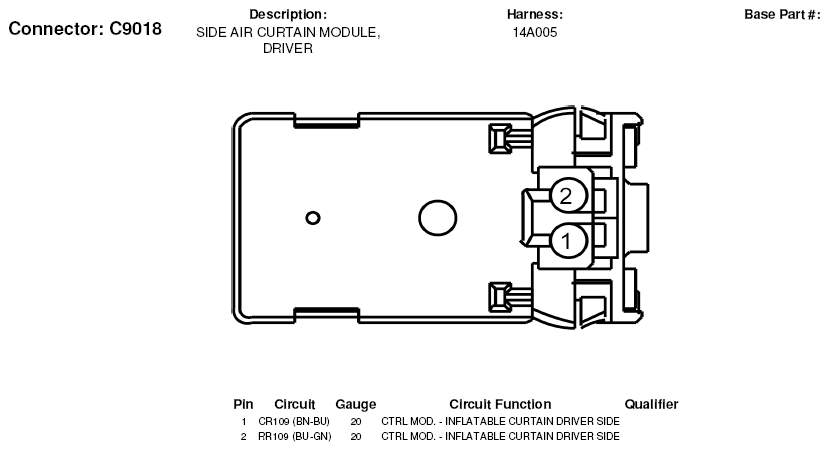

Fig 1: Side Air Curtain Module Connector End View (C9018)

G05182836

Courtesy of FORD MOTOR CO.

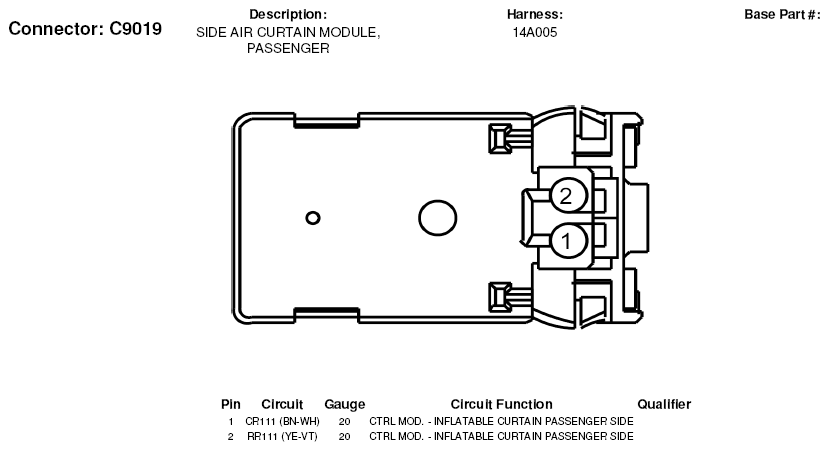

Fig 2: Side Air Curtain Module Connector End View (C9019)

G05182837

Courtesy of FORD MOTOR CO.
