Wiper and Washer System - Exploded View, Front

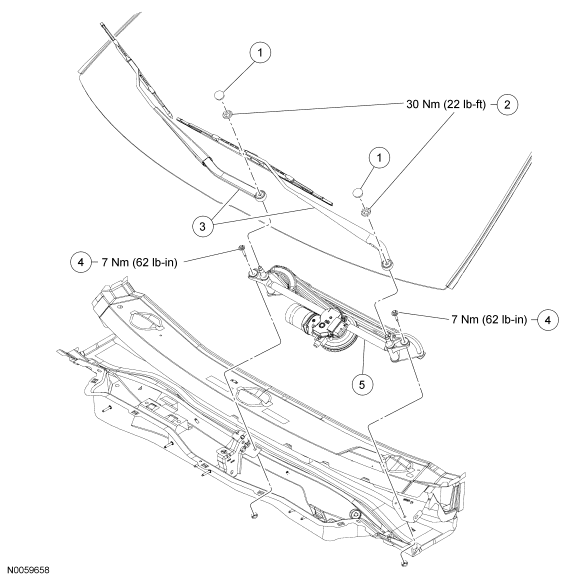

Fig 1: Exploded View Of Front Wiper & Washer System With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	17C526	Windshield wiper pivot arm nut cover
2	W708841	Windshield wiper pivot arm nut
3	17526 RH/ 17527 LH	Windshield wiper pivot arms
4	W707532	Windshield wiper mounting arm and pivot shaft assembly bolts (2 required)
5	17508	Windshield wiper mounting arm and pivot shaft assembly

1. For additional information, refer to the appropriate procedures.
