Safety Belt Retractor - Rear: Notes

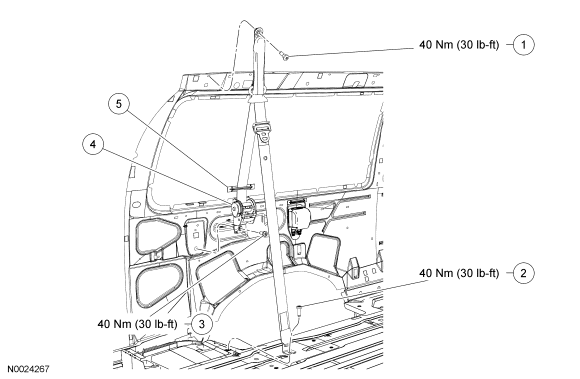

Fig 1: Exploded View Of 4th Row Safety Belt Retractor With Torque Specifications
GF0011504Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolt, safety belt shoulder guide (part of 611B68 RH/ 611B69 LH)
2 386273 Bolt, safety belt retractor anchor
3 - Bolt, safety belt retractor (part of 611B68 RH/ 611B69 LH)
4 611B68 RH/ 611B69 LH Safety belt retractor assembly
5 - Secondary safety belt guide

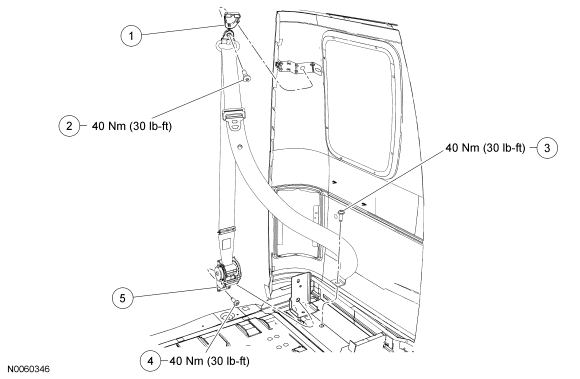

Fig 2: Exploded View Of 5th Row Safety Belt Retractor With Torque Specifications
GF0011505Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Safety belt shoulder guide cover
2 - Bolt, safety belt shoulder guide (part of 611B68 RH/ 611B69 LH)
3 386273 Bolt, safety belt retractor anchor
4 - Bolt, safety belt retractor (part of 611B68 RH/ 611B69 LH)
5 611B68 RH/ 611B69 LH Safety belt retractor assembly
