Fuel System - 6.0L Diesel: Notes

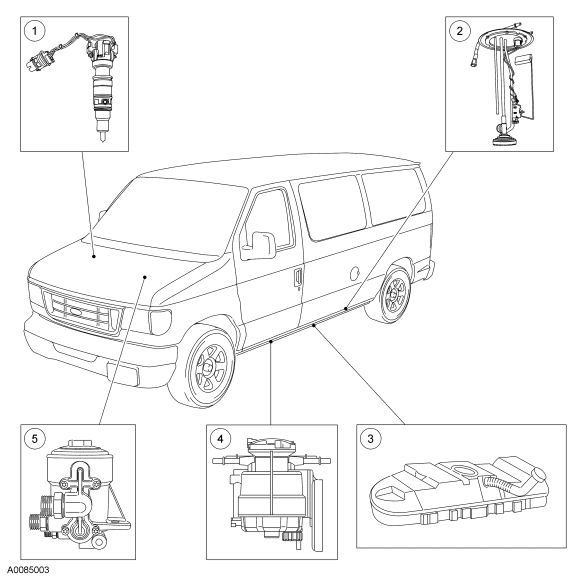

| Item | Part Number | Description |
|---|---|---|
| 1 | 9E527 | Fuel injector |
| 2 | 9275 | Fuel level sending unit |
| 3 | 9002 | Fuel tank (midship shown) |
| 4 | 9G282 | Fuel conditioning module |
| 5 | 9365 | Fuel filter |
The fuel system for the direct injection turbo (DIT) diesel:
- is controlled by the powertrain control module (PCM).
- utilizes an electric, frame-mounted fuel pump.
- incorporates a fuel filter and water separator assembly.
The electric fuel pump:
- draws fuel from the tank.
- circulates fuel under pressure through the fuel filter, the water separator and the pressure regulator to the cylinder head fuel galleries and then to the fuel injectors.
- Excess fuel is returned to the fuel tank through the fuel return hose.
