Master Window/Door Lock/Unlock Switch Connector

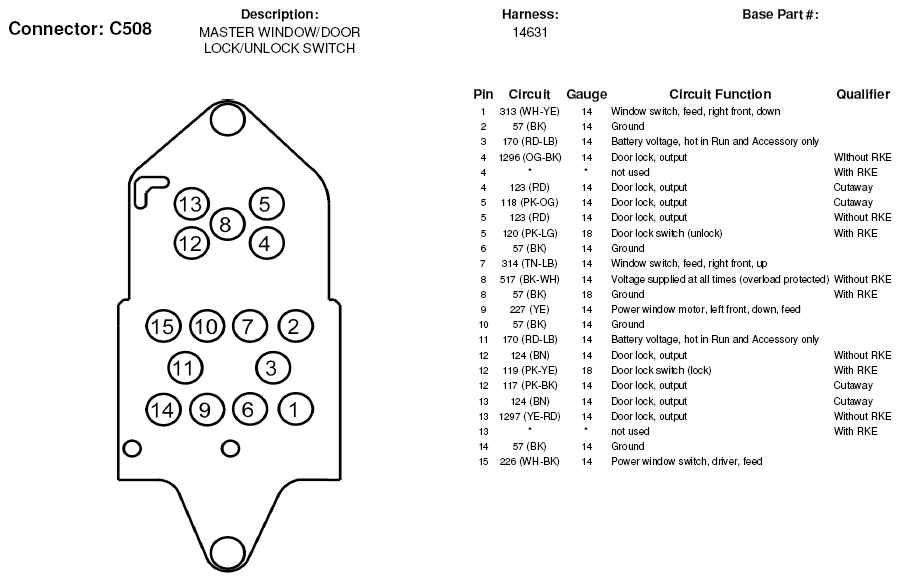

Fig 1: Master Window/Door Lock/Unlock Switch Connector End View (C508)

G05181266

Courtesy of FORD MOTOR CO.
