Manifold Absolute Pressure Sensor Connector

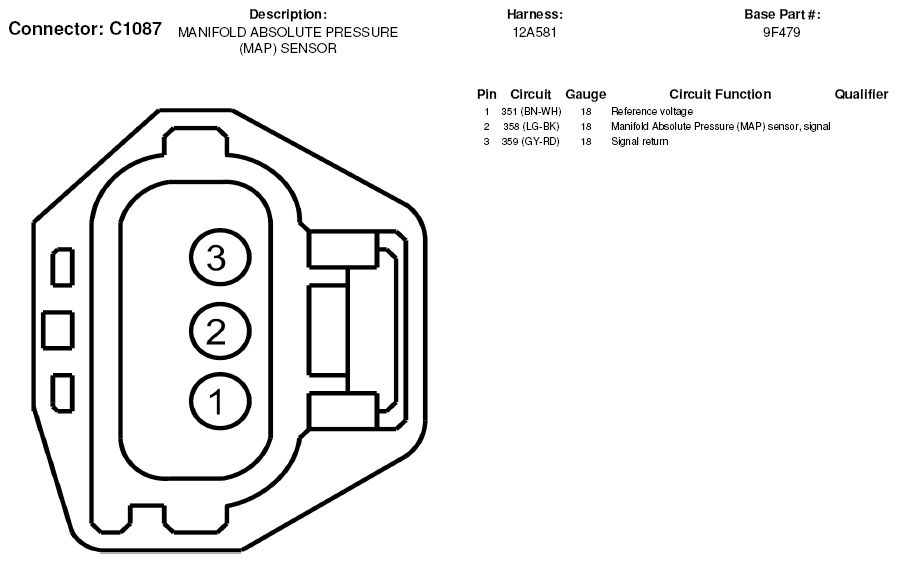

Fig 1: Manifold Absolute Pressure Sensor Connector End View (C1087)

G05181309

Courtesy of FORD MOTOR CO.
