Interior Lamp/ Map Lamp Assembly Connector

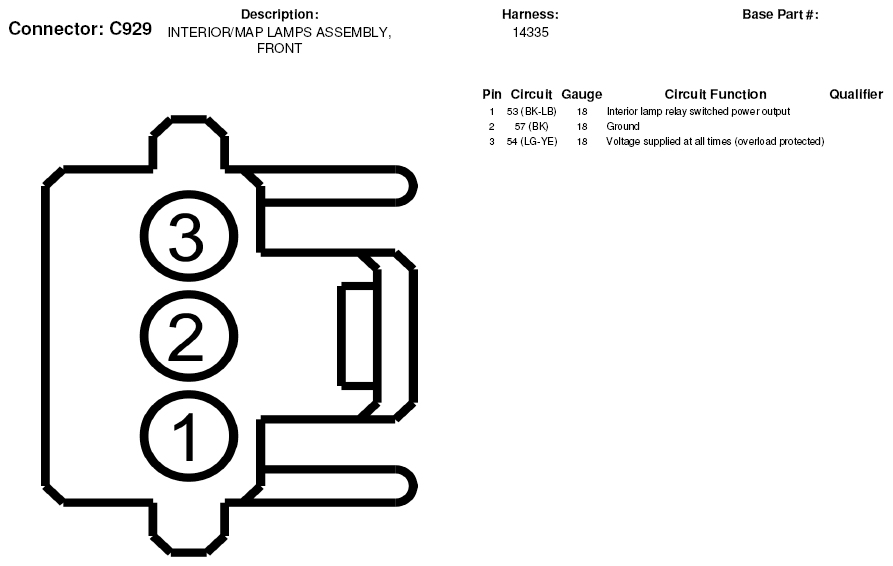

Fig 1: Interior Lamp/ Map Lamp Assembly Connector End View (C929)

G05181288

Courtesy of FORD MOTOR CO.
