Fuel Tank Pressure Sensor Connector

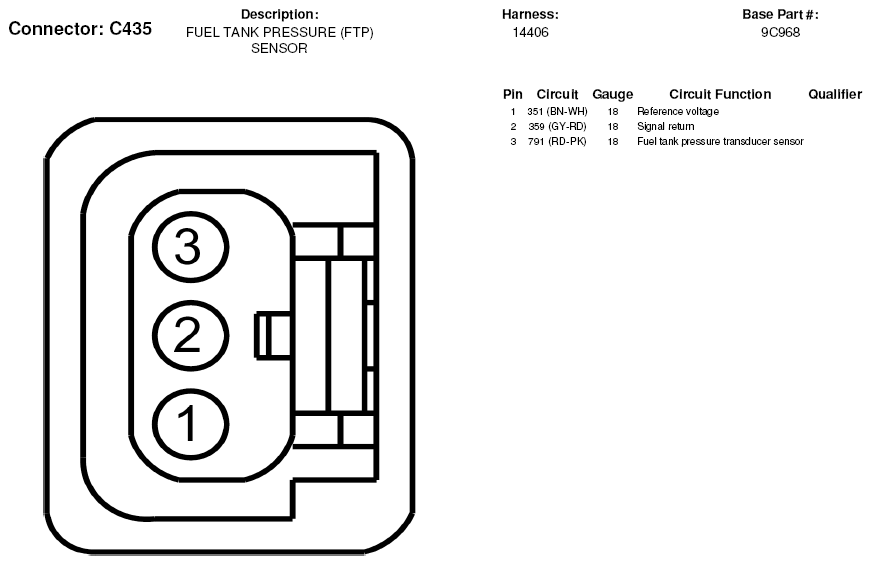

Fig 1: Fuel Tank Pressure Sensor Connector End View (C435)
G05181255Courtesy of FORD MOTOR CO.

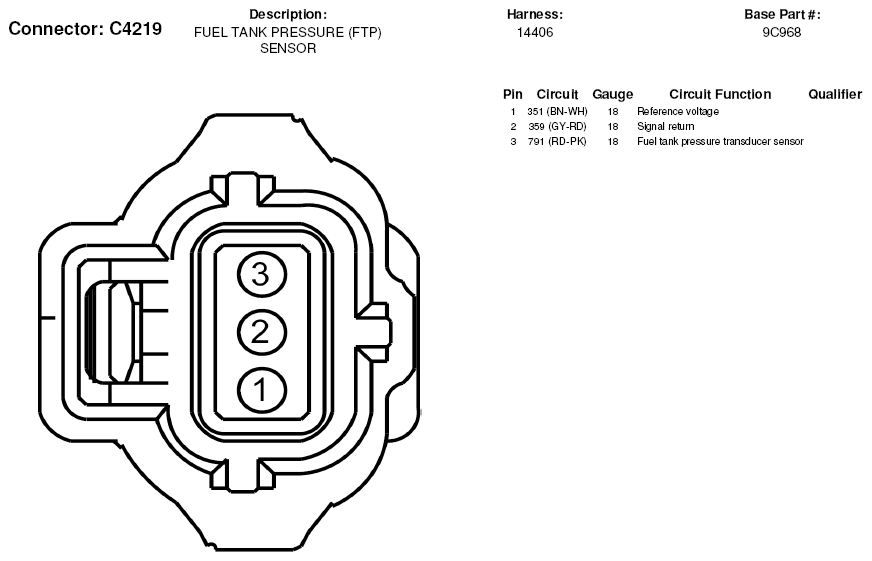

Fig 2: Fuel Tank Pressure Sensor Connector End View (C4219)
G05181432Courtesy of FORD MOTOR CO.
