Trailer Tow Connector
Trailer Tow Connector

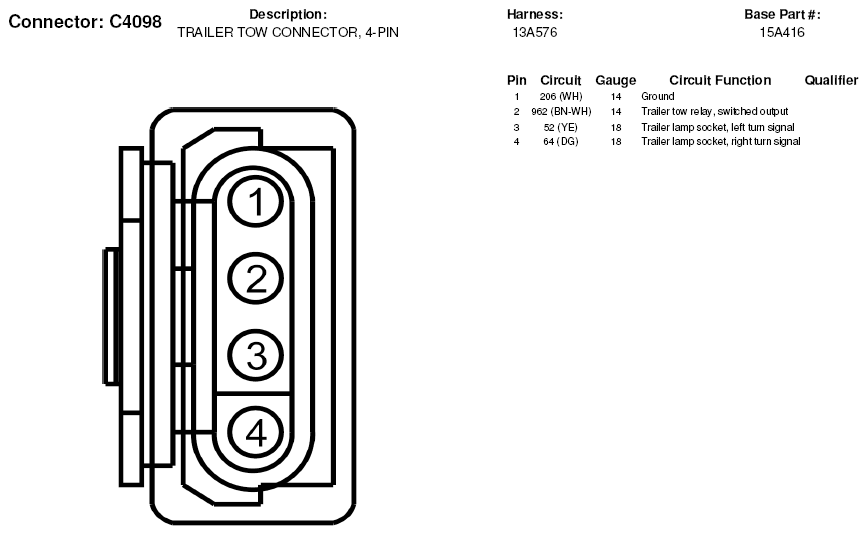

Fig 1: Trailer Tow Connector -4 Connector End View (C4098)
Courtesy of FORD MOTOR CO.

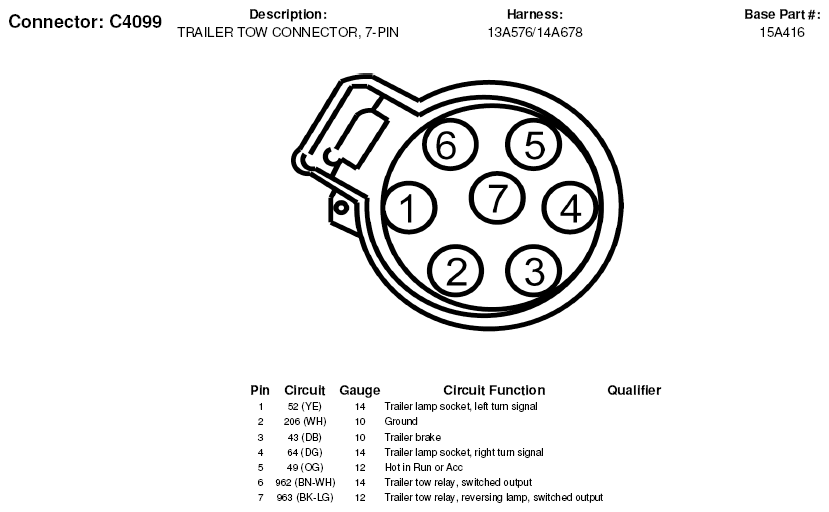

Fig 2: Trailer Tow Connector 7-Pin Connector End View (C4099)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
