Trailer Electronic Brake Control Connector
Trailer Electronic Brake Control Connector

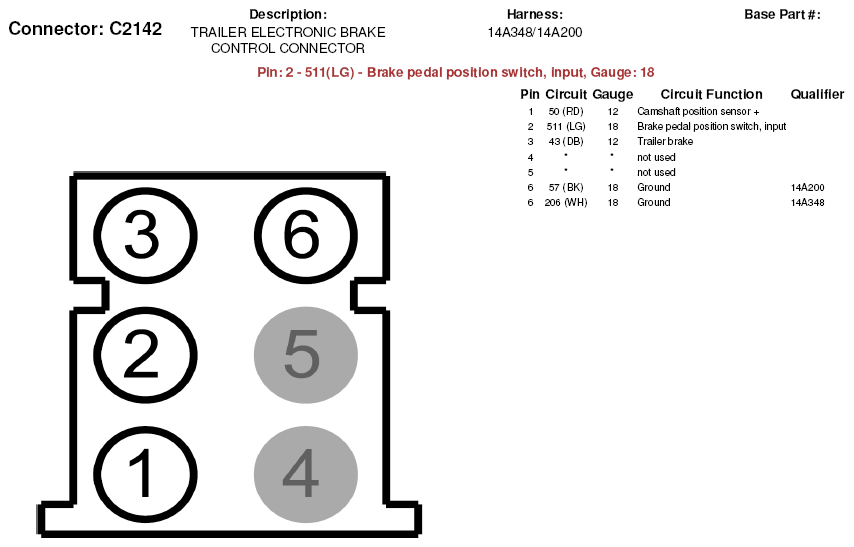

Fig 1: Trailer Electronic Brake Control Connector End View (C2142)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
