Power Window Motor Connectors

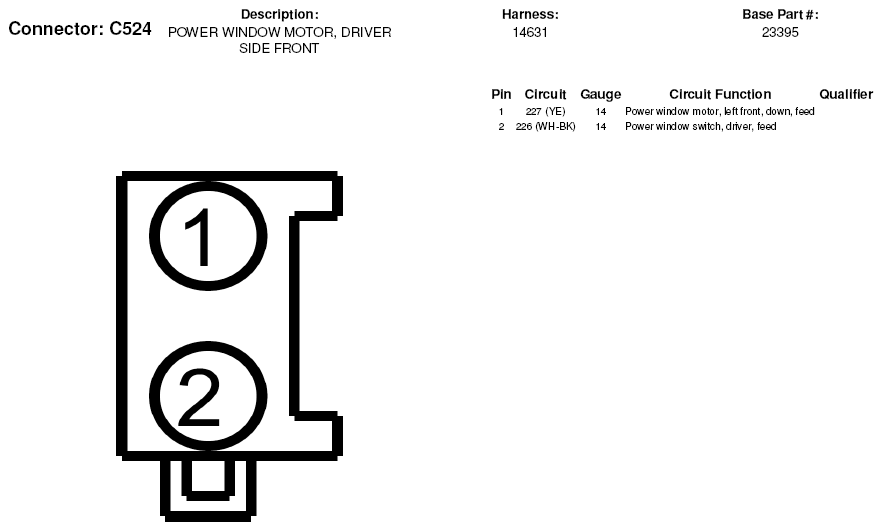

Fig 1: Power Window Motor Connector End View (C524)

G05181269

Courtesy of FORD MOTOR CO.

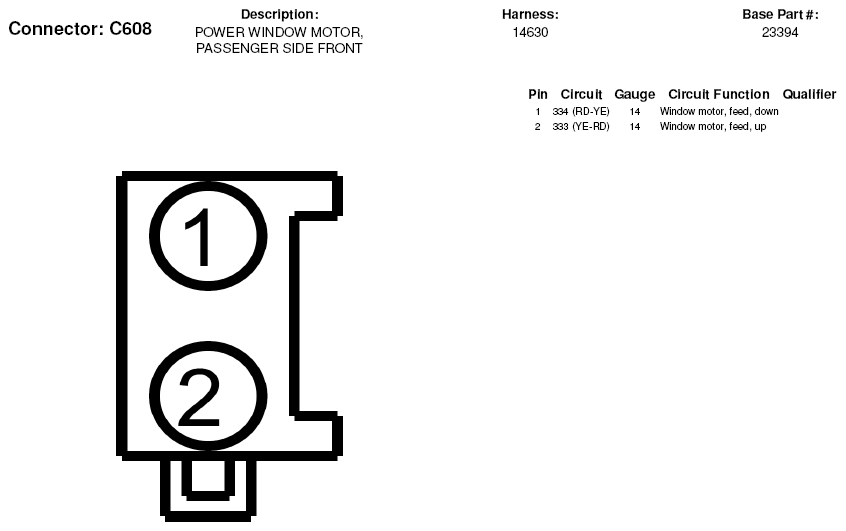

Fig 2: Power Window Motor Connector End View (C608)

G05181274

Courtesy of FORD MOTOR CO.
