Parking Aid Sensor Connector

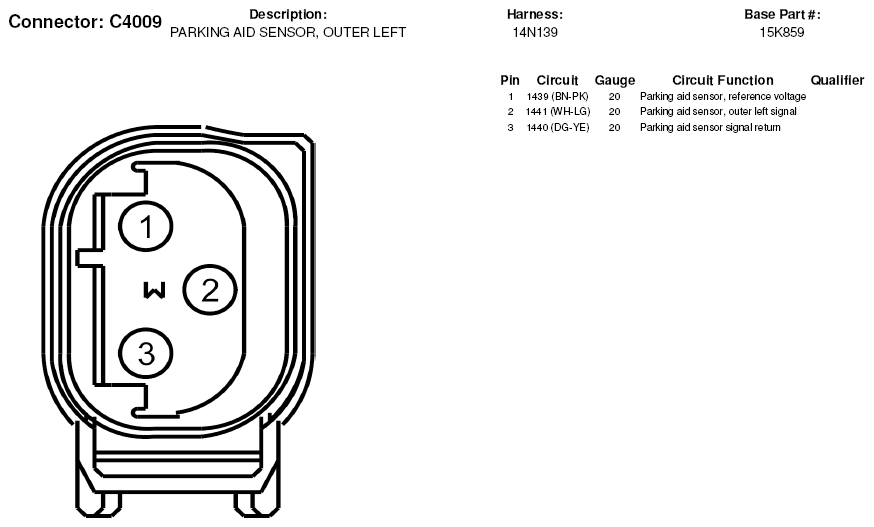

Fig 1: Parking Aid Sensor Connector End View (C4009)
G05181416Courtesy of FORD MOTOR CO.

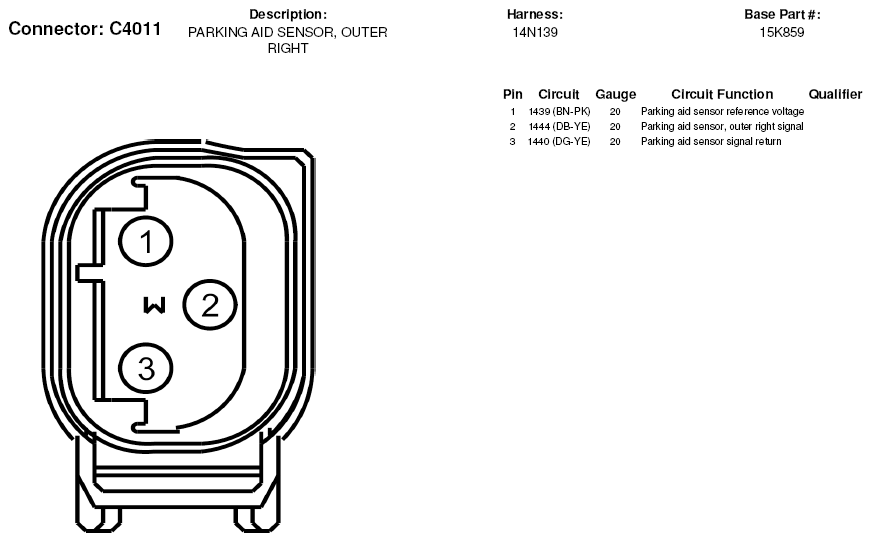

Fig 2: Parking Aid Sensor Connector End View (C4011)
G05181418Courtesy of FORD MOTOR CO.
Fig 3: Parking Aid Sensor Connector End View (C4012)
G05181419Courtesy of FORD MOTOR CO.
