Inline Connectors

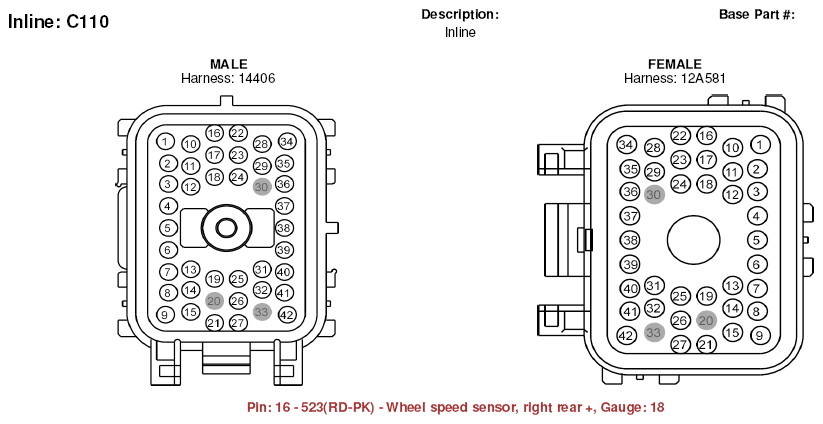

Fig 1: Inline Connector End View (C110) (1 Of 2)

G05181126

Courtesy of FORD MOTOR CO.

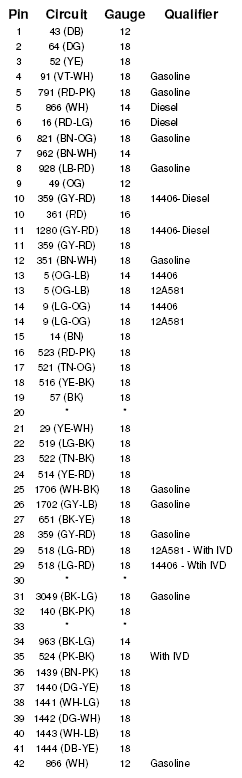

Fig 2: Inline Connector End View (C110) (2 Of 2)

G05181127

Courtesy of FORD MOTOR CO.

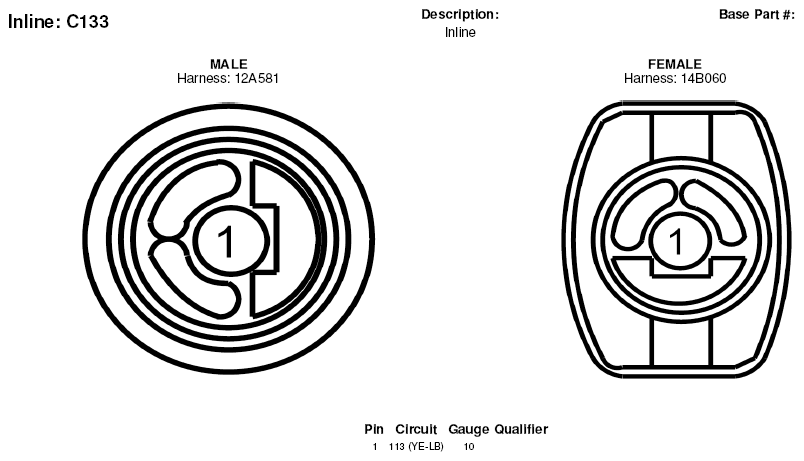

Fig 3: Inline Connector End View (C133)

G05181144

Courtesy of FORD MOTOR CO.

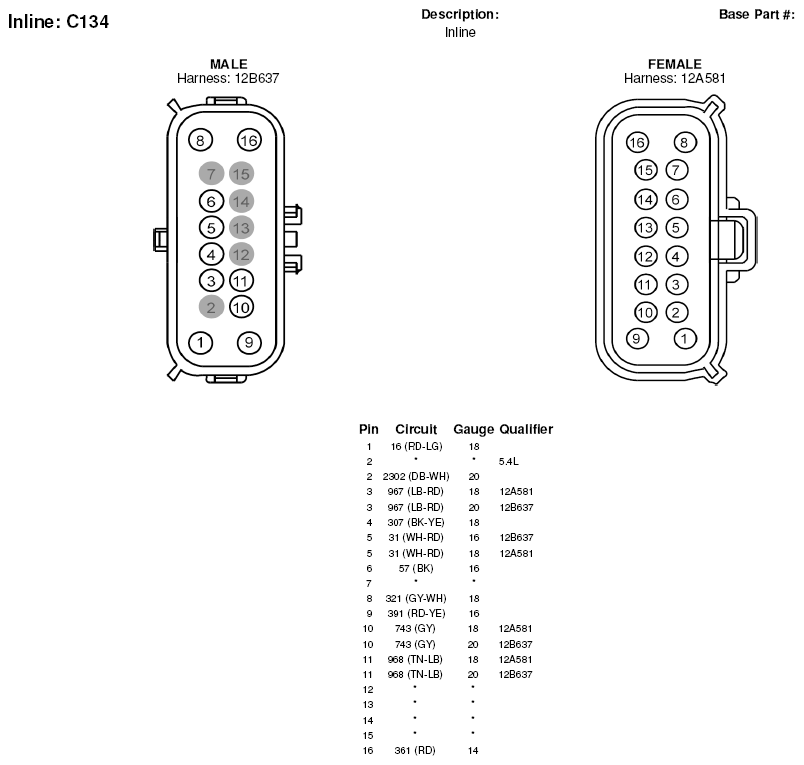

Fig 4: Inline Connector End View (C134)

G05181145

Courtesy of FORD MOTOR CO.

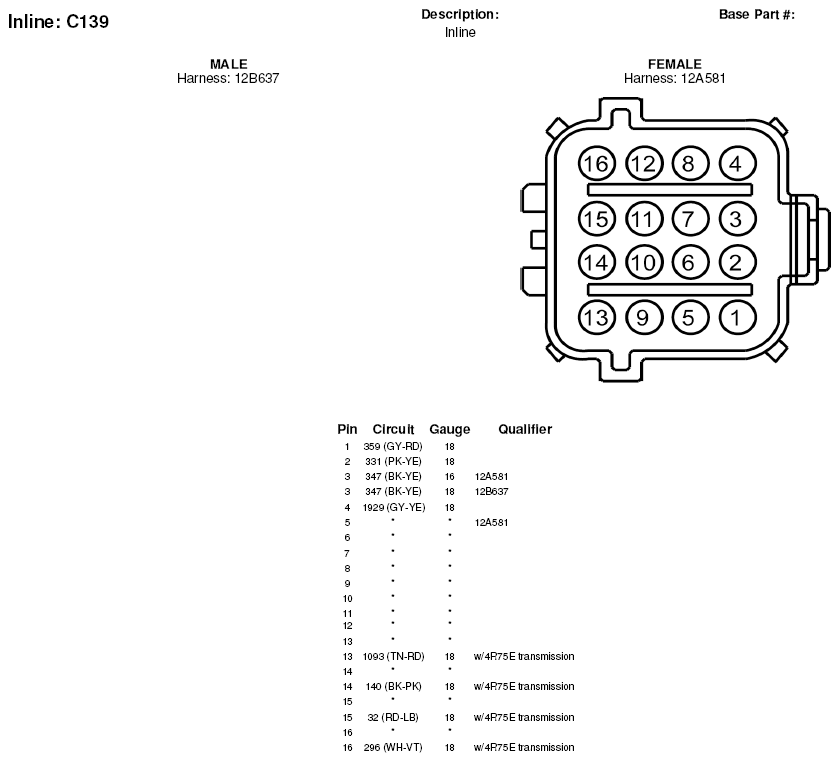

Fig 5: Inline Connector End View (C139)

G05181148

Courtesy of FORD MOTOR CO.

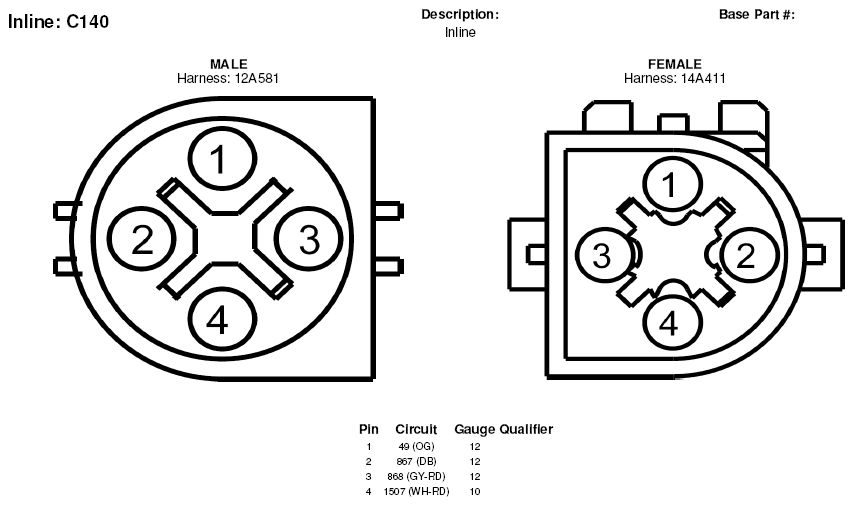

Fig 6: Inline Connector End View (C140)

G05181149

Courtesy of FORD MOTOR CO.

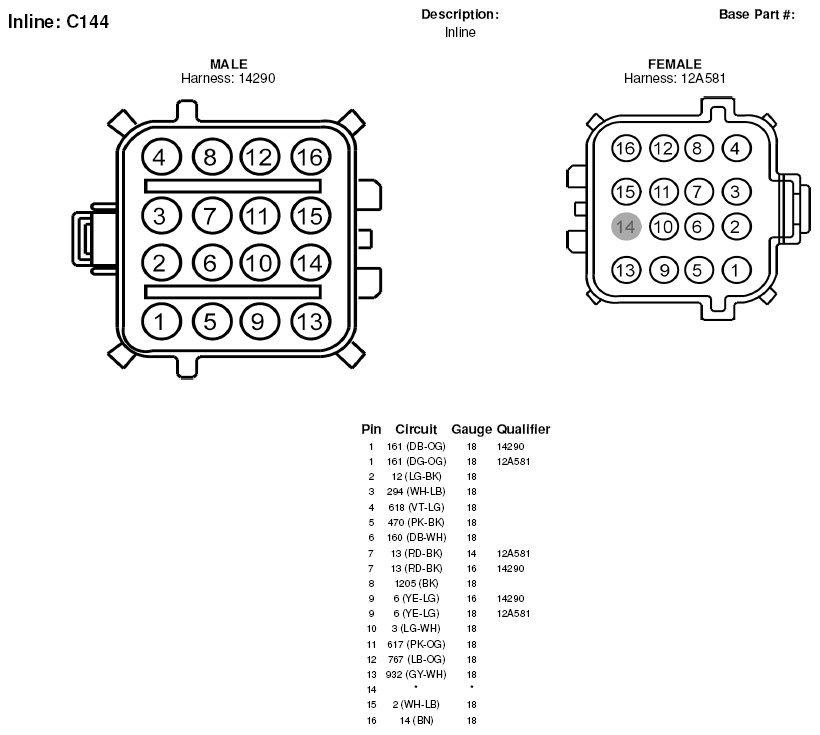

Fig 7: Inline Connector End View (C144)

G05181153

Courtesy of FORD MOTOR CO.

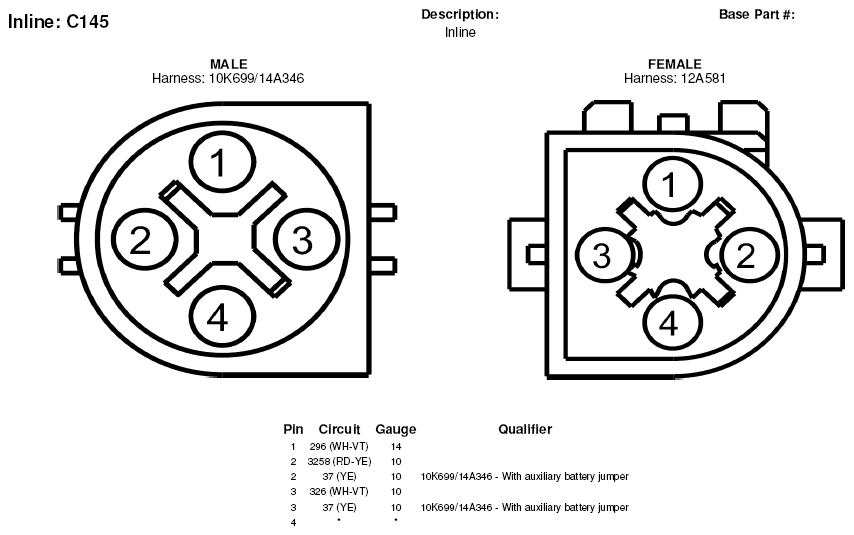

Fig 8: Inline Connector End View (C145)

G05181154

Courtesy of FORD MOTOR CO.

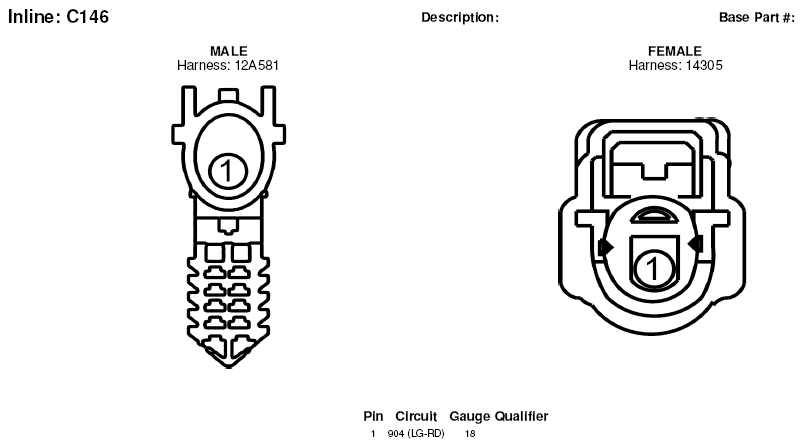

Fig 9: Inline Connector End View (C146)

G05181155

Courtesy of FORD MOTOR CO.

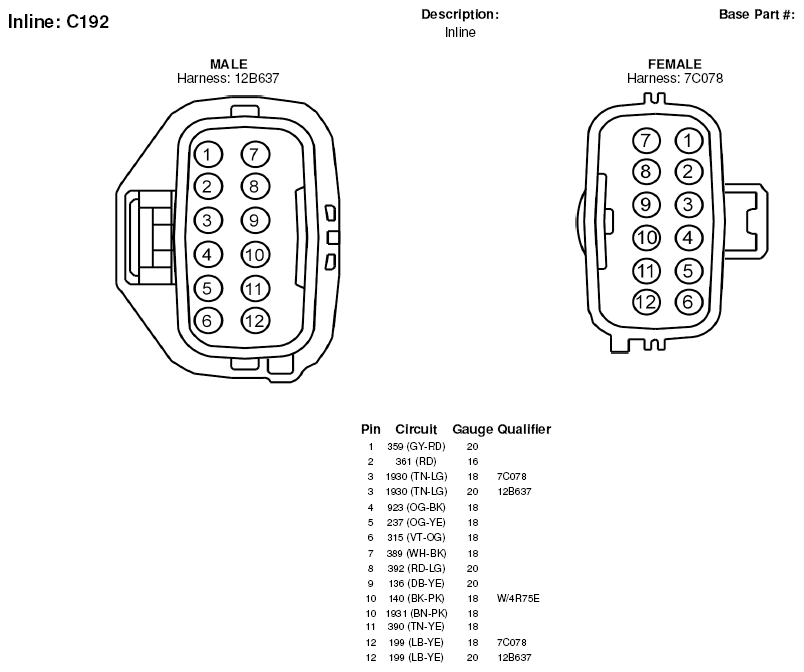

Fig 10: Inline Connector End View (C192)

G05181182

Courtesy of FORD MOTOR CO.

Fig 11: Inline Connector End View (C210)

G05181192

Courtesy of FORD MOTOR CO.

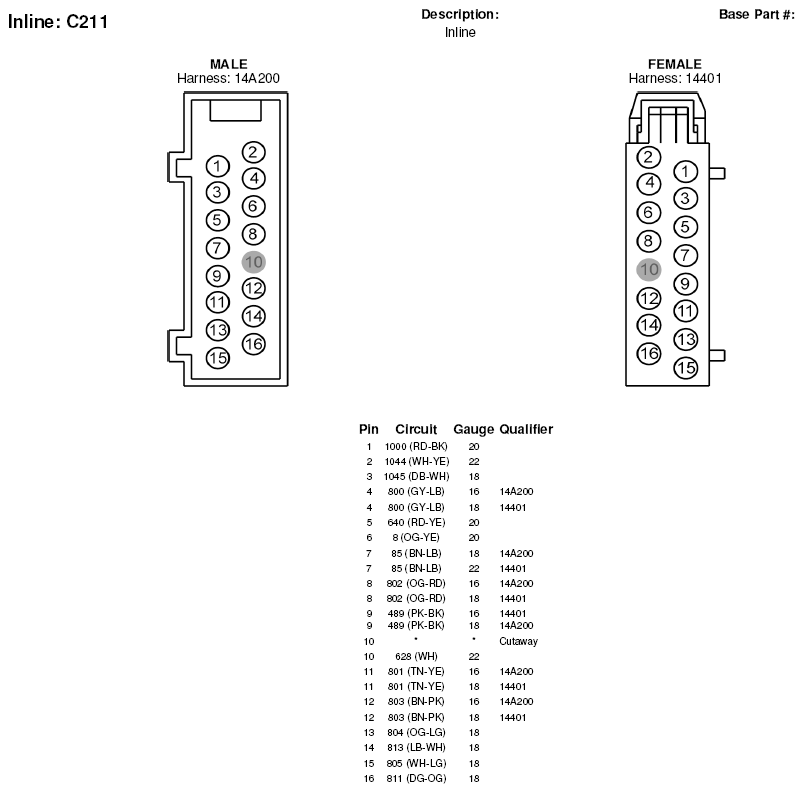

Fig 12: Inline Connector End View (C211)

G05181193

Courtesy of FORD MOTOR CO.

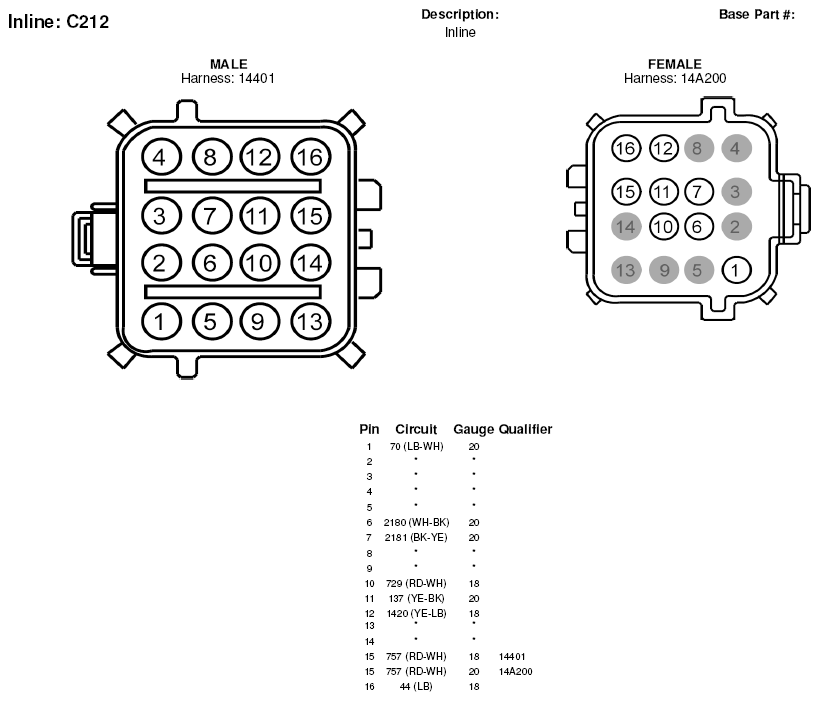

Fig 13: Inline Connector End View (C212)

G05181194

Courtesy of FORD MOTOR CO.

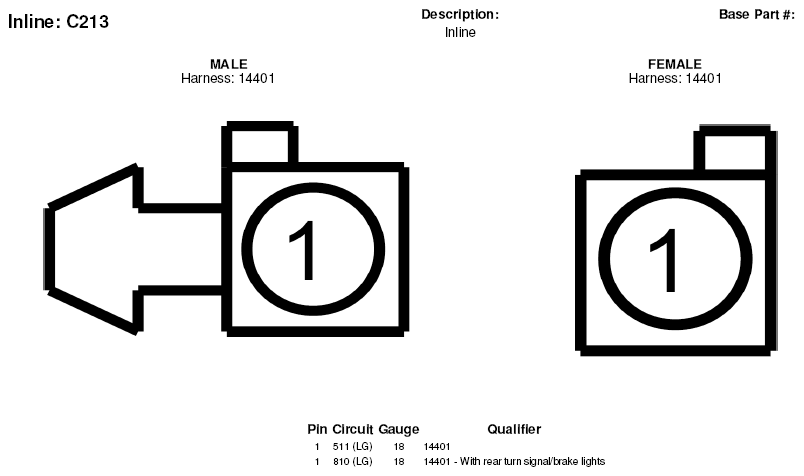

Fig 14: Inline Connector End View (C213)

G05181195

Courtesy of FORD MOTOR CO.

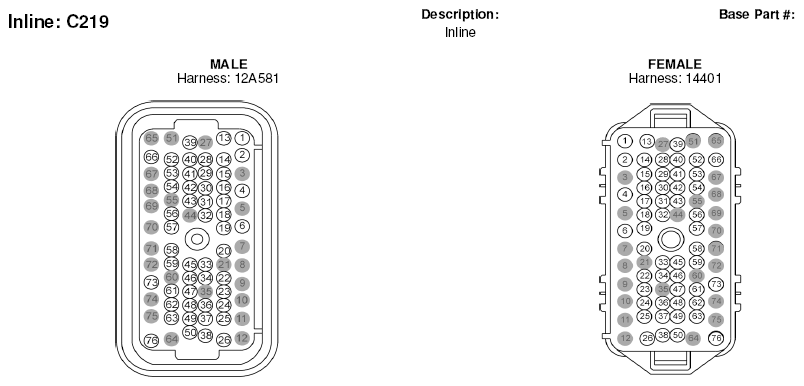

Fig 15: Inline Connector End View (C219) (1 Of 5)

G05181198

Courtesy of FORD MOTOR CO.

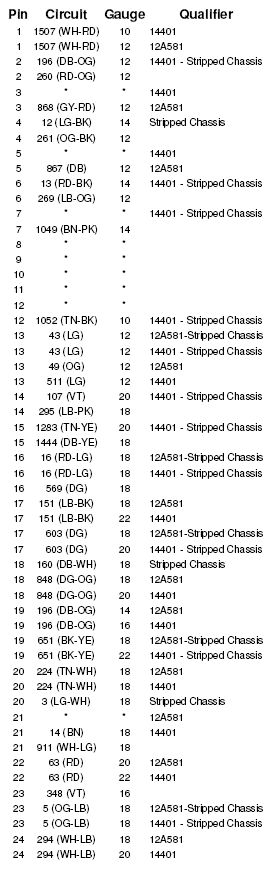

Fig 16: Inline Connector End View (C219) (2 Of 5)

G05181199

Courtesy of FORD MOTOR CO.

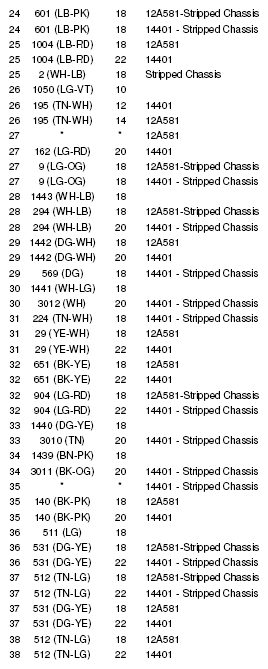

Fig 17: Inline Connector End View (C219) (3 Of 5)

G05181200

Courtesy of FORD MOTOR CO.

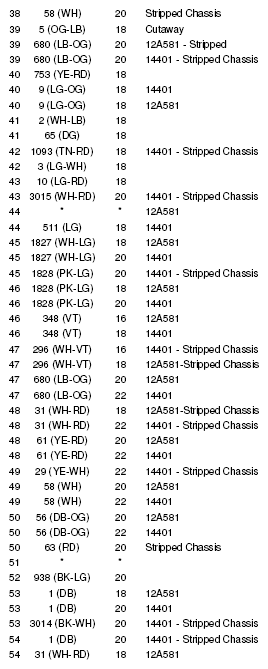

Fig 18: Inline Connector End View (C219) (4 Of 5)

G05181201

Courtesy of FORD MOTOR CO.

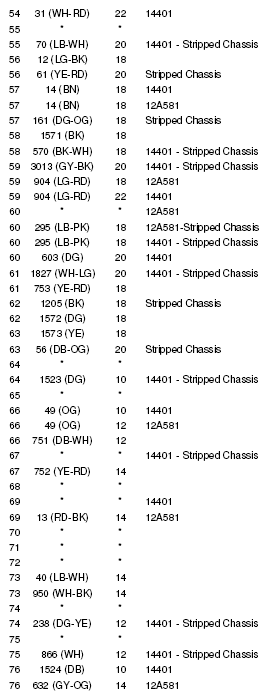

Fig 19: Inline Connector End View (C219) (5 Of 5)

G05181202

Courtesy of FORD MOTOR CO.

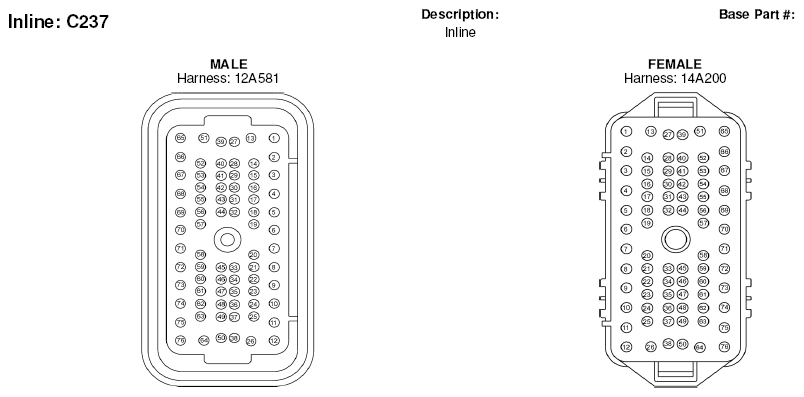

Fig 20: Inline Connector End View (C237) (1 Of 3)

G05181206

Courtesy of FORD MOTOR CO.

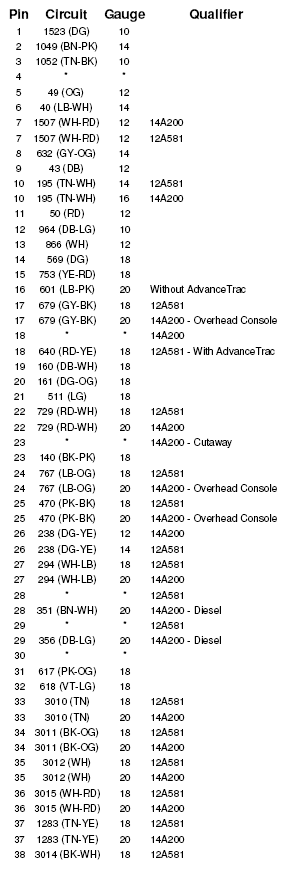

Fig 21: Inline Connector End View (C237) (2 Of 3)

G05181207

Courtesy of FORD MOTOR CO.

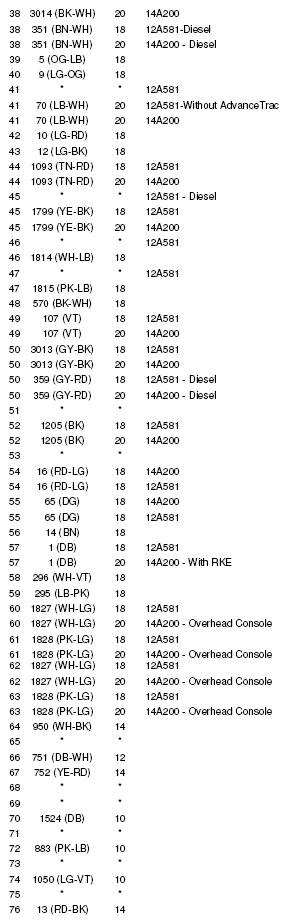

Fig 22: Inline Connector End View (C237) (3 Of 3)

G05181208

Courtesy of FORD MOTOR CO.

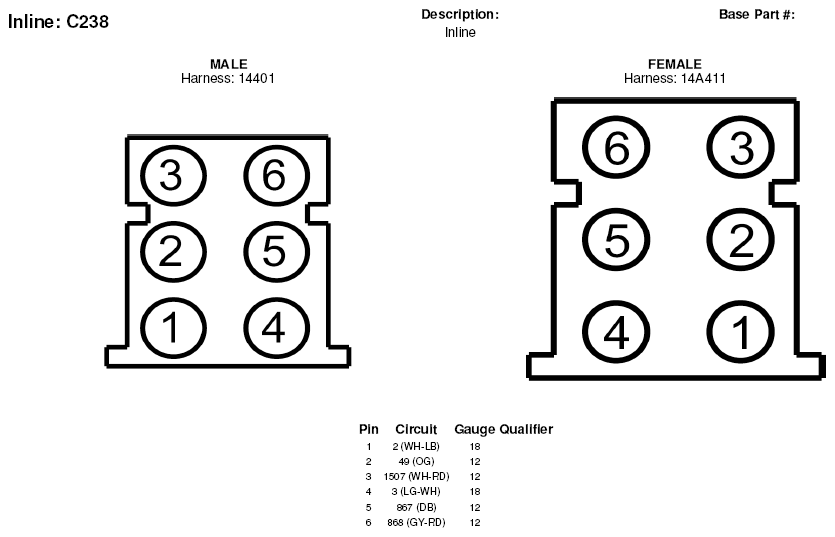

Fig 23: Inline Connector End View (C238)

G05181209

Courtesy of FORD MOTOR CO.

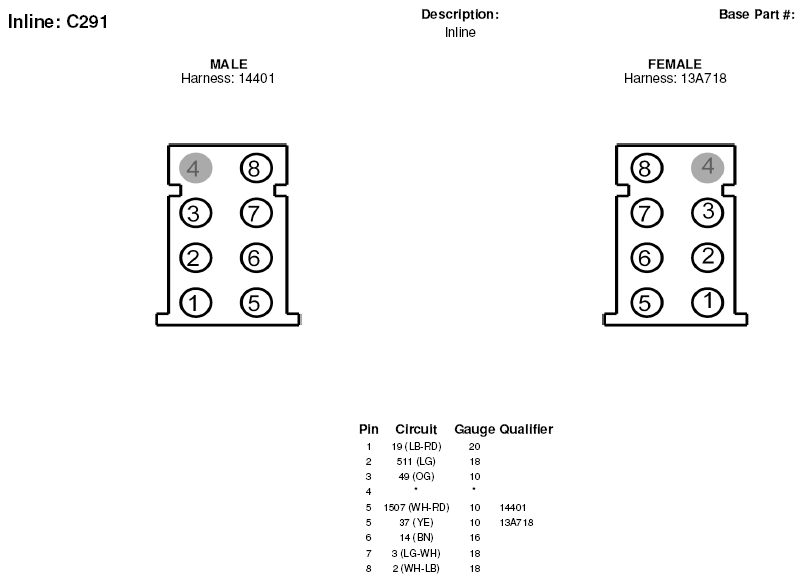

Fig 24: Inline Connector End View (C291)

G05181218

Courtesy of FORD MOTOR CO.

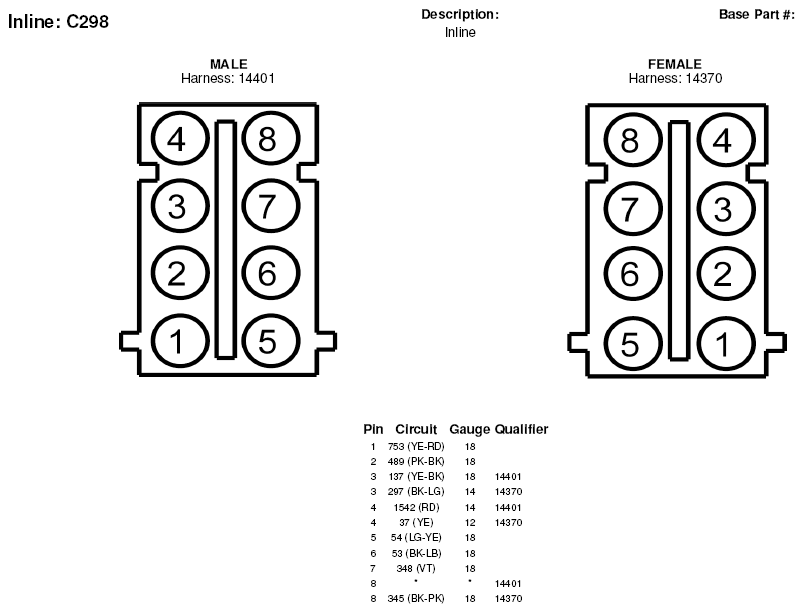

Fig 25: Inline Connector End View (C298)

G05181224

Courtesy of FORD MOTOR CO.

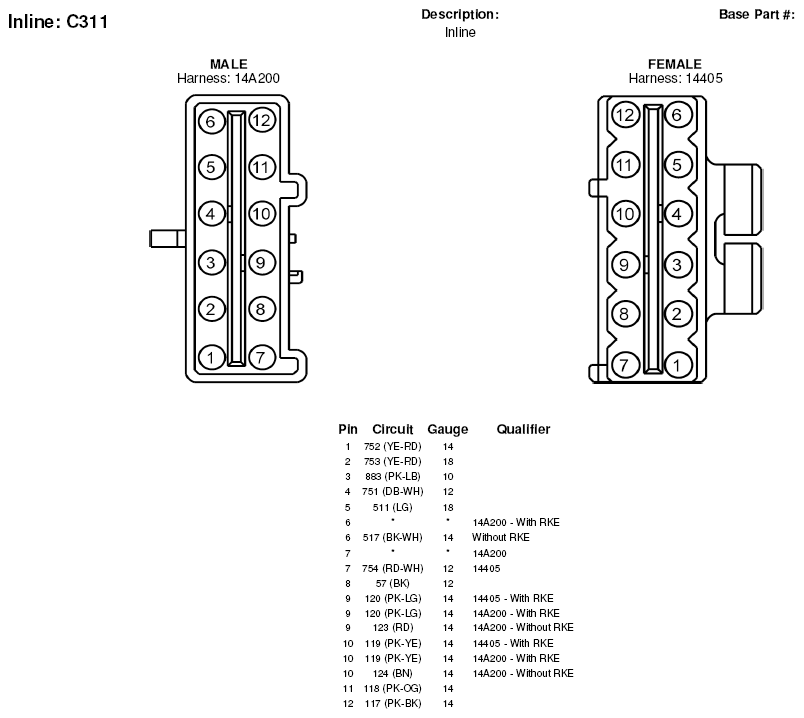

Fig 26: Inline Connector End View (C311)

G05181227

Courtesy of FORD MOTOR CO.

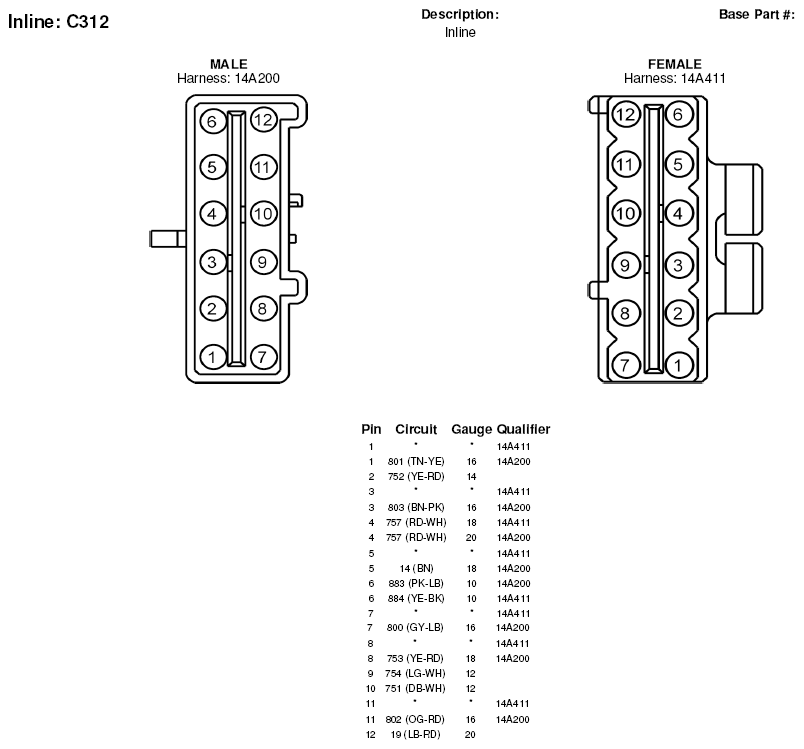

Fig 27: Inline Connector End View (C312)

G05181228

Courtesy of FORD MOTOR CO.

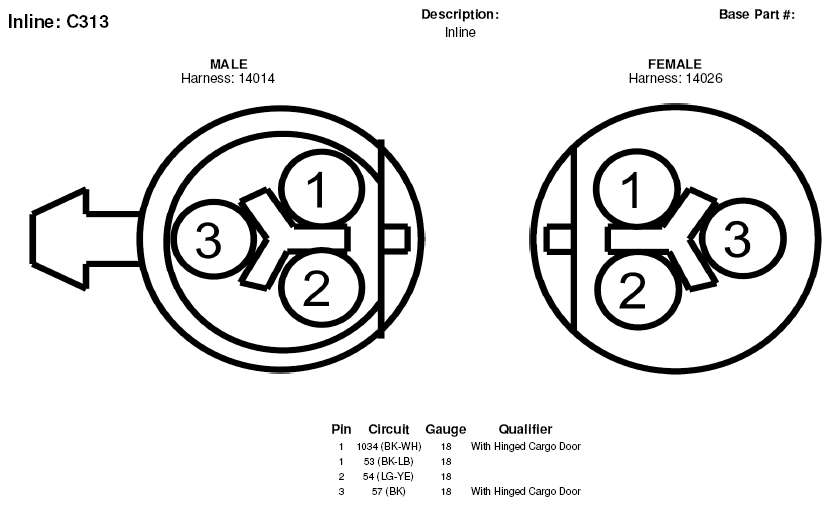

Fig 28: Inline Connector End View (C313)

G05181229

Courtesy of FORD MOTOR CO.

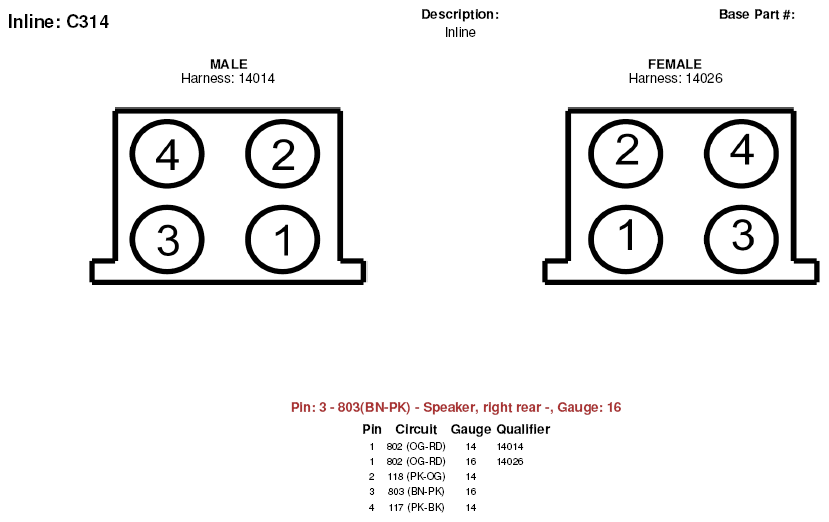

Fig 29: Inline Connector End View (C314)

G05181230

Courtesy of FORD MOTOR CO.

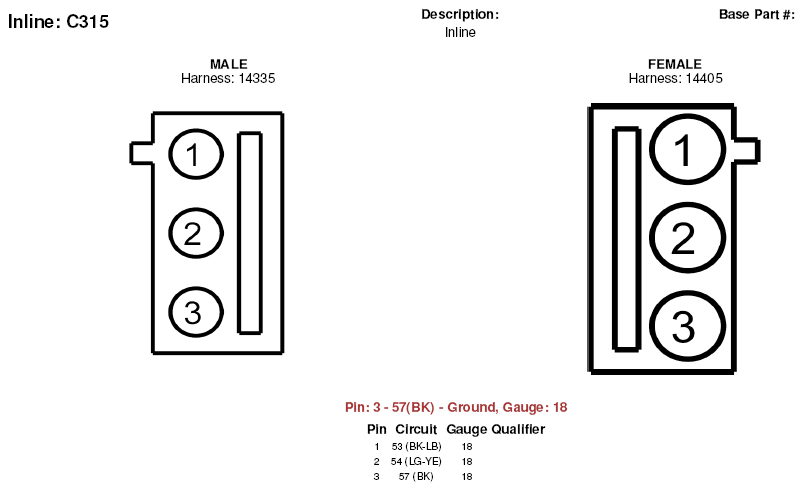

Fig 30: Inline Connector End View (C315)

G05181231

Courtesy of FORD MOTOR CO.

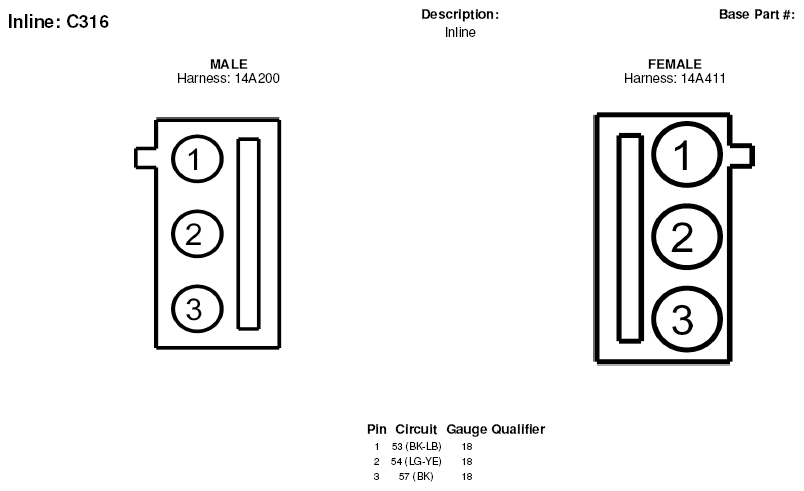

Fig 31: Inline Connector End View (C316)

G05181232

Courtesy of FORD MOTOR CO.

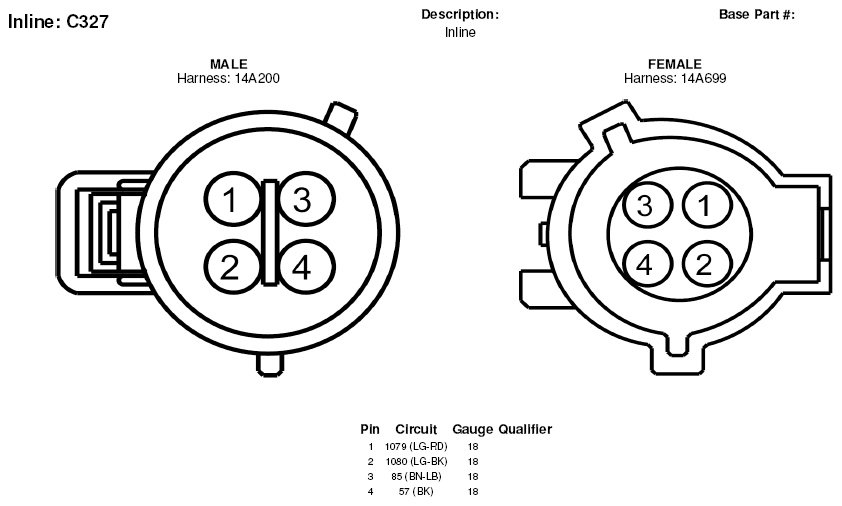

Fig 32: Inline Connector End View (C327)

G05181233

Courtesy of FORD MOTOR CO.

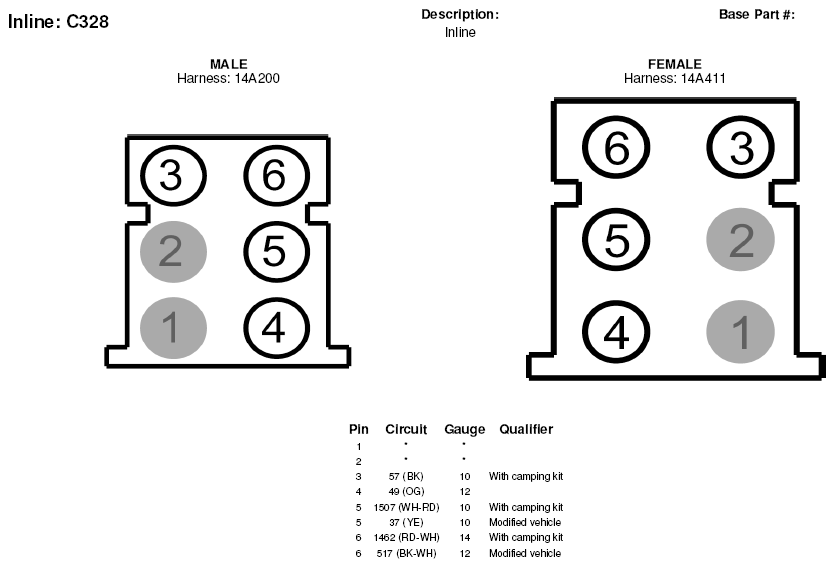

Fig 33: Inline Connector End View (C328)

G05181234

Courtesy of FORD MOTOR CO.

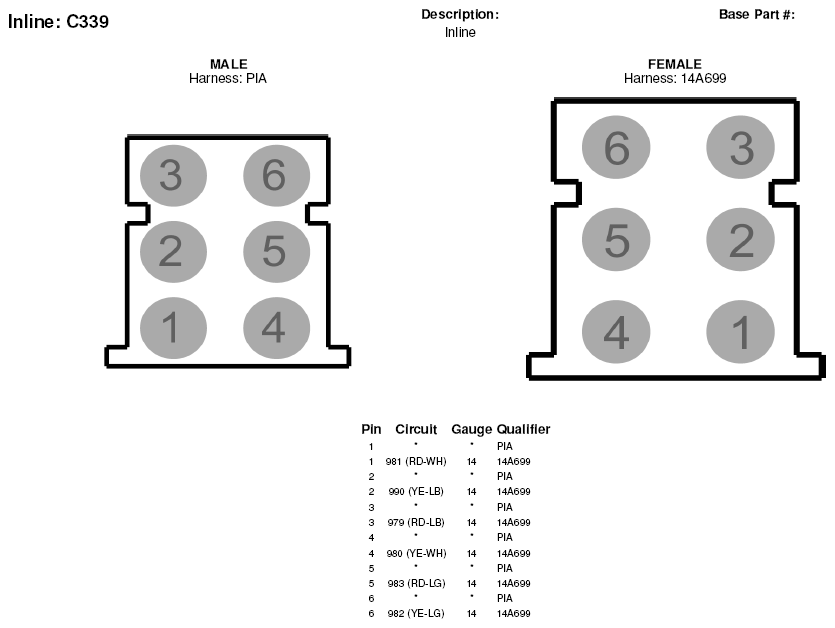

Fig 34: Inline Connector End View (C339)

G05181235

Courtesy of FORD MOTOR CO.

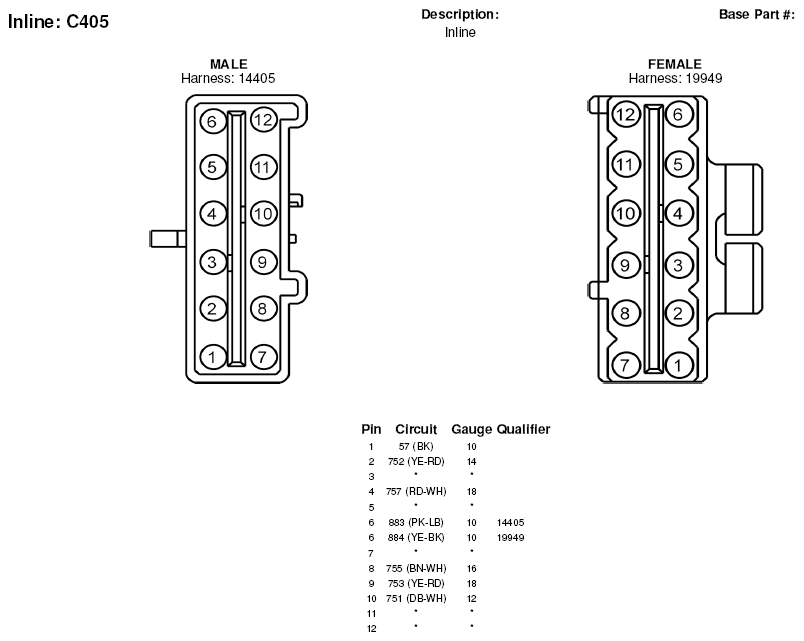

Fig 35: Inline Connector End View (C405)

G05181242

Courtesy of FORD MOTOR CO.

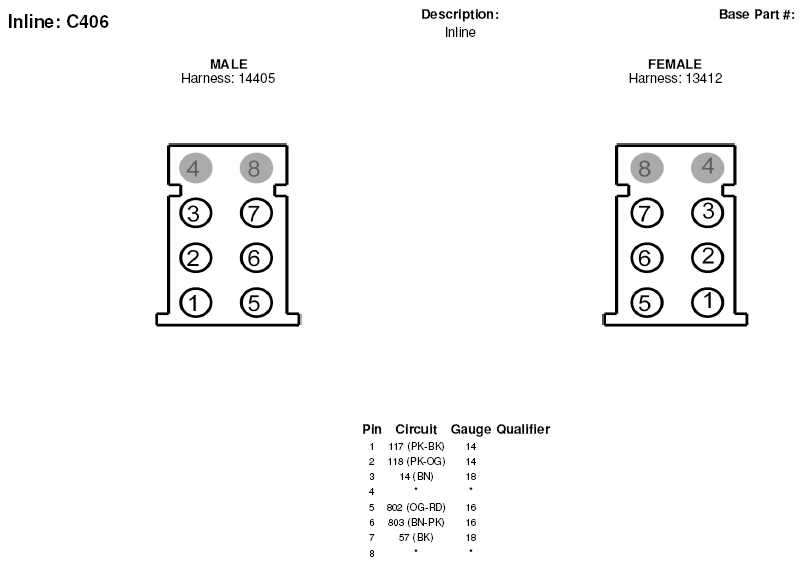

Fig 36: Inline Connector End View (C406)

G05181243

Courtesy of FORD MOTOR CO.

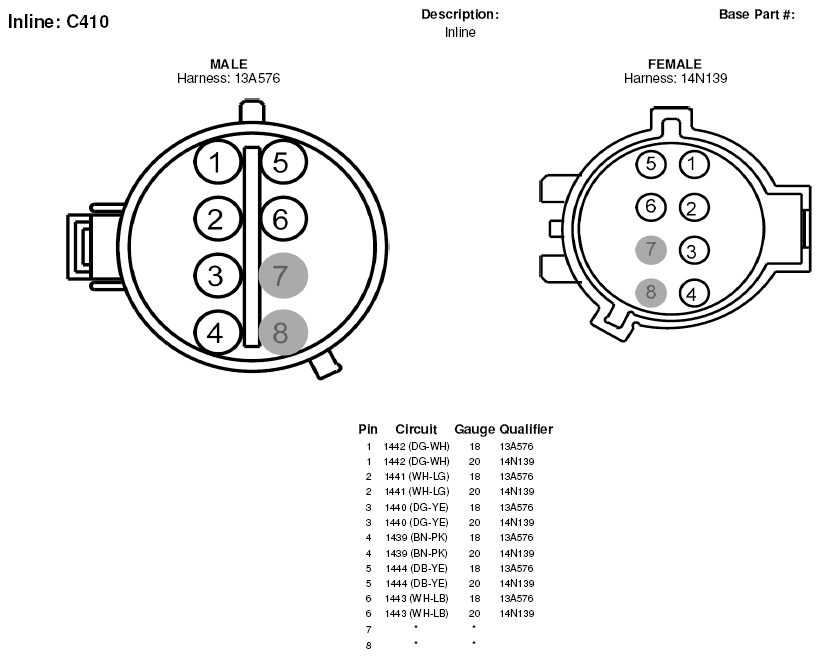

Fig 37: Inline Connector End View (C410)

G05181244

Courtesy of FORD MOTOR CO.

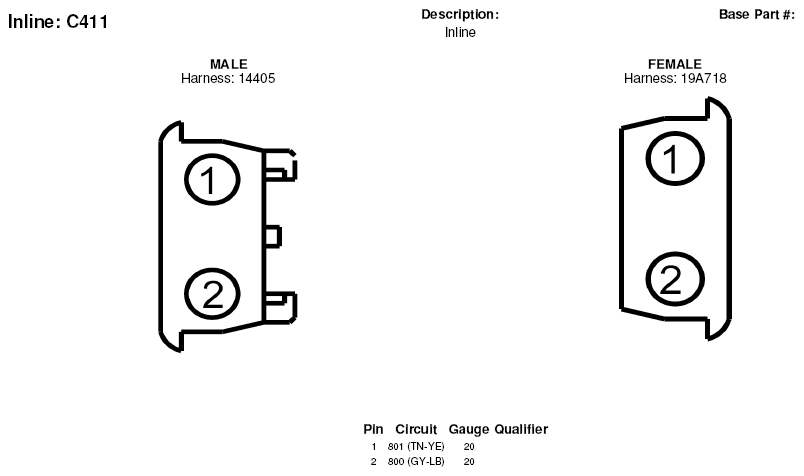

Fig 38: Inline Connector End View (C411)

G05181245

Courtesy of FORD MOTOR CO.

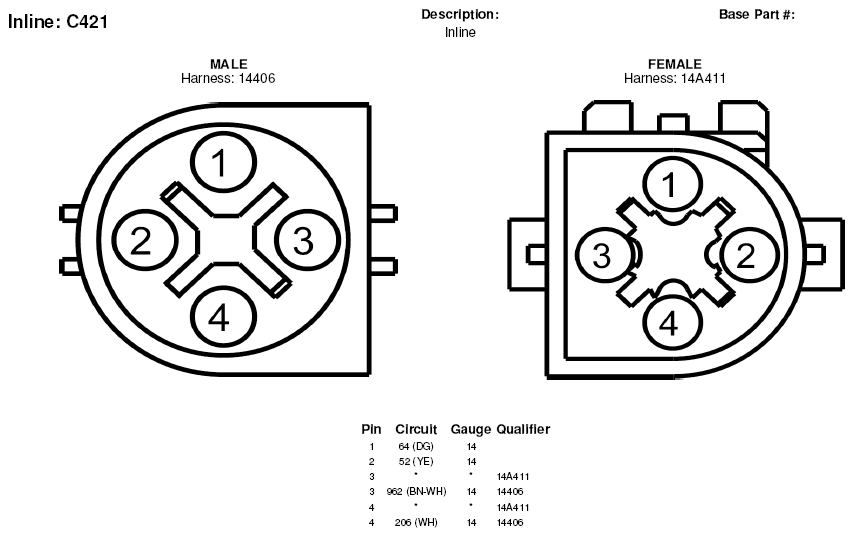

Fig 39: Inline Connector End View (C421)

G05181248

Courtesy of FORD MOTOR CO.

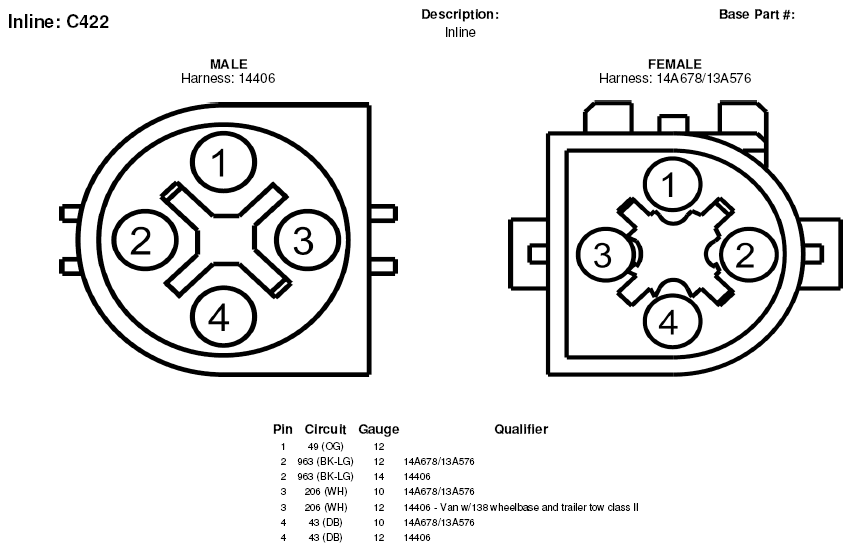

Fig 40: Inline Connector End View (C422)

G05181249

Courtesy of FORD MOTOR CO.

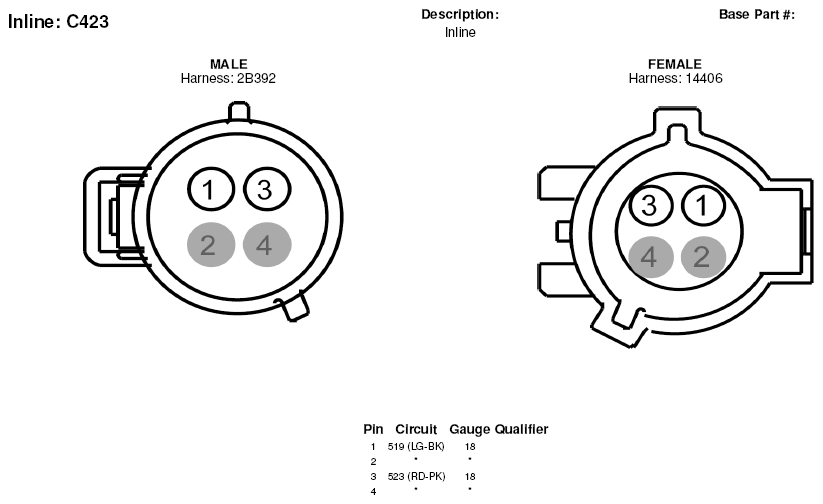

Fig 41: Inline Connector End View (C423)

G05181250

Courtesy of FORD MOTOR CO.

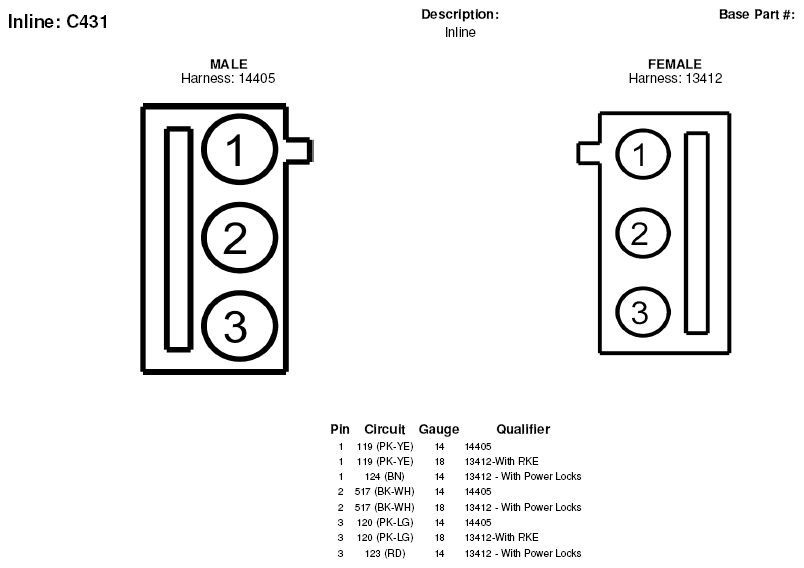

Fig 42: Inline Connector End View (C431)

G05181252

Courtesy of FORD MOTOR CO.

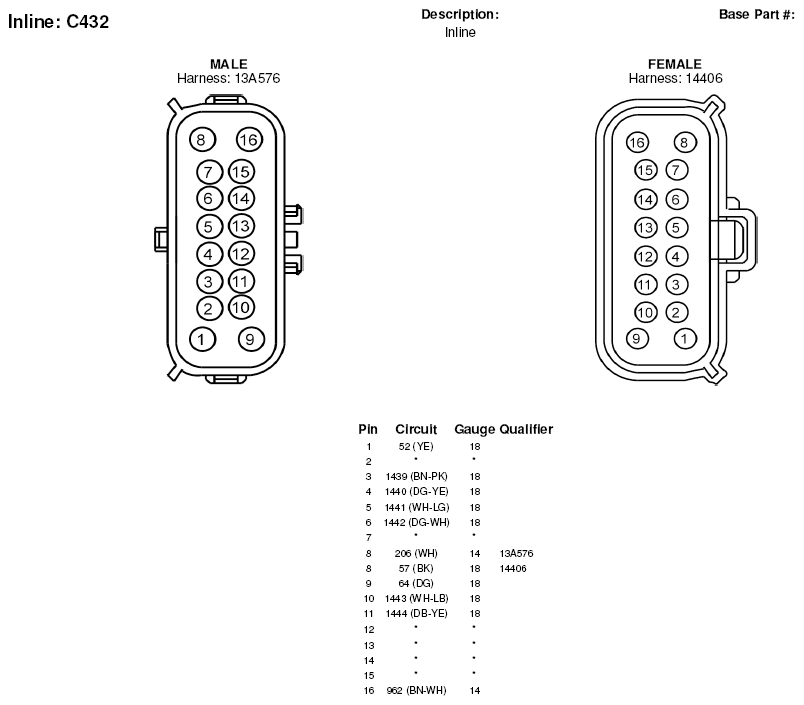

Fig 43: Inline Connector End View (C432)

G05181253

Courtesy of FORD MOTOR CO.

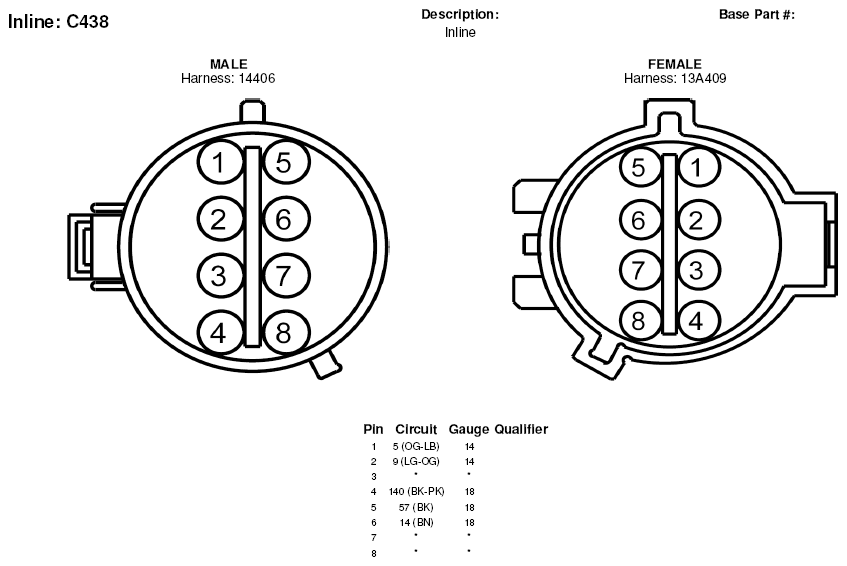

Fig 44: Inline Connector End View (C438)

G05181256

Courtesy of FORD MOTOR CO.

Fig 45: Inline Connector End View (C913)

G05181284

Courtesy of FORD MOTOR CO.

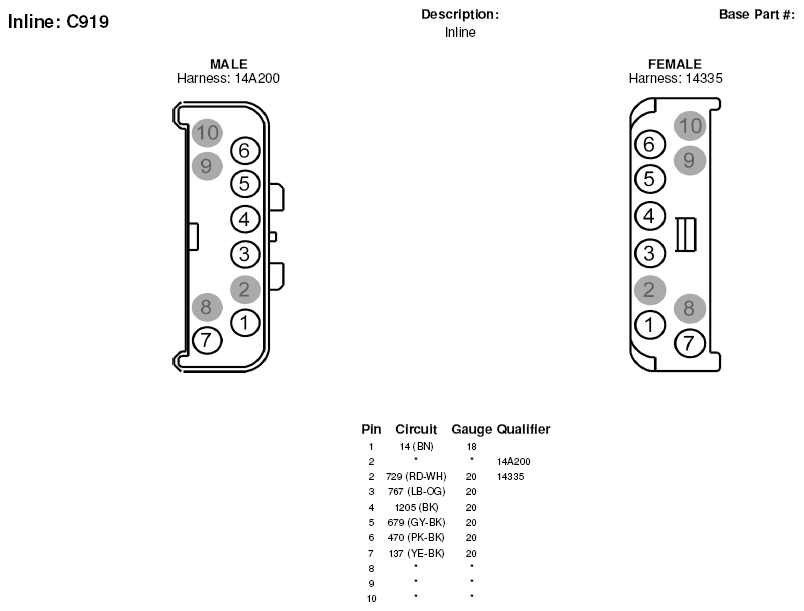

Fig 46: Inline Connector End View (C919)

G05181285

Courtesy of FORD MOTOR CO.

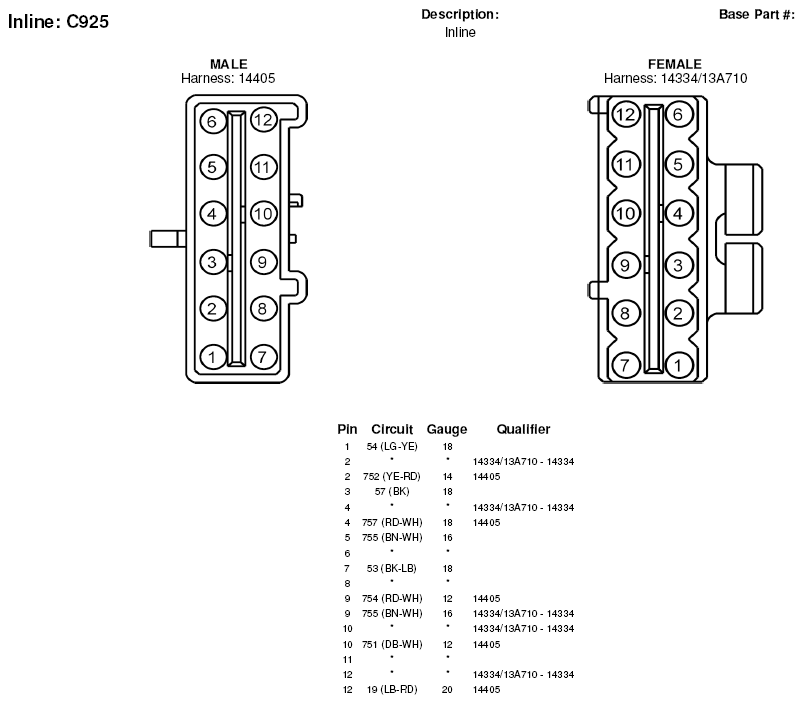

Fig 47: Inline Connector End View (C925)

G05181286

Courtesy of FORD MOTOR CO.

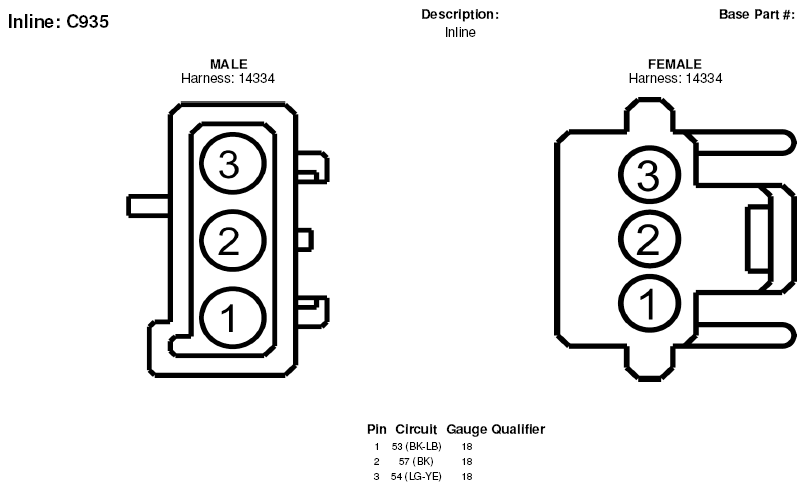

Fig 48: Inline Connector End View (C935)

G05181290

Courtesy of FORD MOTOR CO.

Fig 49: Inline Connector End View (C936)

G05181291

Courtesy of FORD MOTOR CO.

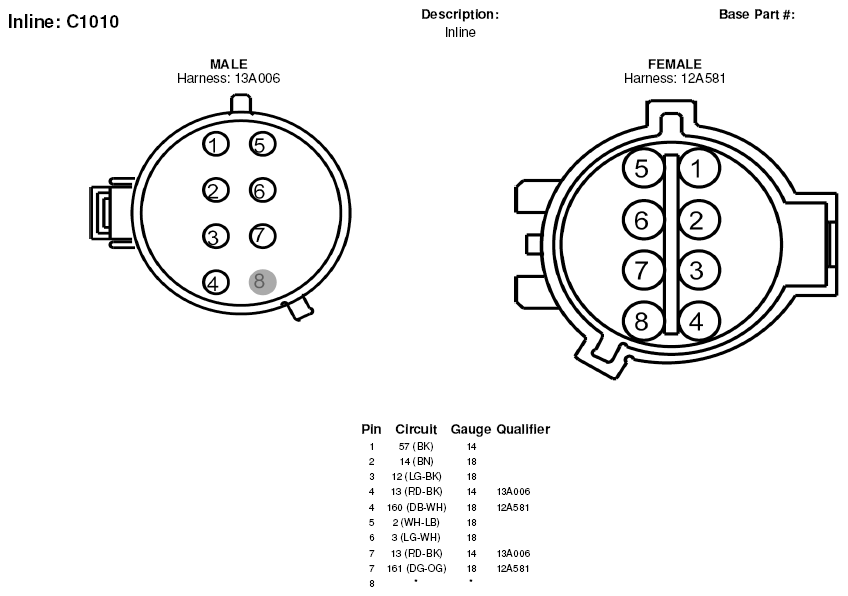

Fig 50: Inline Connector End View (C1010)

G05181293

Courtesy of FORD MOTOR CO.

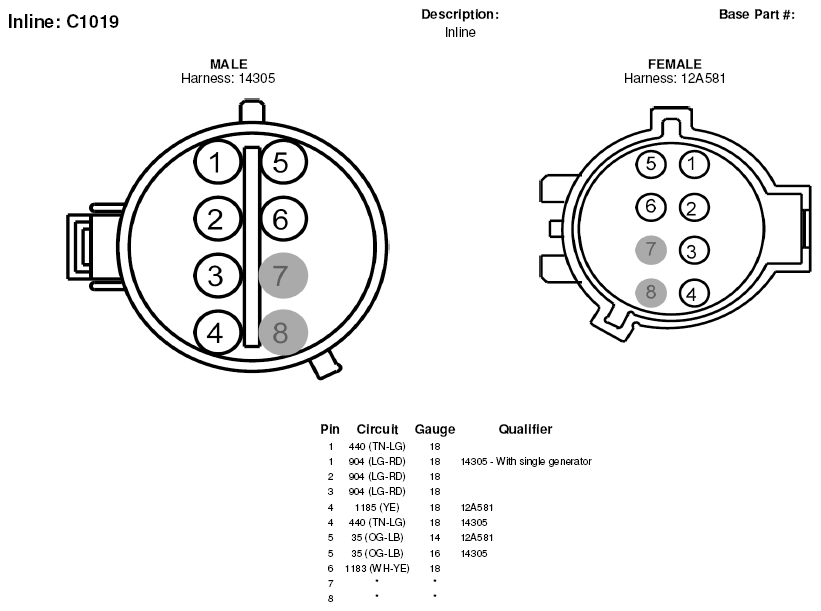

Fig 51: Inline Connector End View (C1019)

G05181294

Courtesy of FORD MOTOR CO.

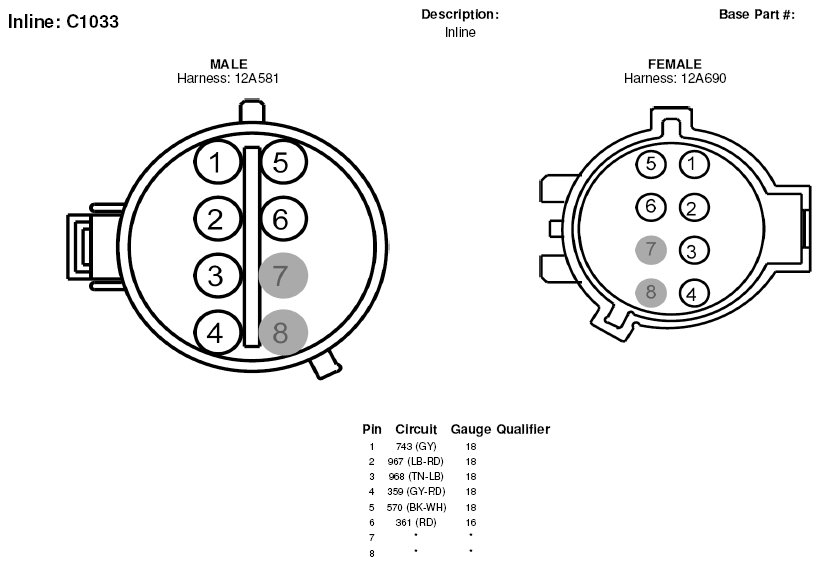

Fig 52: Inline Connector End View (C1033)

G05181299

Courtesy of FORD MOTOR CO.

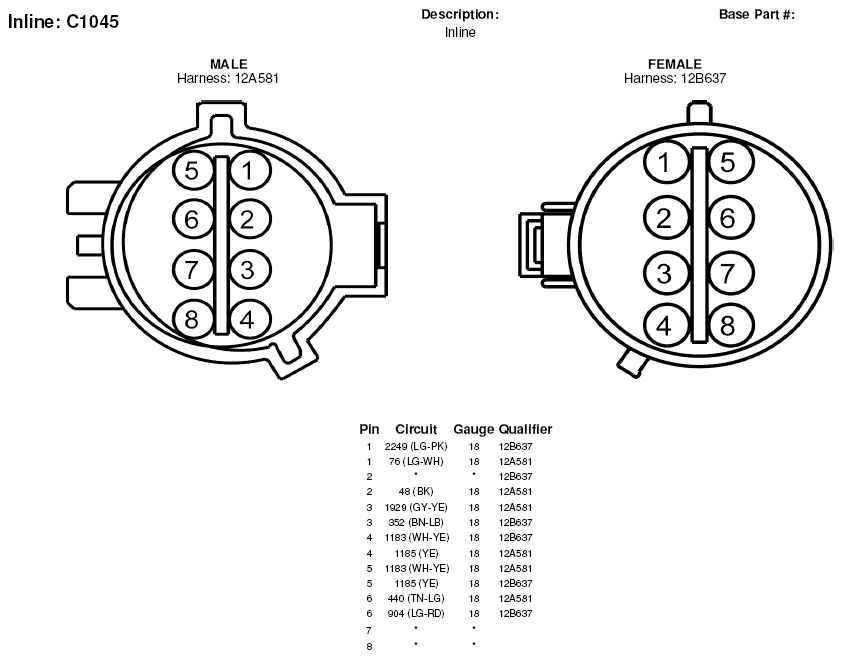

Fig 53: Inline Connector End View (C1045)

G05181303

Courtesy of FORD MOTOR CO.

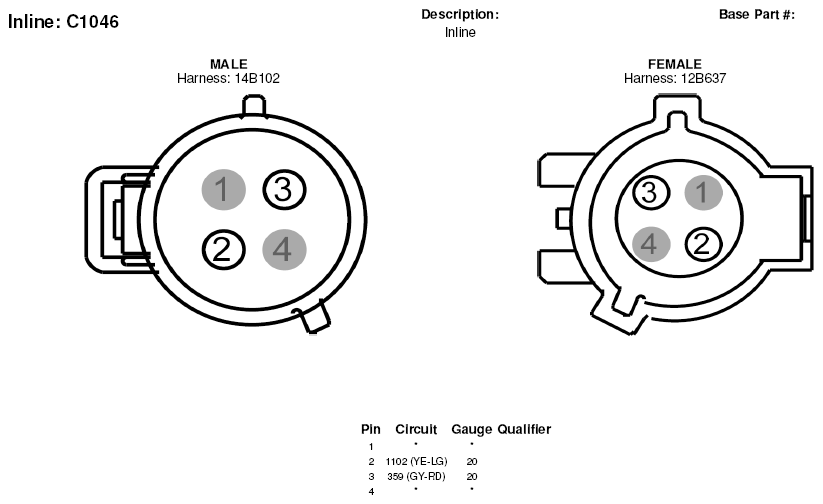

Fig 54: Inline Connector End View (C1046)

G05181304

Courtesy of FORD MOTOR CO.

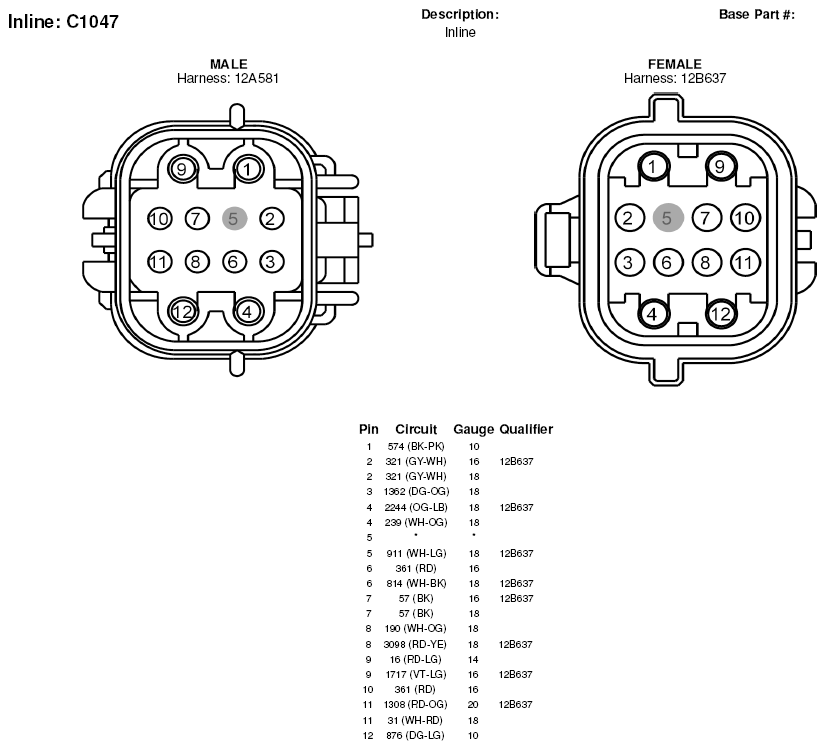

Fig 55: Inline Connector End View (C1047)

G05181305

Courtesy of FORD MOTOR CO.

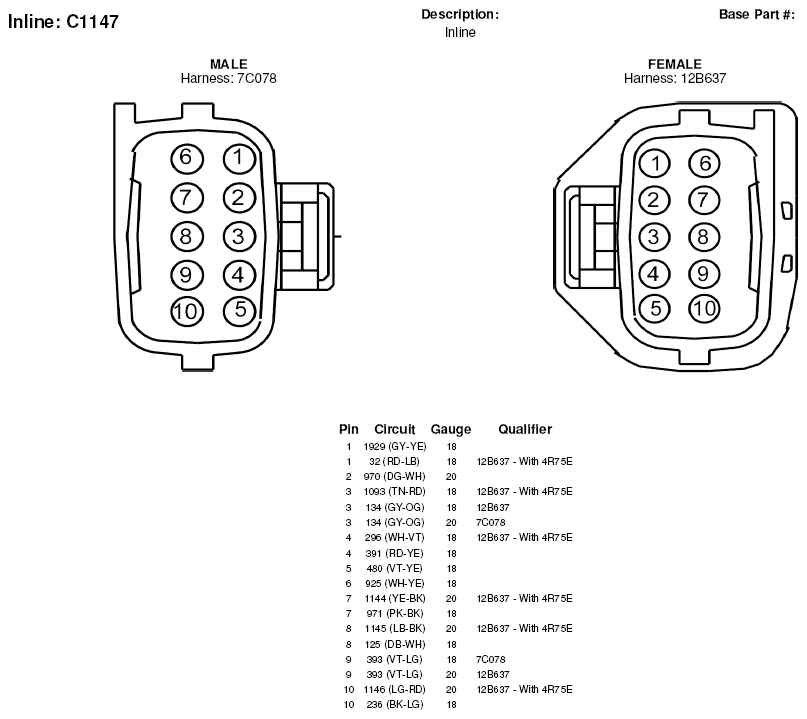

Fig 56: Inline Connector End View (C1147)

G05181318

Courtesy of FORD MOTOR CO.

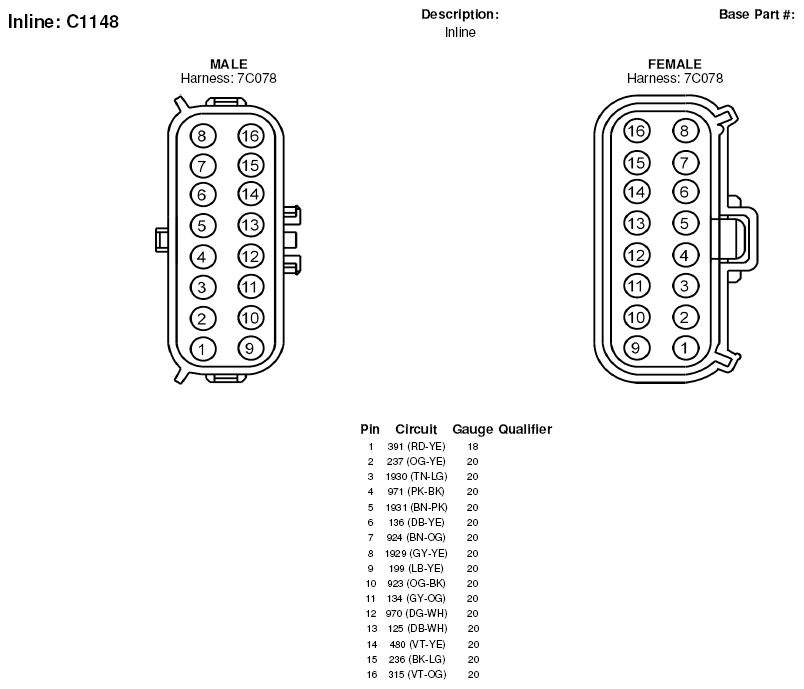

Fig 57: Inline Connector End View (C1148)

G05181319

Courtesy of FORD MOTOR CO.

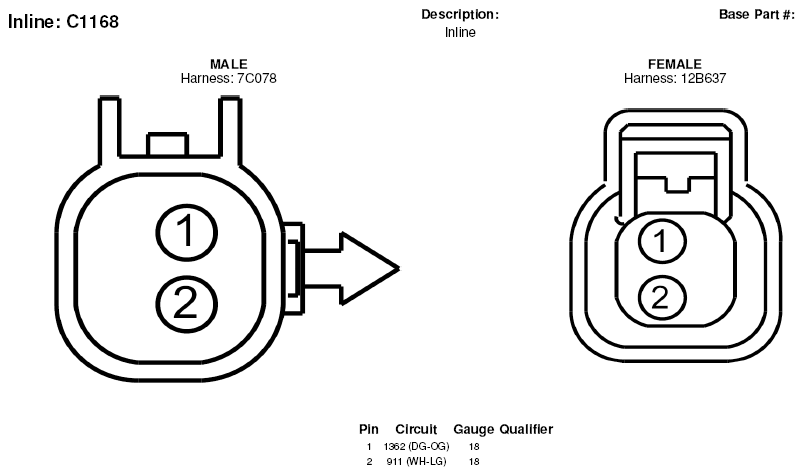

Fig 58: Inline Connector End View (C1168)

G05181321

Courtesy of FORD MOTOR CO.

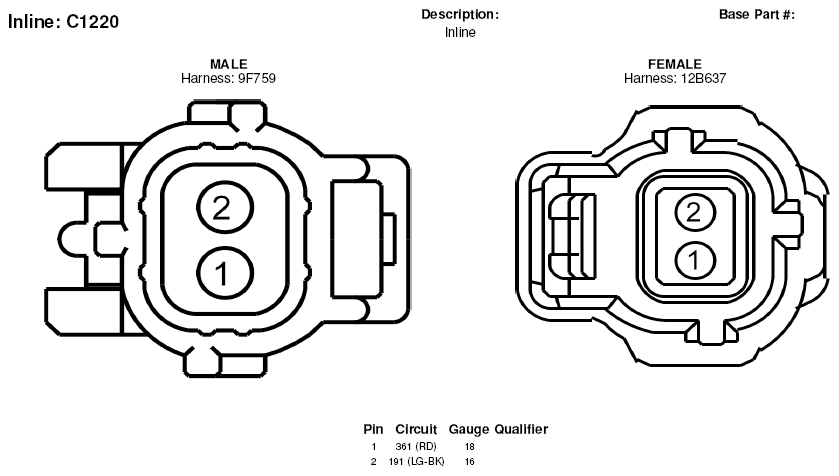

Fig 59: Inline Connector End View (C1220)

G05181333

Courtesy of FORD MOTOR CO.

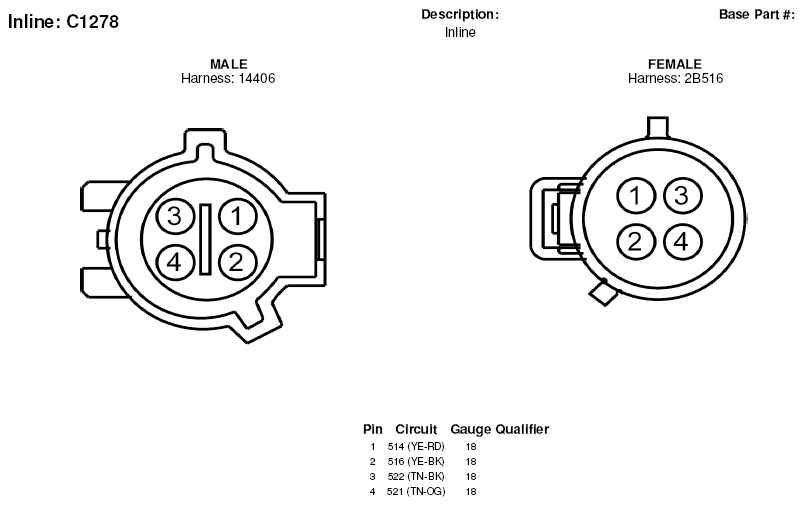

Fig 60: Inline Connector End View (C1278)

G05181345

Courtesy of FORD MOTOR CO.

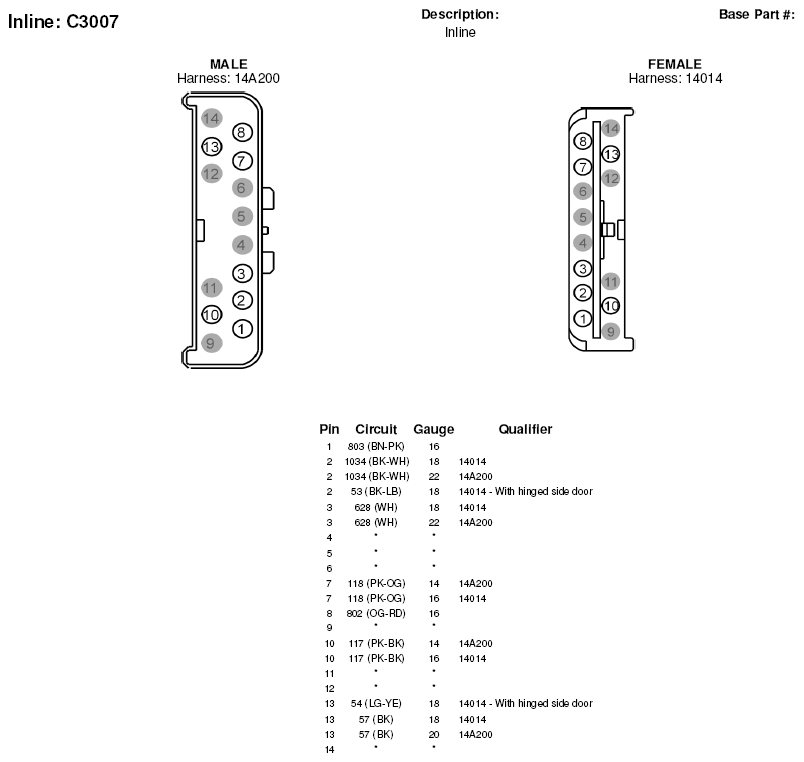

Fig 61: Inline Connector End View (C3007)

G05181396

Courtesy of FORD MOTOR CO.

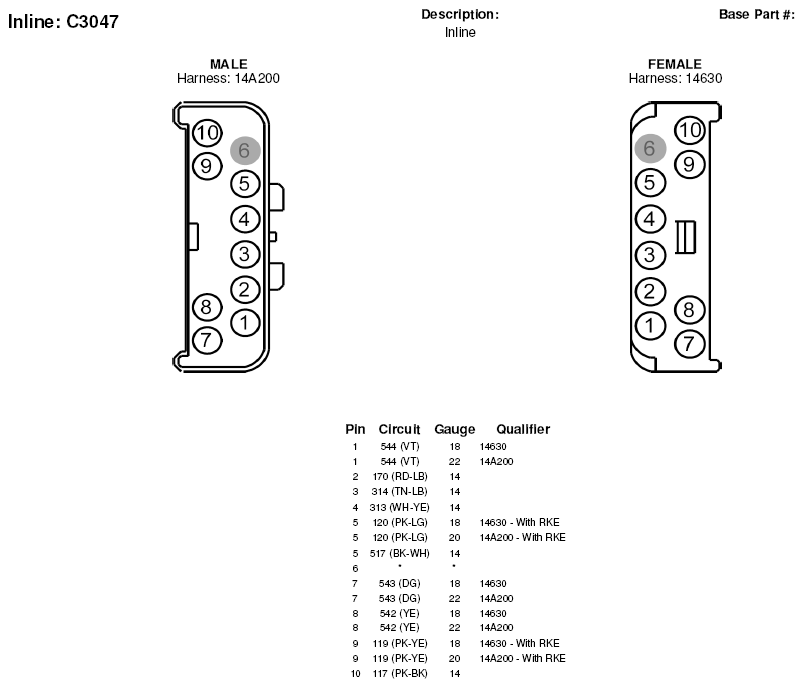

Fig 62: Inline Connector End View (C3047)

G05181397

Courtesy of FORD MOTOR CO.

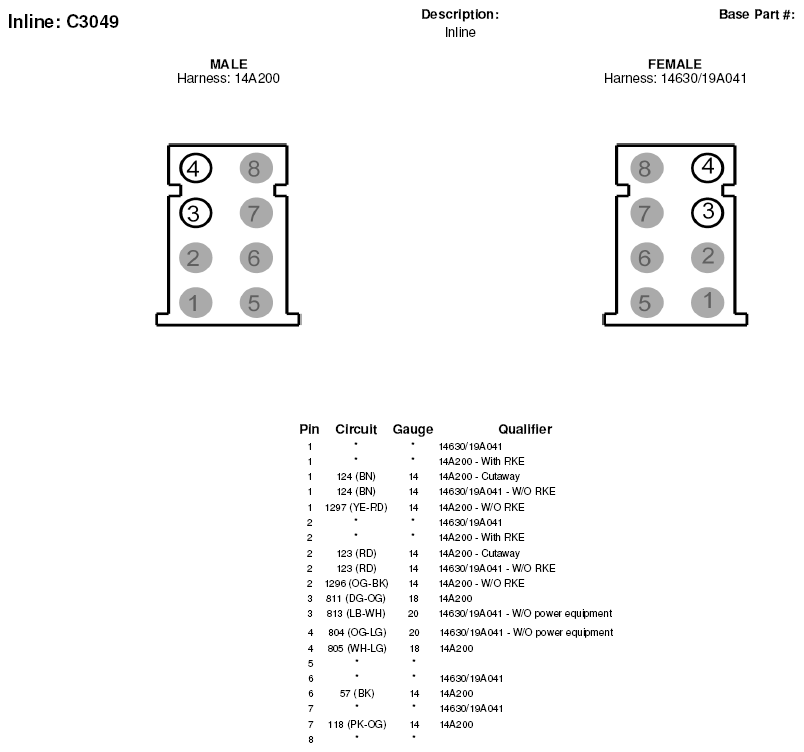

Fig 63: Inline Connector End View (C3049)

G05181398

Courtesy of FORD MOTOR CO.

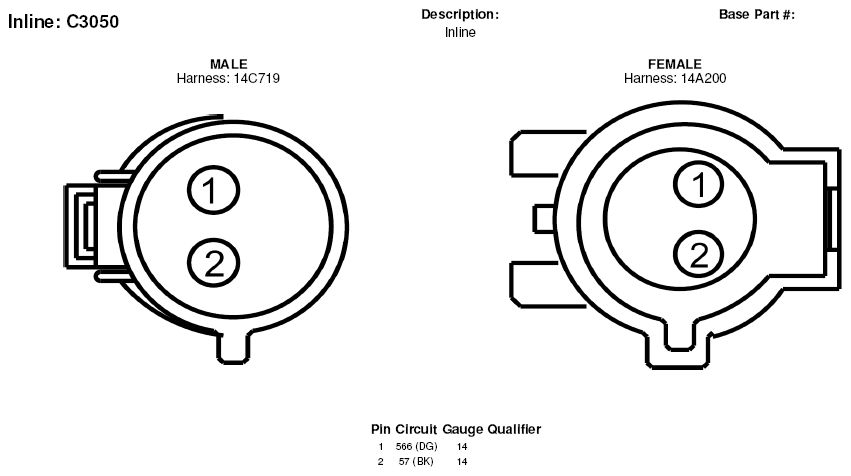

Fig 64: Inline Connector End View (C3050)

G05181399

Courtesy of FORD MOTOR CO.

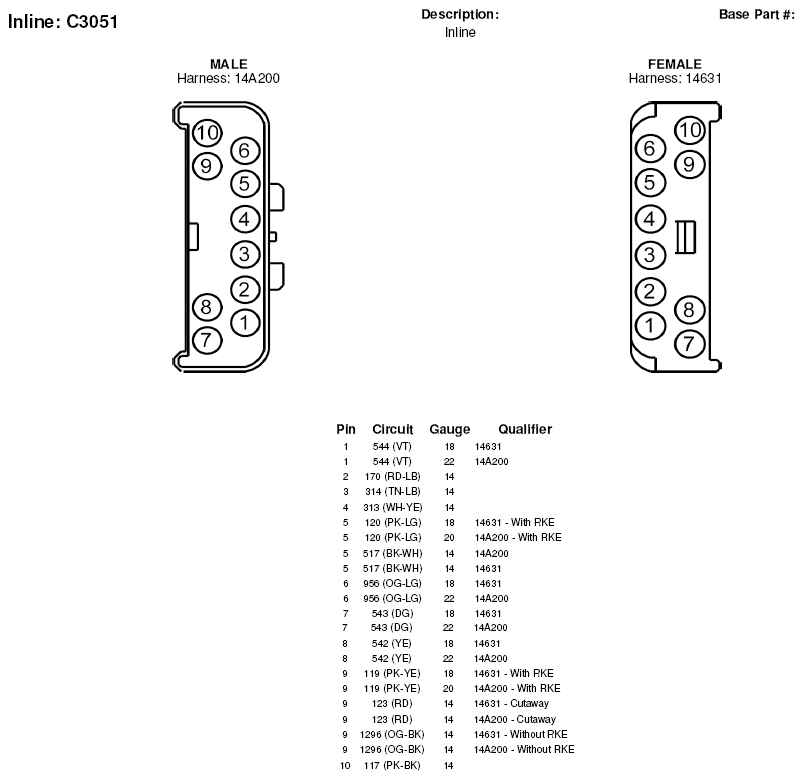

Fig 65: Inline Connector End View (C3051)

G05181400

Courtesy of FORD MOTOR CO.

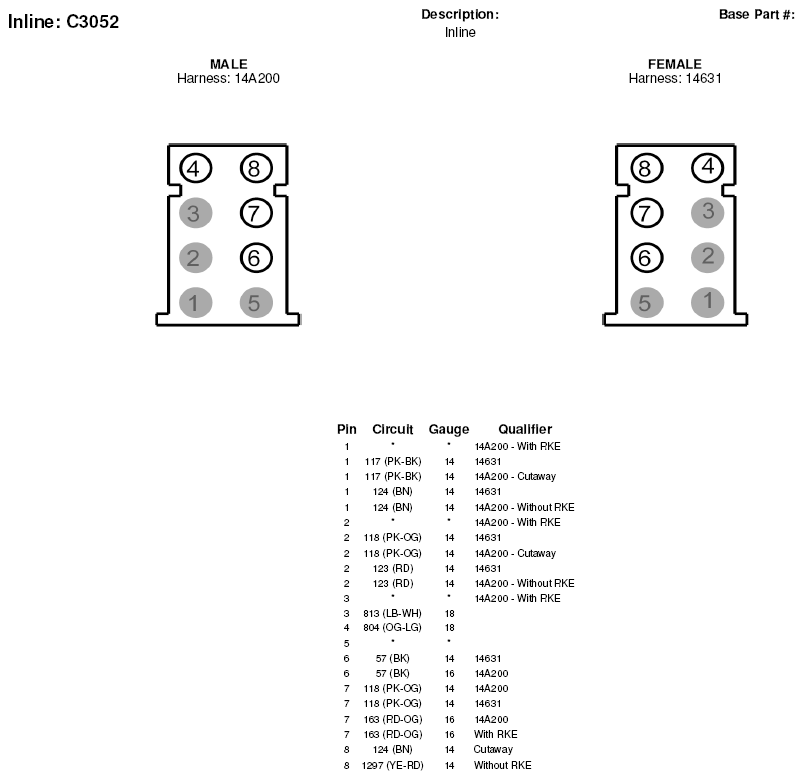

Fig 66: Inline Connector End View (C3052)

G05181401

Courtesy of FORD MOTOR CO.

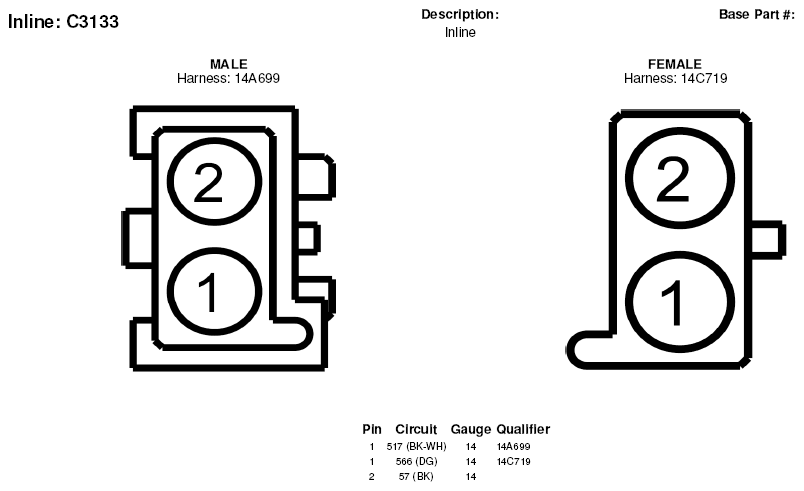

Fig 67: Inline Connector End View (C3133)

G05181405

Courtesy of FORD MOTOR CO.

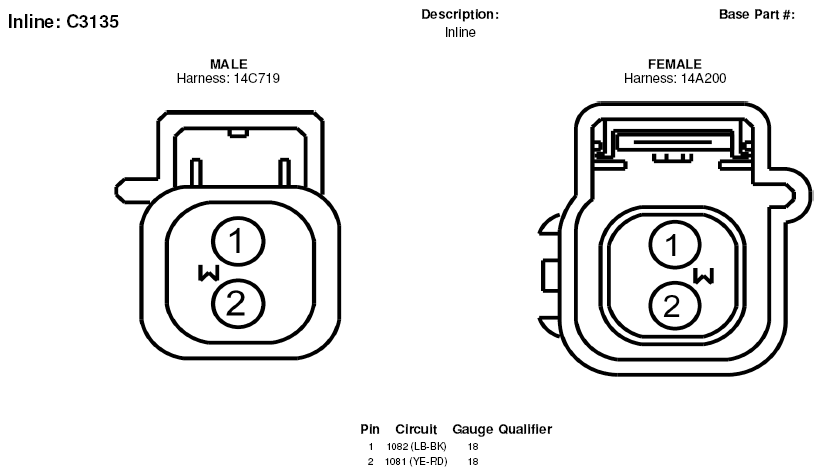

Fig 68: Inline Connector End View (C3135)

G05181406

Courtesy of FORD MOTOR CO.

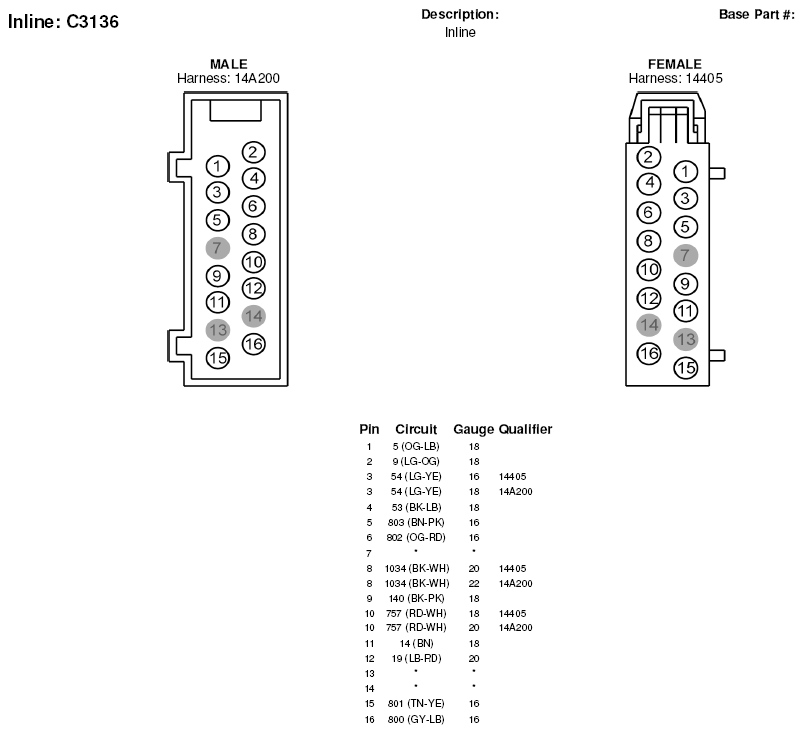

Fig 69: Inline Connector End View (C3136)

G05181407

Courtesy of FORD MOTOR CO.

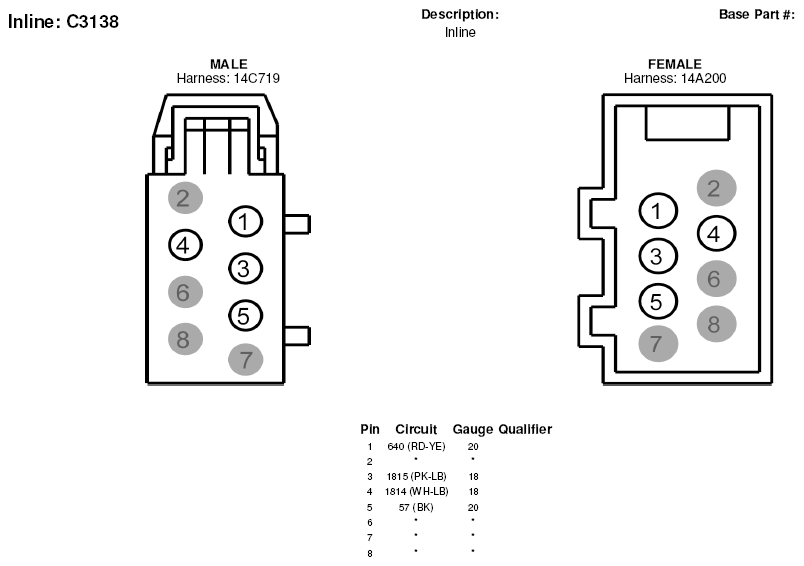

Fig 70: Inline Connector End View (C3138)

G05181408

Courtesy of FORD MOTOR CO.

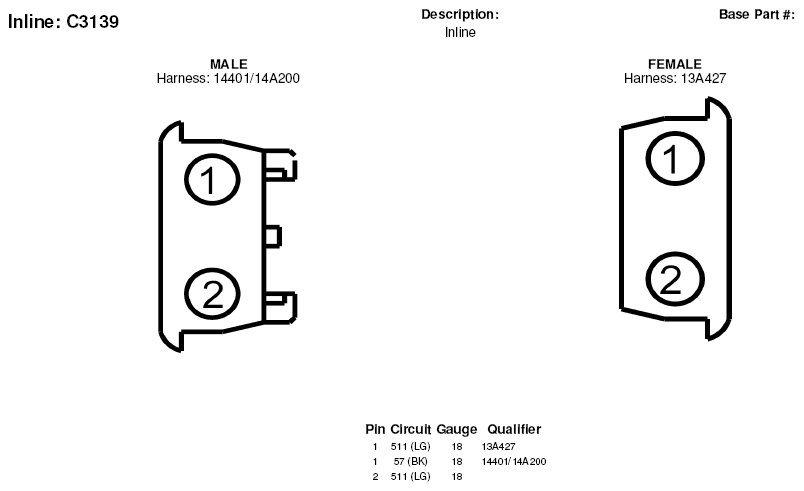

Fig 71: Inline Connector End View (C3139)

G05181409

Courtesy of FORD MOTOR CO.
