Fuel Injector Connectors

Fig 1: Fuel Injector 1 Connector End View (C181)

G05181172

Courtesy of FORD MOTOR CO.

Fig 2: Fuel Injector 2 Connector End View (C182)

G05181173

Courtesy of FORD MOTOR CO.

Fig 3: Fuel Injector 3 Connector End View (C183)

G05181174

Courtesy of FORD MOTOR CO.

Fig 4: Fuel Injector 4 Connector End View (C184)

G05181175

Courtesy of FORD MOTOR CO.

Fig 5: Fuel Injector 5 Connector End View (C185)

G05181176

Courtesy of FORD MOTOR CO.

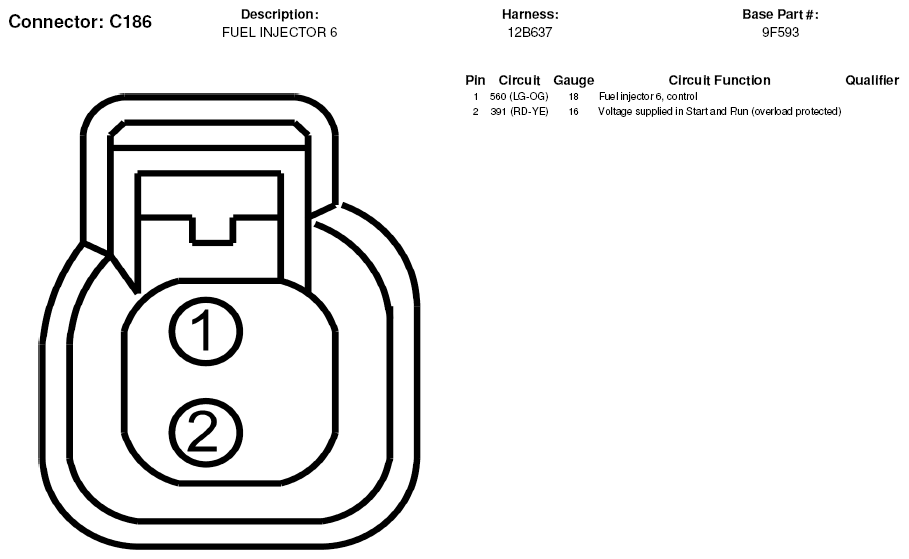

Fig 6: Fuel Injector 6 Connector End View (C186)

G05181177

Courtesy of FORD MOTOR CO.

Fig 7: Fuel Injector 7 Connector End View (C187)

G05181178

Courtesy of FORD MOTOR CO.

Fig 8: Fuel Injector 8 Connector End View (C188)

G05181179

Courtesy of FORD MOTOR CO.

Fig 9: Fuel Injector 1 Connector End View (C1181)

G05181323

Courtesy of FORD MOTOR CO.

Fig 10: Fuel Injector 2 Connector End View (C1182)

G05181324

Courtesy of FORD MOTOR CO.

Fig 11: Fuel Injector 3 Connector End View (C1183)

G05181325

Courtesy of FORD MOTOR CO.

Fig 12: Fuel Injector 4 Connector End View (C1184)

G05181326

Courtesy of FORD MOTOR CO.

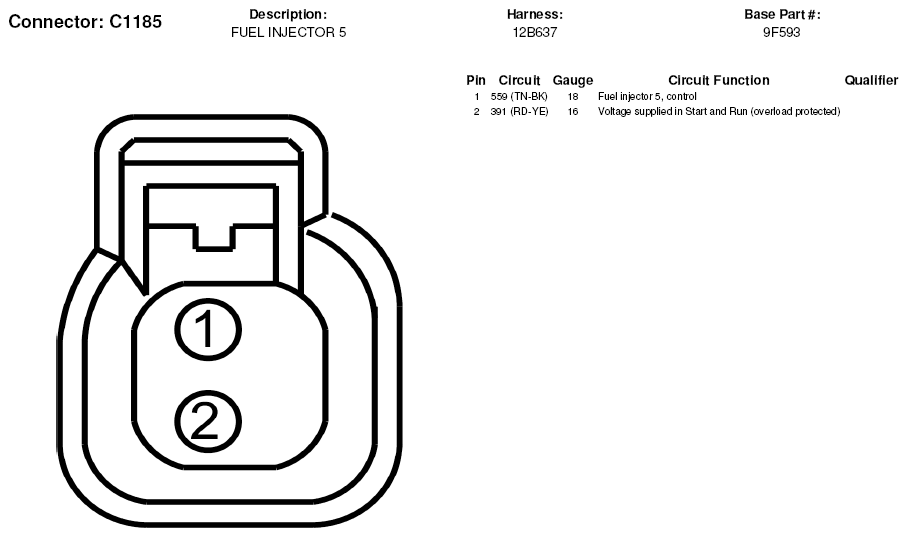

Fig 13: Fuel Injector 5 Connector End View (C1185)

G05181327

Courtesy of FORD MOTOR CO.

Fig 14: Fuel Injector 6 Connector End View (C1186)

G05181328

Courtesy of FORD MOTOR CO.

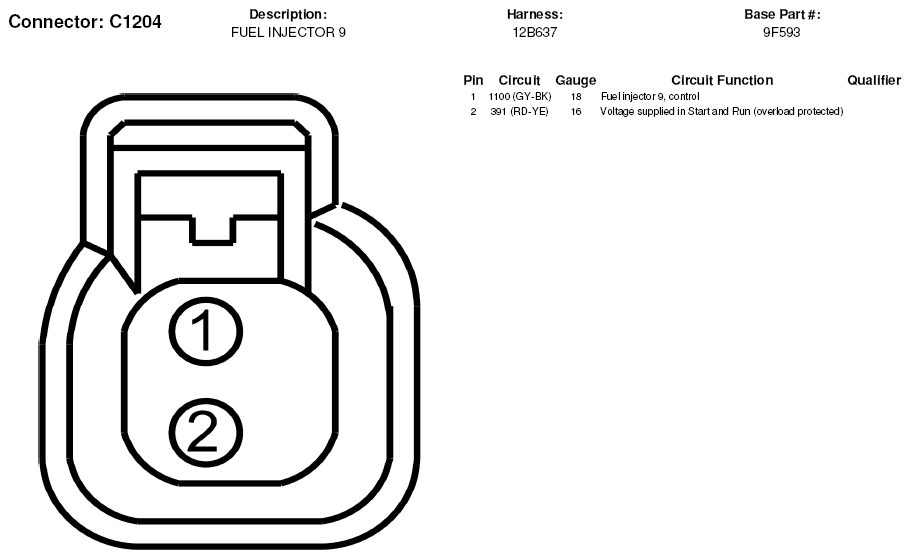

Fig 15: Fuel Injector 9 Connector End View (C1204)

G05181329

Courtesy of FORD MOTOR CO.

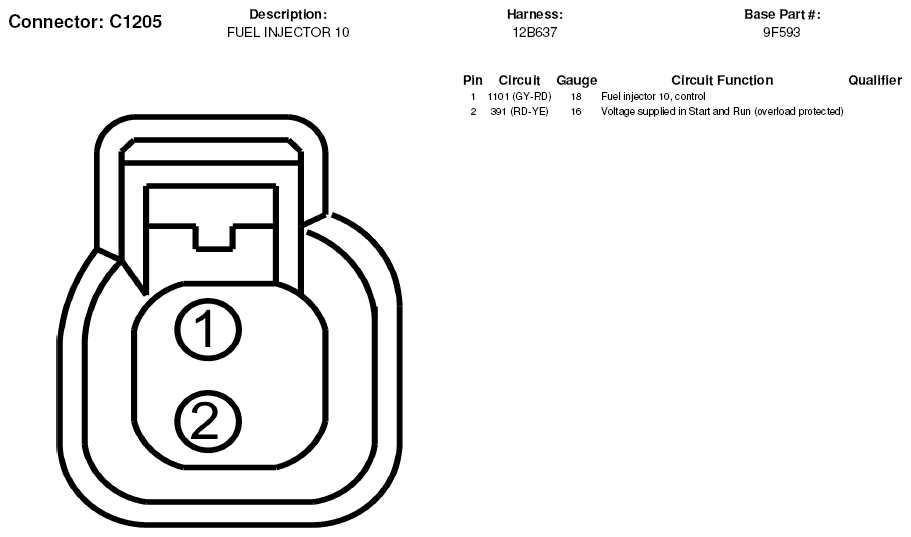

Fig 16: Fuel Injector 10 Connector End View (C1205)

G05181330

Courtesy of FORD MOTOR CO.

Fig 17: Fuel Injector 7 Connector End View (C1312)

G05181351

Courtesy of FORD MOTOR CO.

Fig 18: Fuel Injector 8 Connector End View (C1313)

G05181352

Courtesy of FORD MOTOR CO.

Fig 19: Fuel Injector 1 Connector End View (C1561)

G05181374

Courtesy of FORD MOTOR CO.

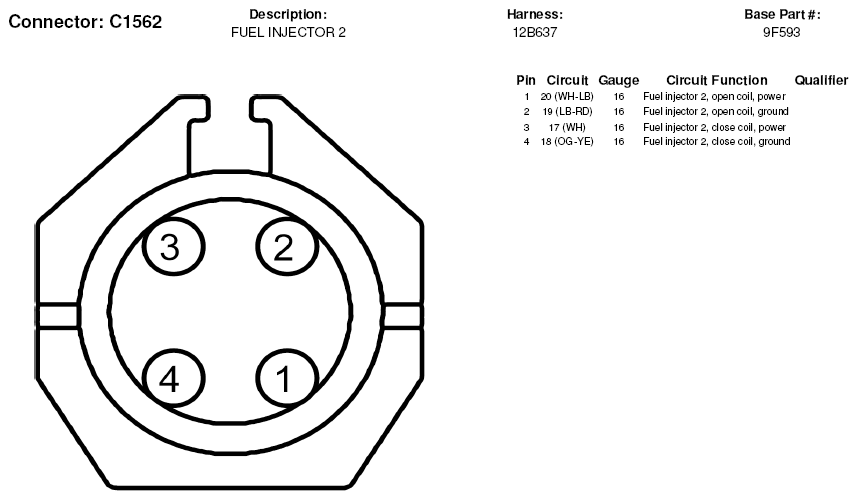

Fig 20: Fuel Injector 2 Connector End View (C1562)

G05181375

Courtesy of FORD MOTOR CO.

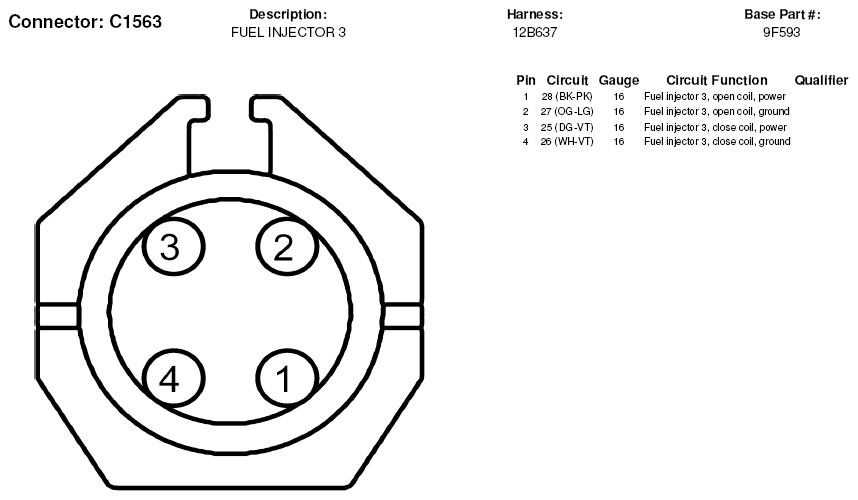

Fig 21: Fuel Injector 3 Connector End View (C1563)

G05181376

Courtesy of FORD MOTOR CO.

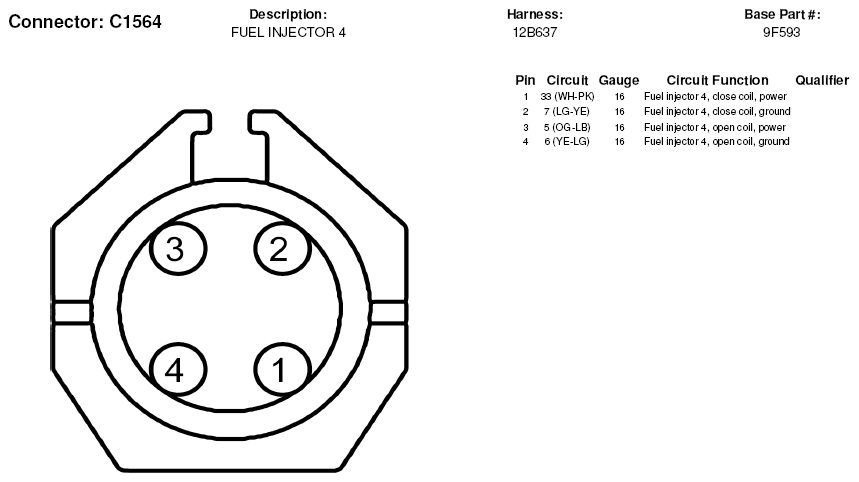

Fig 22: Fuel Injector 4 Connector End View (C1564)

G05181377

Courtesy of FORD MOTOR CO.

Fig 23: Fuel Injector 5 Connector End View (C1565)

G05181378

Courtesy of FORD MOTOR CO.

Fig 24: Fuel Injector 6 Connector End View (C1566)

G05181379

Courtesy of FORD MOTOR CO.

Fig 25: Fuel Injector 7 Connector End View (C1567)

G05181380

Courtesy of FORD MOTOR CO.

Fig 26: Fuel Injector 8 Connector End View (C1568)

G05181381

Courtesy of FORD MOTOR CO.
