Exhaust Back Pressure Sensor Connector

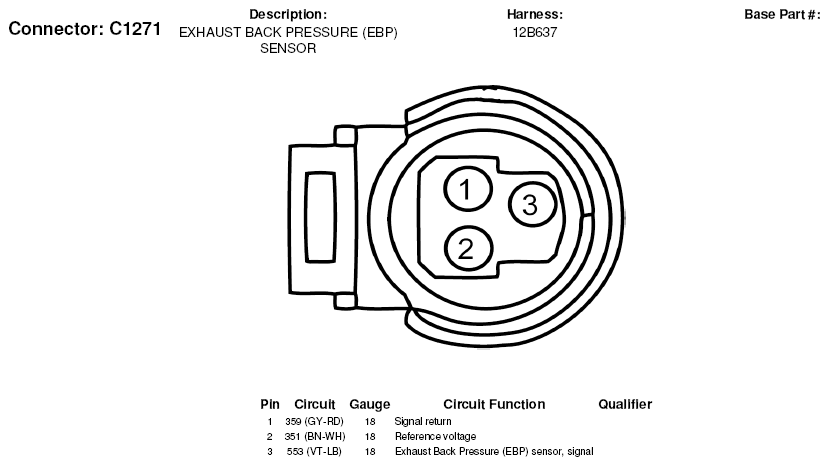

Fig 1: Exhaust Back Pressure Sensor Connector End View (C1271)

G05181342

Courtesy of FORD MOTOR CO.
