Cylinder Head Temperature Sensor Connector

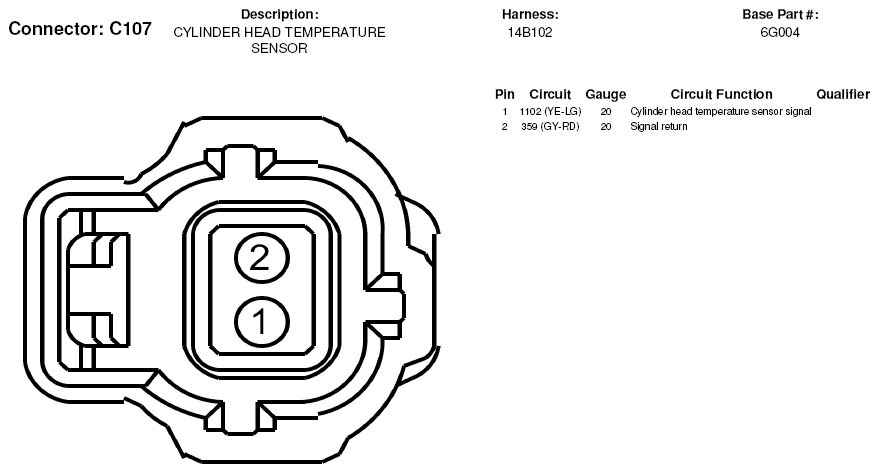

Fig 1: Cylinder Head Temperature Sensor Connector End View (C107)

G05181124

Courtesy of FORD MOTOR CO.
