Crankshaft Position Sensor Connector

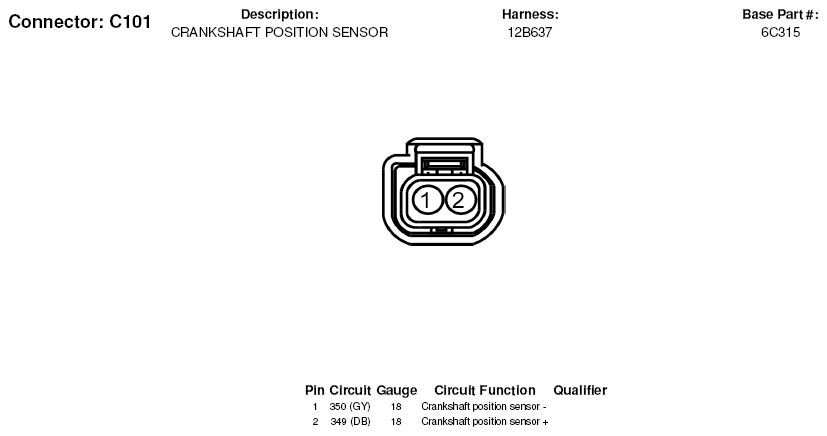

Fig 1: Crankshaft Position Sensor Connector End View (C101)
G05181118Courtesy of FORD MOTOR CO.

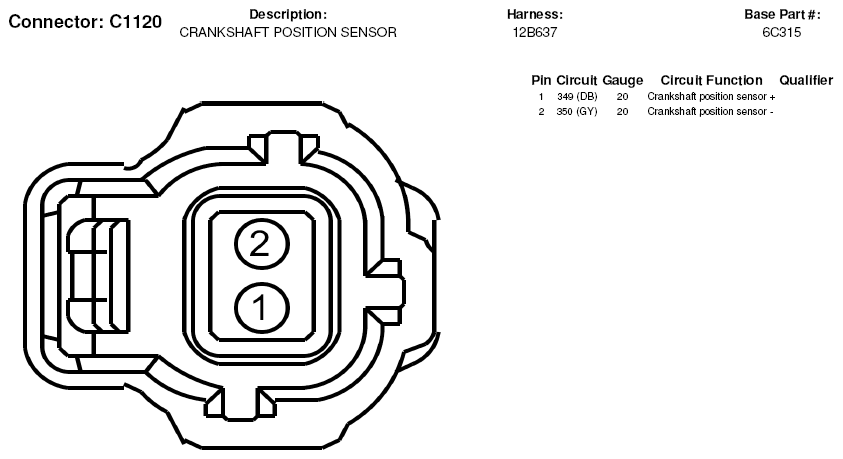

Fig 2: Crankshaft Position Sensor Connector End View (C1120)
G05181317Courtesy of FORD MOTOR CO.
