Clockspring Connectors

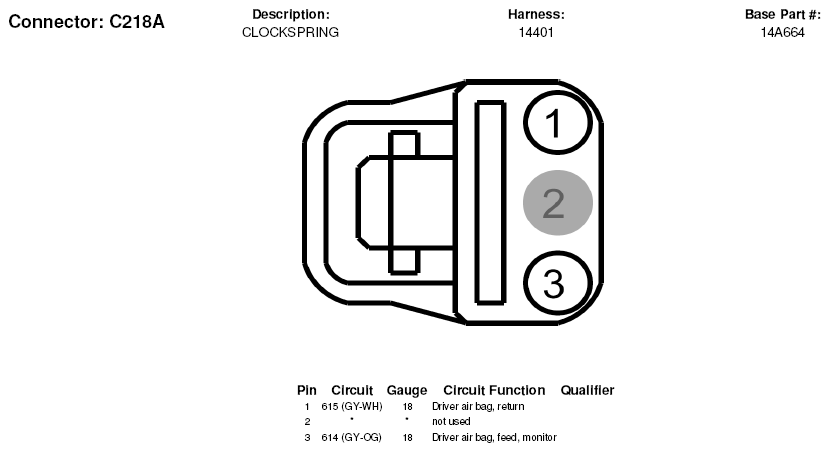

Fig 1: Clockspring Connector End View (C218A)
Courtesy of FORD MOTOR CO.

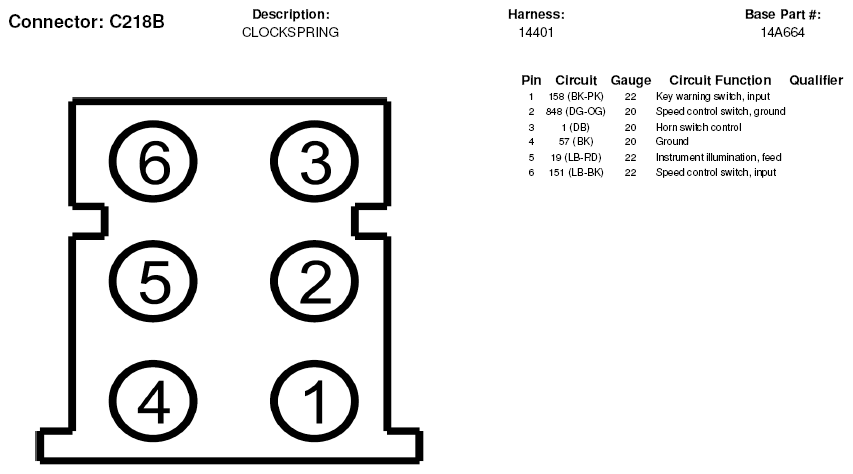

Fig 2: Clockspring Connector End View (C218B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
