Camshaft Position Sensor Connector

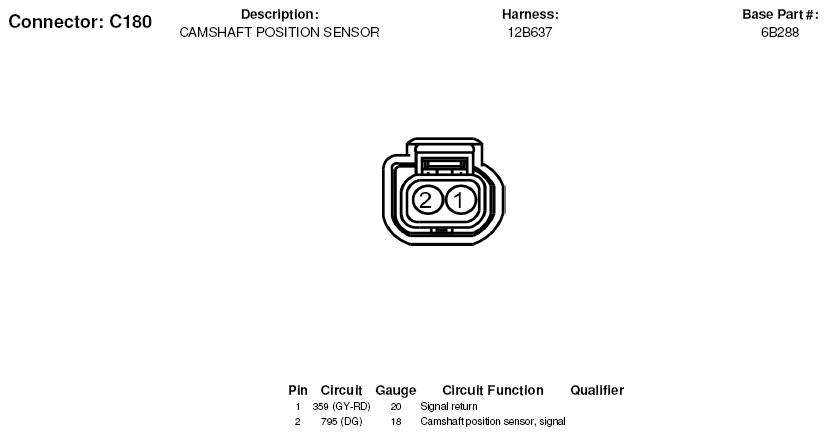

Fig 1: Camshaft Position Sensor Connector End View (C180)
G05181171Courtesy of FORD MOTOR CO.

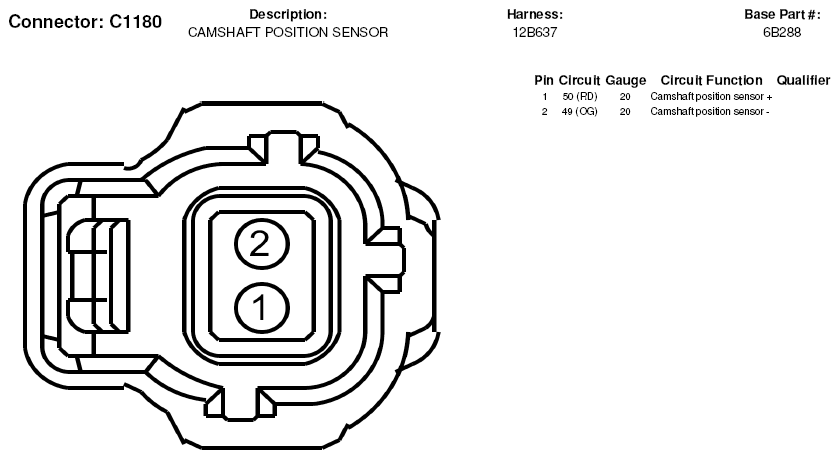

Fig 2: Camshaft Position Sensor Connector End View (C1180)
G05181322Courtesy of FORD MOTOR CO.
