Battery Connectors

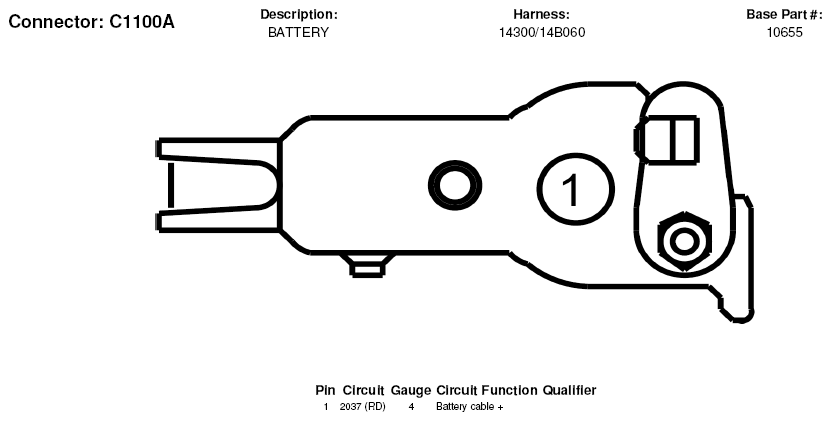

Fig 1: Battery Connector End View (C1100A)
G05181310Courtesy of FORD MOTOR CO.

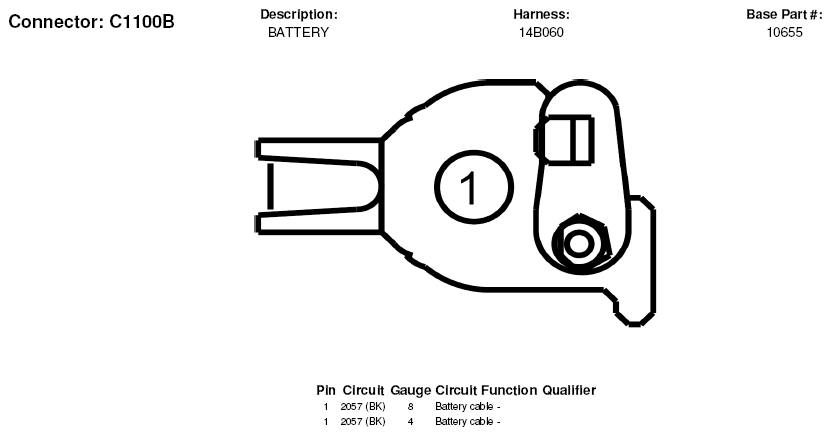

Fig 2: Battery Connector End View (C1100B)
G05181311Courtesy of FORD MOTOR CO.

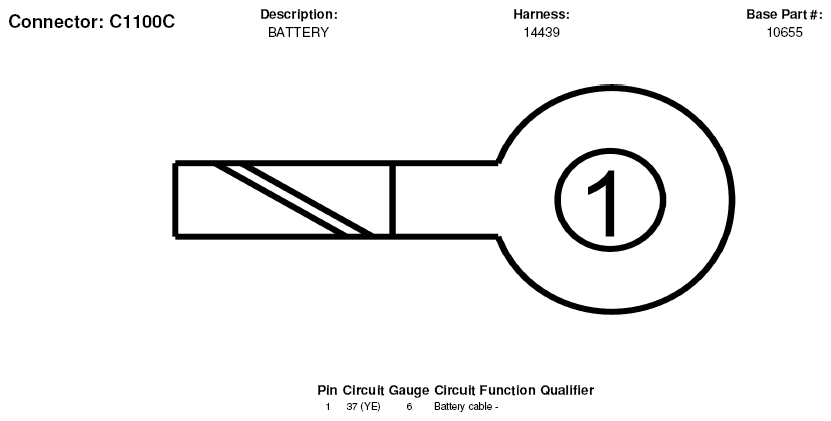

Fig 3: Battery Connector End View (C1100C)
G05181312Courtesy of FORD MOTOR CO.
Fig 4: Battery Connector End View (C1100D)
G05181313Courtesy of FORD MOTOR CO.
